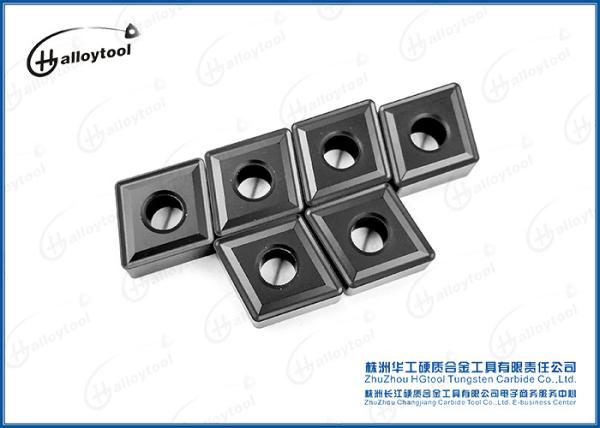

High Hardness Carbide Cutting Inserts / Tungsten Carbide Tools HRC92
High Hardness Carbide Cutting Inserts / Tungsten Carbide Tools HRC92
Specifications
Brand Name :
HGalloytool
Model Number :
CNMG160612
Certification :
ISO9001:2008
Place of Origin :
Hunan, China (Mainland)
MOQ :
negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
50000 Piece/Pieces per Month
Delivery Time :
20~30 Days after Your Order Confirmed
Packaging Details :
10 Pieces Per Plastic Box + Carton
Product Name :
Carbide Cutting Inserts
Hardness :
HRC92
Nose Radius :
R0.2-3.2mm
Feature :
High Hardness
Application :
stainless steel, Aluminum
Grade :
k05 k10 k15
Vc :
150-380m/min
Ap :
0.5-1.5mm
Description

High Hardness Carbide Cutting Inserts / Tungsten Carbide Tools HRC92​

Carbide Cutting Inserts Introduction:

  1. Virgin material of tungsten carbide
  2. High dens
  3. tungsten carbide inserts
  4. suitable to process stainless steel / Steel / Cast iron

Carbide Cutting Inserts Size Parameters

TYPE Dimension ( mm )
L I.C S d r
CNMA ( ISO ) ( ANSI )
090304 321 9.7 9.525 3.18 3.81 0.4
90308 322 9.7 9.525 3.18 3.81 0.8
120404 431 12.9 12.7 4.76 5.16 0.4
120408 432 12.9 12.7 4.76 5.16 0.8
160608 542 16.1 15.875 6.35 6.35 0.8
190612 643 19.3 19.05 6.35 7.94 1.2
TYPE Dimension ( mm )
L I.C S d r
CNMG ( ISO ) ( ANSI )
090304 321 9.7 9.525 3.18 3.81 0.4
90308 322 9.7 9.525 3.18 3.81 0.8
120404 431 12.9 12.7 4.76 5.16 0.4
120408 432 12.9 12.7 4.76 5.16 0.8
160608 542 16.1 15.875 6.35 6.35 0.8
190612 643 19.3 19.05 6.35 7.94 1.2
TYPE Dimension ( mm )
L I.C S d r
CNMM ( ISO ) ( ANSI )
090304 321 9.7 9.525 3.18 3.81 0.4
90308 322 9.7 9.525 3.18 3.81 0.8
120404 431 12.9 12.7 4.76 5.16 0.4
120408 432 12.9 12.7 4.76 5.16 0.8
160608 542 16.1 15.875 6.35 6.35 0.8
190612 643 19.3 19.05 6.35 7.94 1.2

Carbide Cutting Inserts Grade and Application

ISO Code Grade Physical and mechanical properties Applications recommended
Density g/cm3

Hardness

HRA(HV)

TRS

(Mpa)
K10 YG6X 14.8 91 1700 The finishing& semi-finishing of cast iron and nonferrous metals and also for the machining of manganese stell and hardening steel.
K15 YG6 14.9 89.5 1670 Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
K20 K30 14.6 89 1840 Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
M10 YW1 13 91 1290 Suitable for finishing and semi-finishing of stainless steel and conventional alloy steel
YW3 12.9 92 1390
YW4 12.3 92 1390
M20 YW2 13 90.5 1460 The grade can be used for the semi-finishing of stainless steel and low-alloy steel and it is mainly used for the maching of railway wheel hubs.

Carbide Cutting Inserts Application

CNC turning and milling tungsten carbide tool products are widely used in:

  • Aviation industry,
  • Defense industry,
  • Heavy industry and many other fields.

We can produce various types of tungsten carbide tool blades according to different custom drawings. We can provide a complete set of solutions for the processing field.

Q&A

Q1: Are you a factory or a trading company?

A: We are a factory. We have been focusing on Tungsten Carbide for over 20 years.

Q2:What is your principle for the samples?

A: We offer free samples if you are willing to pay the freight.

Q3:What is your delivery time?

A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 20 to 30 days when there is no stock.

Q4:Do you have any test reports or certificates?

A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.

Q5: Do you provide after-sale service?

A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement

Carbide Cutting Inserts Reference Drawing

High Hardness Carbide Cutting Inserts / Tungsten Carbide Tools HRC92
