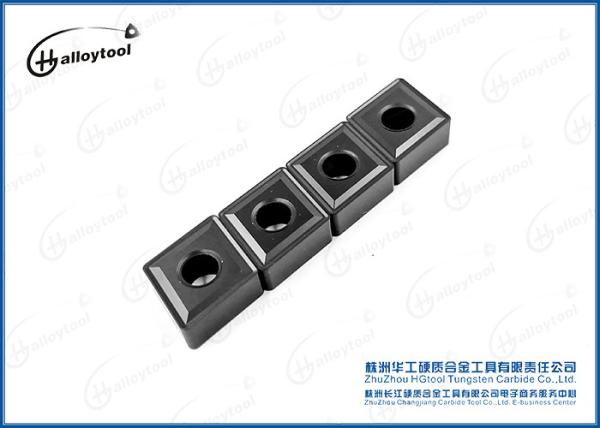

High Density Tungsten Carbide Inserts With CVD / PVD Coating R0.2-3.2mm
High Density Tungsten Carbide Inserts With CVD / PVD Coating R0.2-3.2mm
Specifications
Brand Name :
HGalloytool
Model Number :
CNMG160612
Certification :
ISO9001:2008
Place of Origin :
Hunan, China (Mainland)
MOQ :
negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
50000 Piece/Pieces per Month
Delivery Time :
20~30 Days after Your Order Confirmed
Packaging Details :
10 Pieces Per Plastic Box + Carton
Product Name :
Tungsten carbide Inserts
Feature :
High Density
Nose Radius :
R0.2-3.2mm
Coating :
CVD / PVD Coating
Application :
cast iron, stainless steel, Aluminum
Grade :
k05 k10 k15
Vc :
150-380m/min
Ap :
0.5-1.5mm
Description

High Density Tungsten Carbide Inserts With CVD / PVD Coating R0.2-3.2mm

Tungsten Carbide Inserts Introduction:

1. Cemented Carbide Insert
2. Virgin material of tungsten carbide
High density
Good wear-resistance
5. Accept trial order
Our carbide inserts sold very well in domestic market and Turkish, indian, South America market.
It is best quality, low price. We can satisfiy all customers' requirements.

Tungsten Carbide Inserts Size Parameters

TYPE Dimension ( mm )
L I.C S d r
CCMT ( ISO ) ( ANSI )
060202 21.50 6.4 6.35 2.38 2.8 0.2
060204 21.51 6.4 6.35 2.38 2.8 0.4
09T304 32.51 9.7 9.525 3.97 4.4 0.4
09T308 32.52 9.7 9.525 3.97 4.4 0.8
120404 431 12.9 12.7 4.76 5.5 0.4
120408 432 12.9 12.7 4.76 5.5 0.8
TYPE Dimension ( mm )
L I.C S d r
CNMG ( ISO ) ( ANSI )
090304 321 9.7 9.525 3.18 3.81 0.4
90308 322 9.7 9.525 3.18 3.81 0.8
120404 431 12.9 12.7 4.76 5.16 0.4
120408 432 12.9 12.7 4.76 5.16 0.8
160608 542 16.1 15.875 6.35 6.35 0.8
190612 643 19.3 19.05 6.35 7.94 1.2
TYPE Dimension ( mm )
L I.C S d r
CNMM ( ISO ) ( ANSI )
090304 321 9.7 9.525 3.18 3.81 0.4
90308 322 9.7 9.525 3.18 3.81 0.8
120404 431 12.9 12.7 4.76 5.16 0.4
120408 432 12.9 12.7 4.76 5.16 0.8
160608 542 16.1 15.875 6.35 6.35 0.8
190612 643 19.3 19.05 6.35 7.94 1.2

Tungsten Carbide Inserts Grade and Application

ISO Code Grade Physical and mechanical properties Applications recommended
Density g/cm3

Hardness

HRA(HV)

TRS

(Mpa)
K15 YG6 14.9 89.5 1670 Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
K20 K30 14.6 89 1840 Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
M20 YW2 13 90.5 1460 The grade can be used for the semi-finishing of stainless steel and low-alloy steel and it is mainly used for the maching of railway wheel hubs.

Q&A

Q1: Are you a factory or a trading company?

A: We are a factory. We have been focusing on Tungsten Carbide for over 20 years.

Q2:What is your principle for the samples?

A: We offer free samples if you are willing to pay the freight.

Q3:What is your delivery time?

A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 20 to 30 days when there is no stock.

Q4:Do you have any test reports or certificates?

A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.

Tungsten Carbide Inserts Reference Drawing

High Density Tungsten Carbide Inserts With CVD / PVD Coating R0.2-3.2mm
