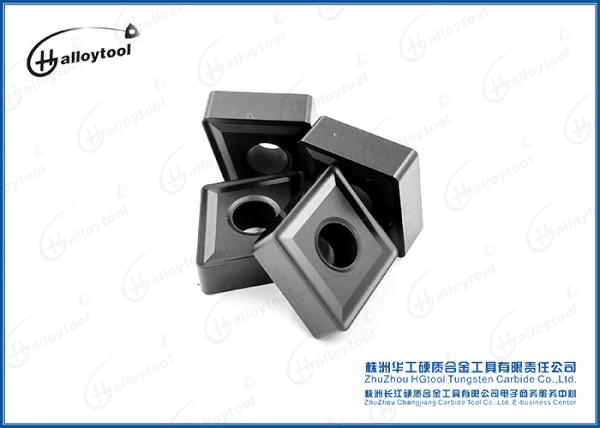

Lathe Machine Tungsten Carbide Cutting Tips / OEM Tungsten Cutting Tools
Lathe Machine Tungsten Carbide Cutting Tips / OEM Tungsten Cutting Tools
Specifications
Brand Name :
HGalloytool
Model Number :
CNMG160612
Certification :
ISO9001:2008
Place of Origin :
Hunan, China (Mainland)
MOQ :
negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
50000 Piece/Pieces per Month
Delivery Time :
20~30 Days after Your Order Confirmed
Packaging Details :
10 Pieces Per Plastic Box + Carton
Product Name :
Tungsten Carbide Cutting Tips
Hardness :
HRC92
Nose Radius :
R0.2-3.2mm
Coating :
CVD,PVD
Application :
Lathe Machine
Ap :
0.5-1.5mm
Description

Lathe Machine Tungsten Carbide Cutting Tips / OEM Tungsten Cutting Tools​

Tungsten Carbide Cutting Tips Introduction:

1. For steel/stainless steel/Aluminum processing
2. Excellent wear resistance and breakage resistance
3. Professional inspection and high precision
4. High precision, easy replacement, general use

Tungsten Carbide Cutting Tips Size Parameters

TYPE Dimension ( mm )
L I.C S d r
CCMT ( ISO ) ( ANSI )
060202 21.50 6.4 6.35 2.38 2.8 0.2
060204 21.51 6.4 6.35 2.38 2.8 0.4
09T304 32.51 9.7 9.525 3.97 4.4 0.4
09T308 32.52 9.7 9.525 3.97 4.4 0.8
120404 431 12.9 12.7 4.76 5.5 0.4
120408 432 12.9 12.7 4.76 5.5 0.8
TYPE Dimension ( mm )
L I.C S d r
CNMG ( ISO ) ( ANSI )
090304 321 9.7 9.525 3.18 3.81 0.4
90308 322 9.7 9.525 3.18 3.81 0.8
120404 431 12.9 12.7 4.76 5.16 0.4
120408 432 12.9 12.7 4.76 5.16 0.8
160608 542 16.1 15.875 6.35 6.35 0.8
190612 643 19.3 19.05 6.35 7.94 1.2
TYPE Dimension ( mm )
L I.C S d r
CNMM ( ISO ) ( ANSI )
090304 321 9.7 9.525 3.18 3.81 0.4
90308 322 9.7 9.525 3.18 3.81 0.8
120404 431 12.9 12.7 4.76 5.16 0.4
120408 432 12.9 12.7 4.76 5.16 0.8
160608 542 16.1 15.875 6.35 6.35 0.8
190612 643 19.3 19.05 6.35 7.94 1.2

Tungsten Carbide Cutting Tips Grade and Application

ISO Code Grade Physical and mechanical properties Applications recommended
Density g/cm3

Hardness

HRA(HV)

TRS

(Mpa)
K05 YG3 15 90.5 1300 Suitable for finishing of cast iron and nonferrous metal.
K10 YG6X 14.8 91 1700 The finishing& semi-finishing of cast iron and nonferrous metals and also for the machining of manganese stell and hardening steel.
M10 YW1 13 91 1290 Suitable for finishing and semi-finishing of stainless steel and conventional alloy steel
YW3 12.9 92 1390
YW4 12.3 92 1390
M20 YW2 13 90.5 1460 The grade can be used for the semi-finishing of stainless steel and low-alloy steel and it is mainly used for the maching of railway wheel hubs.

Q&A

Q1: Are you a factory or a trading company?

A: We are a factory. We have been focusing on Tungsten Carbide for over 20 years.

Q2:What is your principle for the samples?

A: We offer free samples if you are willing to pay the freight.

Q3:What is your delivery time?

A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 20 to 30 days when there is no stock.

Q4:Do you have any test reports or certificates?

A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.

Q5: Do you provide after-sale service?

A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement

Q6: What should I do before contacting?

A: You can provide specific dimensions or drawings, and tell us the quantity of each item, and your application of this item. Other special requirements is also available.

Tungsten Carbide Cutting Tips Reference Drawing

Lathe Machine Tungsten Carbide Cutting Tips / OEM Tungsten Cutting Tools
