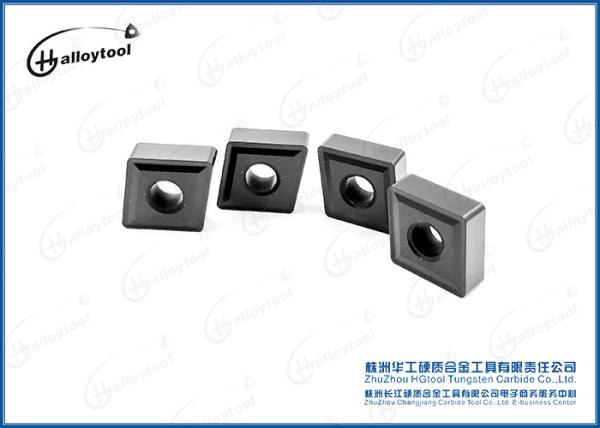

Wear Resistance Tungsten Carbide Inserts For Steel / Stainless Steel Processing
Wear Resistance Tungsten Carbide Inserts For Steel / Stainless Steel Processing
Specifications
Brand Name :
HGalloytool
Model Number :
CNMG160612
Certification :
ISO9001:2008
Place of Origin :
Hunan, China (Mainland)
MOQ :
negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
50000 Piece/Pieces per Month
Delivery Time :
20~30 Days after Your Order Confirmed
Packaging Details :
10 Pieces Per Plastic Box + Carton
Product Name :
Tungsten Carbide Inserts
Feature :
Wear Resistance
Nose Radius :
R0.2-3.2mm
Coating :
CVD,PVD
Application :
Steel / Stainless Steel Processing
Grade :
k10 k15
Vc :
150-380m/min
Ap :
0.5-1.5mm
Description

Wear Resistance Tungsten Carbide Inserts For Steel / Stainless Steel Processing

Tungsten Carbide Inserts Introduction:

1. Spray tower granulation

2. Automatic Electric press suppression

3. Full overpressure PVC sintering

4. Ultrasonic cleaning, high passivation accuracy

5. Imported coating equipment

Tungsten Carbide Inserts Size Parameters

TYPE Dimension ( mm )
L I.C S d r
CCMT ( ISO ) ( ANSI )
060202 21.50 6.4 6.35 2.38 2.8 0.2
060204 21.51 6.4 6.35 2.38 2.8 0.4
09T304 32.51 9.7 9.525 3.97 4.4 0.4
09T308 32.52 9.7 9.525 3.97 4.4 0.8
120404 431 12.9 12.7 4.76 5.5 0.4
120408 432 12.9 12.7 4.76 5.5 0.8
TYPE Dimension ( mm )
L I.C S d r
CNMA ( ISO ) ( ANSI )
090304 321 9.7 9.525 3.18 3.81 0.4
90308 322 9.7 9.525 3.18 3.81 0.8
120404 431 12.9 12.7 4.76 5.16 0.4
120408 432 12.9 12.7 4.76 5.16 0.8
160608 542 16.1 15.875 6.35 6.35 0.8
190612 643 19.3 19.05 6.35 7.94 1.2
TYPE Dimension ( mm )
L I.C S d r
CNMM ( ISO ) ( ANSI )
090304 321 9.7 9.525 3.18 3.81 0.4
90308 322 9.7 9.525 3.18 3.81 0.8
120404 431 12.9 12.7 4.76 5.16 0.4
120408 432 12.9 12.7 4.76 5.16 0.8
160608 542 16.1 15.875 6.35 6.35 0.8
190612 643 19.3 19.05 6.35 7.94 1.2

Tungsten Carbide Inserts Grade and Application

ISO Code Grade Physical and mechanical properties Applications recommended
Density g/cm3

Hardness

HRA(HV)

TRS

(Mpa)
K05 YG3 15 90.5 1300 Suitable for finishing of cast iron and nonferrous metal.
K10 YG6X 14.8 91 1700 The finishing& semi-finishing of cast iron and nonferrous metals and also for the machining of manganese stell and hardening steel.
K15 YG6 14.9 89.5 1670 Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
K20 K30 14.6 89 1840 Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.

Tungsten Carbide Inserts Application

  • Aviation industry,
  • Defense industry,
  • Heavy industry and many other fields.
  • Steel / Stainless Steel Processing

Tungsten Carbide Inserts Reference Drawing

Wear Resistance Tungsten Carbide Inserts For Steel / Stainless Steel Processing
