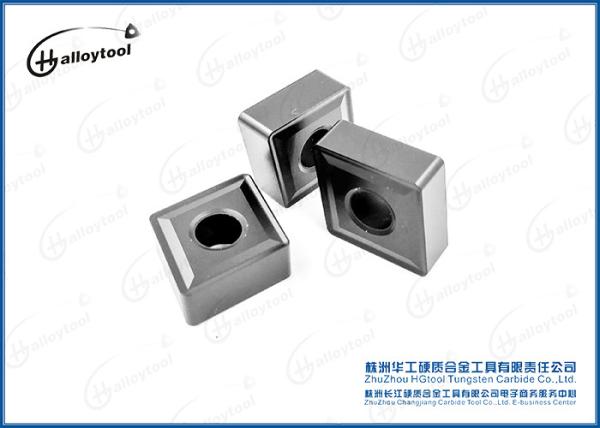

Semifinishing Steel Tungsten Carbide Inserts With Breakage Resistance
Semifinishing Steel Tungsten Carbide Inserts With Breakage Resistance
Specifications
Brand Name :
HGalloytool
Model Number :
CNMG160612
Certification :
ISO9001:2008
Place of Origin :
Hunan, China (Mainland)
MOQ :
negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
50000 Piece/Pieces per Month
Delivery Time :
20~30 Days after Your Order Confirmed
Packaging Details :
10 Pieces Per Plastic Box + Carton
Product Name :
Tungsten Carbide Inserts
Feature :
Breakage Resistance
Nose Radius :
R0.2-3.2mm
Coating :
CVD,PVD
Application :
Semifinishing Steel
Grade :
k05 k10 k15
Vc :
150-380m/min
Ap :
0.5-1.5mm
Description

Semifinishing Steel Tungsten Carbide Inserts With Breakage Resistance

Tungsten Carbide Inserts Main Features

1) Cutting more workpieces in unit work shift

2) Competitive on unit cost

3) High accurancy. Precise cutting your workpiece

Tungsten Carbide Inserts Size Parameters

TYPE Dimension ( mm )
L I.C S d r
CCMT ( ISO ) ( ANSI )
060202 21.50 6.4 6.35 2.38 2.8 0.2
060204 21.51 6.4 6.35 2.38 2.8 0.4
09T304 32.51 9.7 9.525 3.97 4.4 0.4
09T308 32.52 9.7 9.525 3.97 4.4 0.8
120404 431 12.9 12.7 4.76 5.5 0.4
120408 432 12.9 12.7 4.76 5.5 0.8
TYPE Dimension ( mm )
L I.C S d r
CNMG ( ISO ) ( ANSI )
090304 321 9.7 9.525 3.18 3.81 0.4
90308 322 9.7 9.525 3.18 3.81 0.8
120404 431 12.9 12.7 4.76 5.16 0.4
120408 432 12.9 12.7 4.76 5.16 0.8
160608 542 16.1 15.875 6.35 6.35 0.8
190612 643 19.3 19.05 6.35 7.94 1.2
TYPE Dimension ( mm )
L I.C S d r
CNMM ( ISO ) ( ANSI )
090304 321 9.7 9.525 3.18 3.81 0.4
90308 322 9.7 9.525 3.18 3.81 0.8
120404 431 12.9 12.7 4.76 5.16 0.4
120408 432 12.9 12.7 4.76 5.16 0.8
160608 542 16.1 15.875 6.35 6.35 0.8
190612 643 19.3 19.05 6.35 7.94 1.2

Tungsten Carbide Inserts Grade and Application

ISO Code Grade Physical and mechanical properties Applications recommended
Density g/cm3

Hardness

HRA(HV)

TRS

(Mpa)
K05 YG3 15 90.5 1300 Suitable for finishing of cast iron and nonferrous metal.
K10 YG6X 14.8 91 1700 The finishing& semi-finishing of cast iron and nonferrous metals and also for the machining of manganese stell and hardening steel.
K15 YG6 14.9 89.5 1670 Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.

Q&A

Q1: Are you a factory or a trading company?

A: We are a factory. We have been focusing on Tungsten Carbide for over 20 years.

Q2:What is your principle for the samples?

A: We offer free samples if you are willing to pay the freight.

Q3:What is your delivery time?

A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 20 to 30 days when there is no stock.

Q4:Do you have any test reports or certificates?

A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.

Q5: Do you provide after-sale service?

A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement

Q6: What should I do before contacting?

A: You can provide specific dimensions or drawings, and tell us the quantity of each item, and your application of this item. Other special requirements is also available.

Tungsten Carbide Inserts Reference Drawing
