Finishing Surface Tungsten Carbide Wire Drawing Dies Cold Heading Dies Blank With Sink
Finishing Surface Tungsten Carbide Wire Drawing Dies Cold Heading Dies Blank With Sink
Finishing Surface Tungsten Carbide Wire Drawing Dies Cold Heading Dies Blank With Sink
Finishing Surface Tungsten Carbide Wire Drawing Dies Cold Heading Dies Blank With Sink
Finishing Surface Tungsten Carbide Wire Drawing Dies Cold Heading Dies Blank With Sink
Finishing Surface Tungsten Carbide Wire Drawing Dies Cold Heading Dies Blank With Sink
Specifications
Brand Name :
HGalloytool
Model Number :
BC
Certification :
ISO9001:2008
Place of Origin :
Hunan, China (Mainland)
MOQ :
5 kg
Payment Terms :
L/C, T/T
Supply Ability :
30000 Kilograms per month
Delivery Time :
20~30 Days
Packaging Details :
Boxes Inside and Cartons Outside
Product Name :
Tungsten Carbide Cold Heading Dies
Material :
100% Virgin Tungsten Carbide
Mould material :
Stainless
Application :
Cold heading
Grade :
YG6X YG6 YG8
Shaping Mode :
Extrusion Mould
Color :
Silvery gray
Description

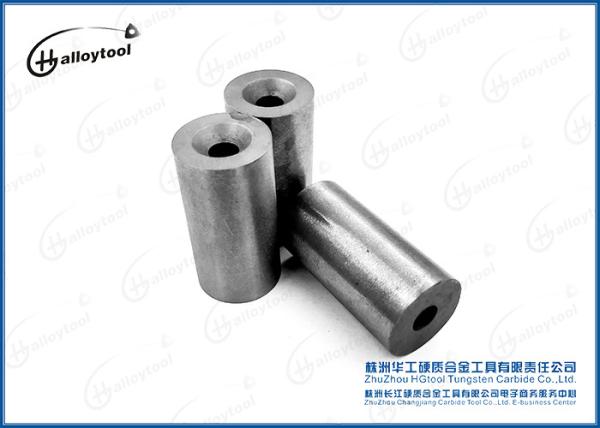

Finishing Surface Tungsten carbide cold heading dies blank with sink

Product Description

In the industry of standard parts, tungsten carbide cold heading die needs to bear a large unit pressure in the process of cold upsetting deformation. When the deformation degree is large and the material hardness is large, the unit pressure can reach more than 2000MPa.

At the same time, metal flows violently, so tungsten carbide cold heading die is required to have high strength, high hardness and good fatigue resistance, so as to ensure that the cold upsetting die does not fracture, deformation and wear resistance under high pressure.The raw material of tungsten carbide cold heading die is made of powder metallurgy composite material.

Using hard alloy to manufacture standard tungsten carbide cold heading die not only has high dimension precision of parts, but also greatly improves the service life of cold heading die, and can create good economic and social benefits.

Grade and Applications

In the standard tungsten carbide cold heading process, the tungsten carbide cold heading die needs to bear a big impact. In order to meet the requirements, the tungsten carbide must be used with high cobalt content, high strength and good toughness.Such as YG15, YG20, YG20C, YG22C, HJ80.1 (GT55).

Here is a list for more detail application according to different grade:

Grades Wc% Co% Density T.R.S Hardness Performance & application recommended
g/cm3 MPa HRA
YG11 89% 11% 14.4 2600 88.5 Forming or stamping dies for metal powders and nonmetal powders.
YG15 85% 15% 14 2800 87.5 For fabricating drawing dies of steel tubes and rods under high compressibility ratio; punching, stamping, forging tools under large stress.
YG20 80% 20% 13.5 3200 85.5 For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jays, small sized steel balls, screws, screw caps.
YG16C 84% 16% 13.9 2900 85.5 Impact resistance forging dies.
YG18C 82% 18% 13.7 3100 84.5 Impact resistance forging dies, hot-press forging dies and rollers.
YG20C 80% 20% 13.5 3300 83 Dies for wear resistant or impact resistant application.
YG22C 78% 22% 13.3 3500 82.5 Nut forming dies and high impact resistance forging dies.
YG25C 75% 25% 13.1 3600 82 Stainless bolt header dies and rollers.
HJ80.1 75% 25% 13.05 3800 83.2 It is suitable for screw cap forming dies with high strength (highest impact-resistant forging dies).

Company Video

Packaging & Delivery

Packing Details:

Boxes Inside and Cartons Outside

Port:

Guangzhou/Shanghai/Shenzhen/Dalian etc.

Delivery Details:

Generally it is 5-7 days if the goods are in stock.

Or it is 20-30 days if the goods are not in stock, it is according to quantity.

Finishing Surface Tungsten Carbide Wire Drawing Dies Cold Heading Dies Blank With Sink

Reference Drawing

Finishing Surface Tungsten Carbide Wire Drawing Dies Cold Heading Dies Blank With Sink

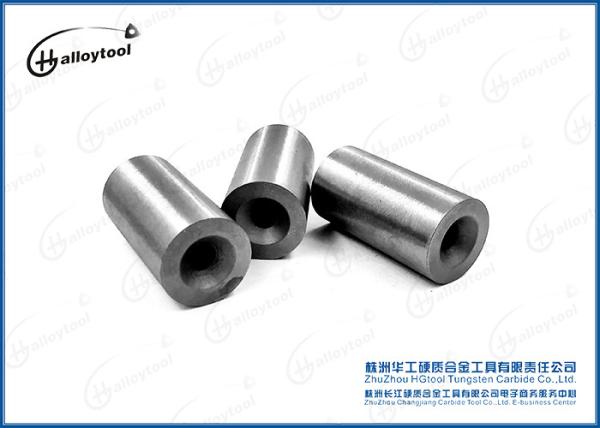

Product show

Finishing Surface Tungsten Carbide Wire Drawing Dies Cold Heading Dies Blank With Sink
