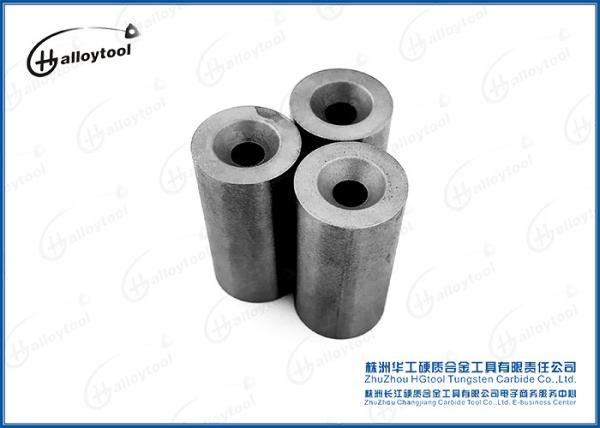

Type BC And BF Internal Hexagonal Tungsten Carbide Cold Heading Dies Blank
Type BC And BF Internal Hexagonal Tungsten Carbide Cold Heading Dies Blank
Type BC And BF Internal Hexagonal Tungsten Carbide Cold Heading Dies Blank
Type BC And BF Internal Hexagonal Tungsten Carbide Cold Heading Dies Blank
Type BC And BF Internal Hexagonal Tungsten Carbide Cold Heading Dies Blank
Type BC And BF Internal Hexagonal Tungsten Carbide Cold Heading Dies Blank
Specifications
Brand Name :
HGalloytool
Model Number :
BC BF
Certification :
ISO9001:2008
Place of Origin :
Hunan, China (Mainland)
MOQ :
5 kg
Payment Terms :
L/C, T/T
Supply Ability :
30000 Kilograms per month
Delivery Time :
15~30 Days
Packaging Details :
Boxes Inside and Cartons Outside
Product Name :
Tungsten Carbide Cold Heading Dies
Material :
100% Virgin Tungsten Carbide
Mould material :
Stainless
Application :
Cold heading
Grade :
YG20C YG11C
Shaping Mode :
Extrusion Mould
Color :
Silvery gray
Description

Type BC and BF internal hexagonal Tungsten carbide cold heading dies blank

Product Description

In the industry of standard parts, tungsten carbide cold heading die needs to bear a large unit pressure in the process of cold upsetting deformation. When the deformation degree is large and the material hardness is large, the unit pressure can reach more than 2000MPa.

At the same time, metal flows violently, so tungsten carbide cold heading die is required to have high strength, high hardness and good fatigue resistance, so as to ensure that the cold upsetting die does not fracture, deformation and wear resistance under high pressure.The raw material of tungsten carbide cold heading die is made of powder metallurgy composite material.

Using hard alloy to manufacture standard tungsten carbide cold heading die not only has high dimension precision of parts, but also greatly improves the service life of cold heading die, and can create good economic and social benefits.

Grade and Applications

Here is a list for more detail application according to different grade:

ISO Code Grade Density
g/cm³		 Hardness
HRA		 TRS
N/mm²		 Particle Size Application
K20 YG4C 15 89.5 1600 coarse Suitable for making geological prospecting drill bits and mining inserts of light-duty electrical drill bits for drilling soft rock,coal formations and frill bits for drilling un-silicated rock formations
K20 JK05 15 90.2 2500 coarse Mainly used for making medium and small sized cemented carbide buttons of tricone bits and other drilling bits for drilling soft&medium hard rock formations, also used for making carbide inserts of other dril bits
K20 YK05 14.9 90.1 2600 coarse
K20 YK06 14.9 91 2450 middle
K30 YG8C 14.75 89 2000 coarse Mainly used for making cemented carbide buttons of tricone bits and other drilling bits for drilling medium hard & hard rock formations , also used for making carbide inserts of other dril bits
K30 YK08 14.7 89 2400 coarse
K30 YK09 14.5 88 2600 coarse
K40 YK10 14.45 88.5 2600 middle Suitable for carbide inserts of heavy-duty rock drilling tools for drilling hard and super hard rock formations , also used for making tricone bits and other dril bits
K40 YK20 14.4 87 2700 coarse
K40 YK25 14.45 87 2700 coarse
K40 YG11C 14.4 87.8 2700 coarse With super toughness and corresponding wear resistace, suitable for carbide inserts of heavy-duty rock drilling bools and DTH drilling bits for drilling hard and super hard rock formations,also used for other cemented carbde buttons bits
K40 YG13C 14.2 86 2600 coarse

Company Video

Packaging & Delivery

Packing Details:

Boxes Inside and Cartons Outside

Port:

Guangzhou/Shanghai/Shenzhen/Dalian etc.

Delivery Details:

Generally it is 5-7 days if the goods are in stock.

Or it is 20-30 days if the goods are not in stock, it is according to quantity.

Reference Drawing

Type BC And BF Internal Hexagonal Tungsten Carbide Cold Heading Dies Blank

Product show

Type BC And BF Internal Hexagonal Tungsten Carbide Cold Heading Dies Blank
