Specifications
Brand Name :
HGalloytool
Model Number :
CNMG160612
Certification :
ISO9001:2008
Place of Origin :
Hunan,China(Mainland)
MOQ :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
50000 Piece/Pieces per Month
Delivery Time :
20~30 Days after Your Order Confirmed
Packaging Details :
10 Pieces Per Plastic Box + Carton
Product Name :
Tungsten Carbide Cutting Tips
Material :
Tungsten Carbide
Application :
Semifinishing Steel
Features :
High Hardness
AP :
0.5-1.5mm
VC :
150-380m/min
Description

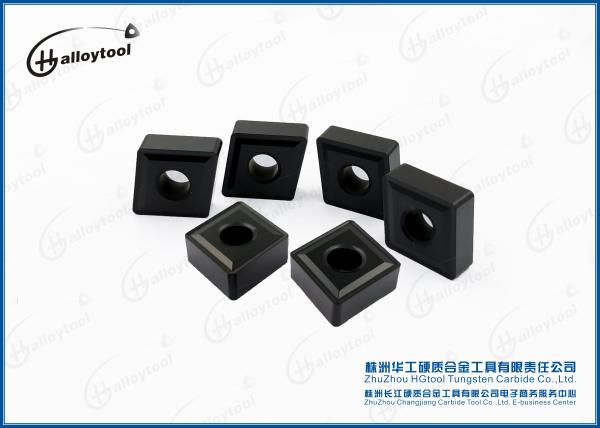

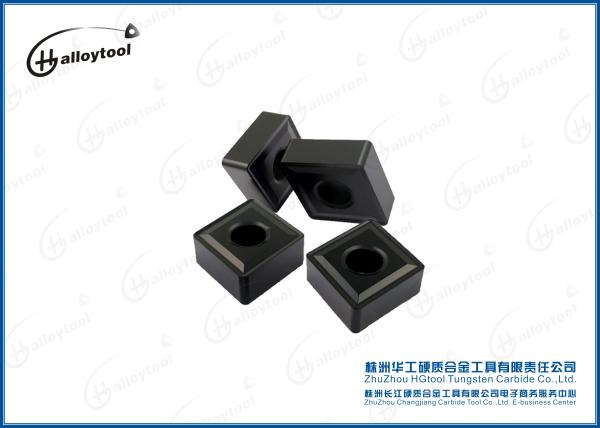

High Hardness Tungsten Carbide Cutting Tips For Semifinishing Steel

Product Description

1. The new coating combines perfectly with the carbide substrate

2. High edge strength

3. Fitting for semi-finishing and roughing of carbon steel, alloy steel and cast iron.

4. Cutting more workpieces in unit work shift

5. Competitive on unit cost

6. High accurancy. Precise cutting your workpiece

Specification

ISO Code

Grade

Physical and mechanical properties

Density g/cm3

Hardness

HRA(HV)

TRS

(Mpa)

K05

YG3

15

90.5

1300

K10

YG6X

14.8

91

1700

K15

YG6

14.9

89.5

1670

K20

K30

14.6

89

1840

M10

YW1

13

91

1290

YW3

12.9

92

1390

YW4

12.3

92

1390

M20

YW2

13

90.5

1460

Application

1.K05: Suitable for finishing of cast iron and nonferrous metal.

2.K10: The finishing& semi-finishing of cast iron and nonferrous metals and also for the machining of manganese stell and hardening steel.

3.K15: Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.

4.K20: Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.

5.M10: Suitable for finishing and semi-finishing of stainless steel and conventional alloy steel

6.M20: The grade can be used for the semi-finishing of stainless steel and low-alloy steel and it is mainly used for the maching of railway wheel hubs.
