42510H10 Tungsten Carbide Indexable Inserts For Rough Processing Cutting Steel
42510H10 Tungsten Carbide Indexable Inserts For Rough Processing Cutting Steel
42510H10 Tungsten Carbide Indexable Inserts For Rough Processing Cutting Steel
42510H10 Tungsten Carbide Indexable Inserts For Rough Processing Cutting Steel
42510H10 Tungsten Carbide Indexable Inserts For Rough Processing Cutting Steel
42510H10 Tungsten Carbide Indexable Inserts For Rough Processing Cutting Steel
Specifications
Brand Name :
HGalloytool
Model Number :
42510H10
Certification :
ISO9001:2008
Place of Origin :
Hunan, China (Mainland)
MOQ :
5 kg
Payment Terms :
L/C, T/T, Ailpay
Delivery Time :
20~30 Days after Your Order Confirmed
Packaging Details :
Boxes Inside and Cartons Outside
Product Name :
Tungsten carbide Indexable Inserts
Material :
100% virgin tungsten carbide
ISO Grade :
K05, K10, K15, K20, M10, M20
Grade :
YT5
Color :
Gray
Description

42510H10 Tungsten Carbide Indexable Inserts For Rough Processing Cutting Steel

Grade and Applications

This grade is YT5, It is suitable for heavy cutting of steel and cast steel.

Common grades:

Grade Density (g/cm3) Hardness (HRA) TRS (Mpa)
YG8 14.6 89.0 1840
YT5 12.8

89.5

 1560
YT15 11.3 91.0 1300
YW2 12.9 90.5 1460
YC35 13.0 92.0 2100

Other special grades:

ISO Code Grade Physical and mechanical properties Applications recommended
Density g/cm3 Hardness HRA(HV)

TRS

Mpa
K05 YG3 15 90.5 1300 Suitable for finishing of cast iron and nonferrous metal.
K10 YG6X 14.8 91 1560 The finishing& semi-finishing of cast iron and nonferrous metals and also for the machining of manganese steel and hardening steel.
YG6A 14.7 91.5 1510
K15 YG6 14.9 89.5 1670 Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel.
M05-10 YS8 13.9 92.5 1720 It can be used for the finishing of iron based and nickel based high-temperature alloys and high-strength steel and it can also be used for the finishing of chilled cast iron, heat resistant stainless steel, high maganese steel and bardened steel
M10 YW1 13 91 1290 Suitable for finishing and semi-finishing of stainless steel and conventional alloy steel
YW3 12.9 92 1390
YW4 12.3 92 1390
M20 YW2 12.9 90.5 1460 The grade can be used for the semi-finishing of stainless steel and low-alloy steel and it is mainly used for the machining of railway wheel hubs.
P10 YT05 12.6 92.5 1260 Suitable for the finishing and semi-finishing if steel and cast steel with a moderate feed rate and a rather high cutting speed.
YT15 11.3 91 1300
P20 YS14 11.4 91.5 1550 Suitable for the finishing and semi-finishing of steel and cast steel. YS25 is specially used for the milling of steel and cast steel.
YT14 11.4 90.5 1400
YS25 13 90.5 1780
P30 YC30S 12.9 90.5 1600 used for the milling of steel, cast steel and alloy steel

Packing & Delivery

Packing Details : Packing, solid bicycle saddle, 50pcs/carton

Delivery Details : 3-30 days after order of Solid bicycle tire tubes

We guarantee:

1. Special logistics packaging

2. Suitable carton size

3. Shock bubble film

Reference Drawing

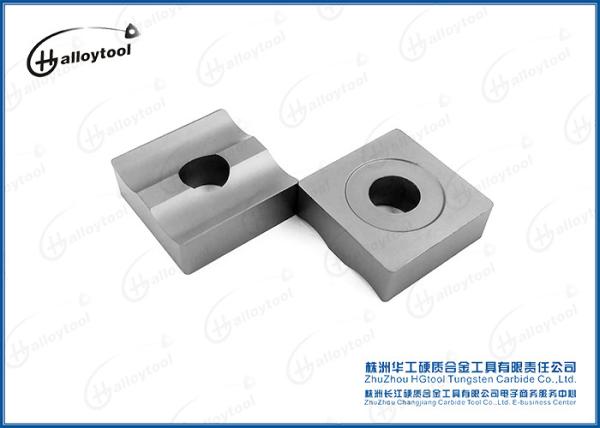

42510H10 Tungsten Carbide Indexable Inserts For Rough Processing Cutting Steel

Products show

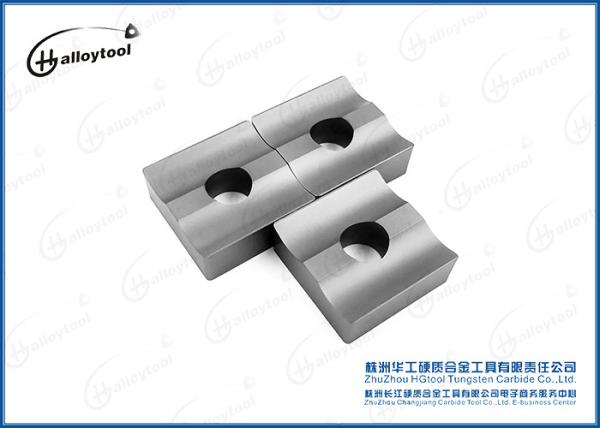

42510H10 Tungsten Carbide Indexable Inserts For Rough Processing Cutting Steel
