100 Virgin Tungsten Carbide Drawing Dies For Drawing Non - Ferrous Metal Tubes
100 Virgin Tungsten Carbide Drawing Dies For Drawing Non - Ferrous Metal Tubes
100 Virgin Tungsten Carbide Drawing Dies For Drawing Non - Ferrous Metal Tubes
100 Virgin Tungsten Carbide Drawing Dies For Drawing Non - Ferrous Metal Tubes
100 Virgin Tungsten Carbide Drawing Dies For Drawing Non - Ferrous Metal Tubes
100 Virgin Tungsten Carbide Drawing Dies For Drawing Non - Ferrous Metal Tubes
Specifications
Brand Name :
HGalloytool
Model Number :
22
Certification :
ISO9001:2008
Place of Origin :
Hunan, China (Mainland)
MOQ :
5 kg
Payment Terms :
L/C, T/T
Supply Ability :
30000 Kilograms per month
Delivery Time :
20~30 Days
Packaging Details :
Boxes Inside and Cartons Outside
Product Name :
Tungsten Carbide Drawing Dies
Material :
100% Virgin Tungsten Carbide
Mould material :
Stainless
Application :
Tubes Drawing
Type :
22
Grade :
YG6X YG6 YG8
Shaping Mode :
Extrusion Mould
Color :
Silvery gray
Description

100 Virgin Tungsten Carbide Drawing Dies For Drawing Non - Ferrous Metal Tubes

Product Description

Tungsten carbide dies can range in size from very small to very large.

Configurations:

  • Round Drawing Dies
  • Hexagon Drawing Dies
  • Square Drawing Dies
  • Rectangle Drawing Dies
  • Custom Shapes

Grade and Applications

1. Non-ferrous tubes, including copper, aluminium, electromagnetic and stainless tubes.

2. Platinum rhodium tube

3. Silver tube

4. Molybdenum, nickel, tined and so on non ferrous metal tubes.

Here is a list for more detail application according to different grade:

Tungsten carbide dies
Mold class performance of tungsten carbide grades and usage
Grade

Hardness

HRA

TRS

N/ mm²

 Density g/ cm³ Applications recommended
YG6X 92 1800 14.9 For drawing steel and nonferrous wires or bars of less than ¢6.00mm under not so much stress.
YG6 90.5 2000 14.9 For drawing steel, nonferrous alloy bars of less than ¢20.00mm under more stress and also for drawing tubes of less than ¢10.00mm.
YG8 90 2200 14.7 Can be used in steel, non-ferrous metal and alloy bars and pipes, also can be used in manufacturing machinery parts, tools and vulnerable parts.
YG8.2 89 2000 14.6
YG8L 89 2000 14.6
YG11 88.5 2300 14.4 It can be used for high compression steel rods and steel pope drawing, and the top hammer, perforation and stamping dies of working under greater stress.
YG16 87 2600 14.0
YL50 87 2600 14.4
YG20 85 2800 13.6 It can be used for stamping die, such as punching watch parts, stamping battery shell, tooth paste mould, small size steel ball, screw, nut, etc.
YG20C 83.5 2800 13.6 It can be used in standard parts, bearings, tools and other industries.
TL40.4 82 3000 13.3 It can be used in standard parts, bearings, tools and other industries for cold forging, cold pressing, cold pressing mould, warhead and shell stamping dies.

Our Services

1. We have rich experience in product design, production and application.According to the special needs of customers, to provide customers with reliable, economical, reasonable optimal solutions.

2. After product delivery, our staff will continue to track and investigate, collect customer comments and feedback, and help us better understand our products.

3. Free replacement of defective products.

4. We are willing to continuously learn and master advanced processing technology, improve technology, strengthen quality control, and provide customers with quality products and services.

Packaging & Delivery

Packing Details:

Boxes Inside and Cartons Outside

Port:

Guangzhou/Shanghai/Shenzhen/Dalian etc.

Delivery Details:

Generally it is 5-7 days if the goods are in stock.

Or it is 20-30 days if the goods are not in stock, it is according to quantity.

100 Virgin Tungsten Carbide Drawing Dies For Drawing Non - Ferrous Metal Tubes

Reference Drawing

100 Virgin Tungsten Carbide Drawing Dies For Drawing Non - Ferrous Metal Tubes

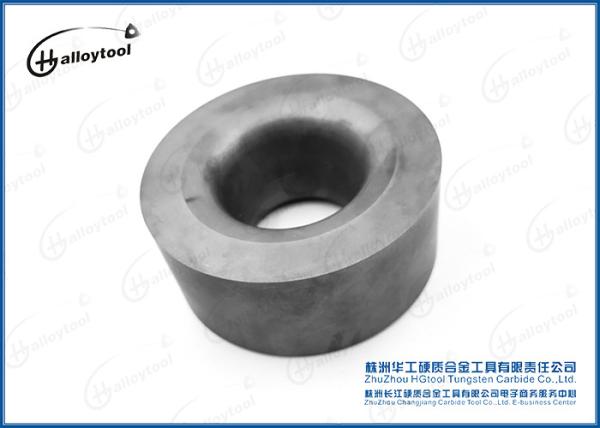

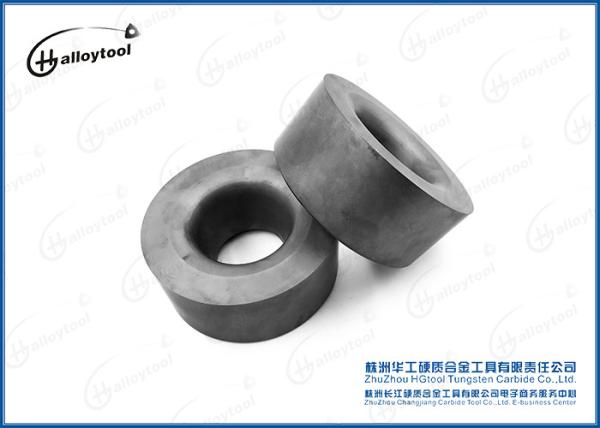

Product show

100 Virgin Tungsten Carbide Drawing Dies For Drawing Non - Ferrous Metal Tubes
