Water Well Carbide Button Inserts , Middle Size Cemented Carbide Buttons
Water Well Carbide Button Inserts , Middle Size Cemented Carbide Buttons
Water Well Carbide Button Inserts , Middle Size Cemented Carbide Buttons
Water Well Carbide Button Inserts , Middle Size Cemented Carbide Buttons
Water Well Carbide Button Inserts , Middle Size Cemented Carbide Buttons
Water Well Carbide Button Inserts , Middle Size Cemented Carbide Buttons
Water Well Carbide Button Inserts , Middle Size Cemented Carbide Buttons
Water Well Carbide Button Inserts , Middle Size Cemented Carbide Buttons
Specifications
Brand Name :
HGalloytool
Model Number :
SQ0915-F2
Certification :
ISO9001: 2008
Place of Origin :
Hunan, China (Mainland)
MOQ :
5 KG
Payment Terms :
L/C, T/T
Supply Ability :
20000 Kilogram per Month
Delivery Time :
20~30 Days after Your Order Confirmed
Packaging Details :
First PVC Box with Bubble bag, and Then Carton Boxes Outside, Or as per Customer's Request
Product Name :
Tungsten Carbide Buttons
Particle :
Middle
Grade :
YG8C YG9C YG11C Etc.
Material :
100% Virgin Tungsten Carbide
Application :
for Drilling, Mining
Surface :
Sand-blasting
Technology :
ATP Pressing + HIP Sintering
Description

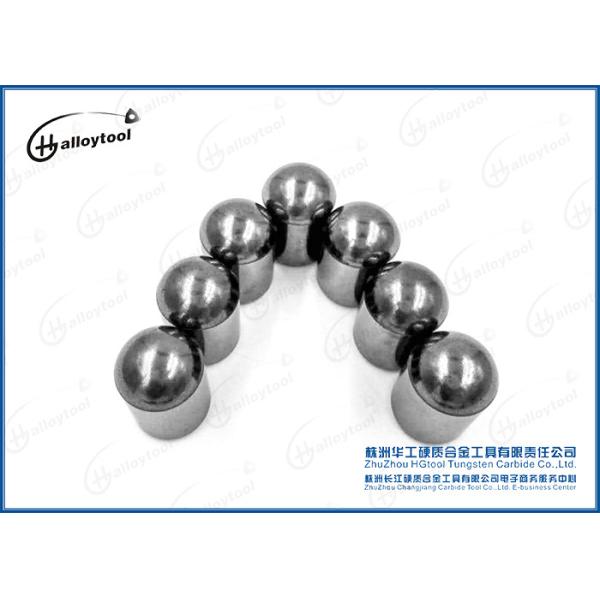

Tungsten Carbide Button for Mining, Water Well, Oil Drilling Bits

Product Description

As for spherical tungsten carbide buttons, below are the general features for your reference. For more details of specific type, please inform us.

1. Made of special and excellent raw material, have more stable properties, increase the yield of complete drilling and mining bit substantially;

2. Extra grain size available, have higher impact resistance and lower hot crack and breakage;

3. Ground and tumbled, ensuring uniform of dimension and surface smoothness, easier to mount;

4. HIP sintered, increase the strength substantially therefore extend service time; full range of types and specifications are available.

Popular grade and applications as follows for your reference:

Grade

Hardness

HRA

TRS

N/ mm²

Density

g/ cm³

 Applications recommended
YK06 90 2200 14.9 It is mainly used for medium or small hard alloy ball teeth, insert the cone drilling and impact drill, and get into the soft and medium hard rock.
JK05 89.5 2400 14.8
JK10 89 2200 14.4 It can be used for geological exploration and drilling tools and coal mining can be used as soft rock, coal seam and non-silicified rock drilling tools.
YG8C 88.5 2500 14.7
YG9C 87.5 2600 14.5
YG11C 87 2600 14.4 It is suitable for drilling tools.
YK20 86.5 2600 14.4
YK25 87 2600 14.4
YG13C 86 2800 14.2 Suitable for hard alloy coal cutting teeth, turning teeth, tunneling, drilling in hard rock and hard rock.
YK30 86.5 2800 14.35
YK40 86 2800 14.35
YG11CN 88 2500 14.4 With high hardness and wear resistance, it is suitable for snow and snow shovel snow.
ZS10 87 2800 14.35 High strength, good toughness and wear resistance is a bit poor, is suitable for crushing a diameter of less than 50 mm hard sandstone, quartzite, tightly silicide dolomite, silicide quartzite, iron ore, diorite, granite, sandstone, basalt stones, pebbles, tec.
ZS20 88 2600 14.45 The hardness and wear-resisting are generally applicable to the crushing diameter of less than 45mm metamorphic sandstone, granite porphyry, granite, common limestone, granite porphyry, open-pit granite, dolomite, magnetite and so on.
ZS30 89 2500 14.6 High hardness, good abrasion resistance, suitable for hard and hard granite with crushing diameter less than 40mm, amphibolite, siliceous slate, copper pyrite, marble, sandstone, etc.
ZS40 90 2400 14.7 High hardness, good wear resistance, suitable for crushing diameter less than 40mm limestone, sandstone, sandy shale, poor iron ore, silicified clay sandstone, etc.

Index

Water Well Carbide Button Inserts , Middle Size Cemented Carbide Buttons

Referance Drawings

Water Well Carbide Button Inserts , Middle Size Cemented Carbide Buttons

Packing & Delivery

Packing Details: Carton and plywood case are suitable for international delivery (air and sea transportation).

Delivery Details: Generally it is 5-7days if the tungsten carbide buttons are in stock. Or it is 20-30 days if the tungsten carbide buttons are not in stock, it is according to quantity.

Free Samples

Free tungsten carbide button samples are available for you to do test.
