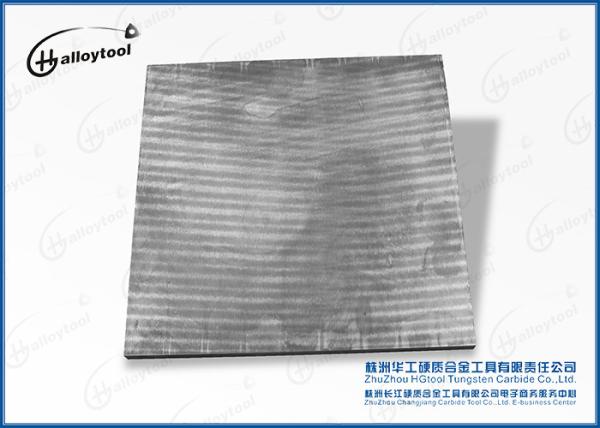

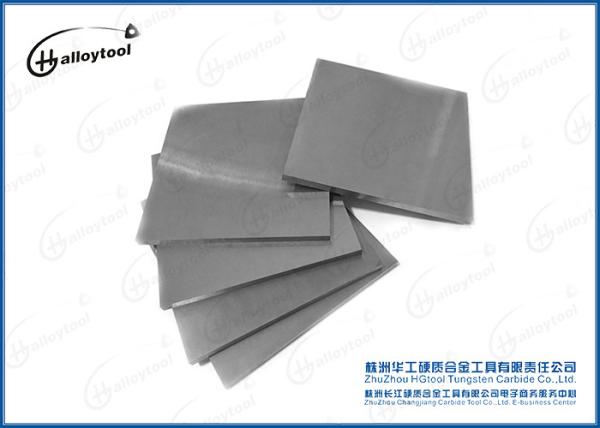

105*105 Tungsten Carbide Armor Plate , Durable Tungsten Carbide Wear Plates
105*105 Tungsten Carbide Armor Plate , Durable Tungsten Carbide Wear Plates
105*105 Tungsten Carbide Armor Plate , Durable Tungsten Carbide Wear Plates
105*105 Tungsten Carbide Armor Plate , Durable Tungsten Carbide Wear Plates
Specifications
Brand Name :
Hgalloytool
Model Number :
All
Certification :
ISO9001:2008; GB/T19001-2008
Place of Origin :
Hunan, China (Mainland)
MOQ :
5
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 tons per month
Delivery Time :
20~30 days after your order comfirmation
Packaging Details :
Plastic boxes inside and cartons outside
Commodity Name :
Tungsten Carbide Products
Material :
100% Virgin Tungsten Carbide
Application :
Small inserts, cutting tips, wear parts
Size :
Customized
Grade :
YG6 YG8 YG10X YG15 YG20 etc.
Usage :
Cutting tools, woodworking, metal working
Surface :
Rough Grinding
Advantage :
Durable/Competitive
Type :
Power Tool Parts
Description

105*105 Tungsten Carbide Durable Plate for Making Small Inserts

Description:

Tungsten Carbide plate is one of the tungsten steel materials which uses metallurgical methods through milling, ball milling, pressing, sintering. Different uses in WC and Co of tungsten carbide plates is different. Tungsten carbide plate has high hardness, good wear resistance, high elastic modulus, high strength, good chemical stability(stable for acid, base, high temperature oxidation), lower impact toughness, low expansion coefficient, thermal conductivity, conductive characteristics of similar to iron and its alloy.

Recommandations:

YG6:It can be used for steel wire, non-ferrous metal and alloy bars under 20mm diameter with greater stress condition, and can also be used to pull tubing with a diameter of less than 10mm.

YG8:It can be use in steel, non-ferrous metal and alloy bars and pipes, and also for manufacturing machinery parts, tools and vulnerable parts.

YG15:It can be used for high compression steel rod and steel tube drawing, working top hammer, perforation and stamping die under greater stress.

YG20:It can be used to make punching film tools, such as punching watch parts, stamping battery shell, tooth paste mould, small size steel ball, screw, nut, etc.

Hard alloy brand performance and recommendation of wear resistant materials:

Grade

Hardness
HRA

TRS
N/mm²

Density
g/cm³

Recommended Applications

YG6X

92

1800

14.9

It can be used for the steel wire, non-ferrous metal wire or rod die under the condition of less stress.

YG6

90.5

2000

14.9

It can be used for steel wire, non-ferrous metal and alloy bars under 20mm diameter with greater stress condition, and can also be used to pull tubing with a diameter of less than 10mm.

YG8

90

2200

14.7

It can be use in steel, non-ferrous metal and alloy bars and pipes, and also for manufacturing machinery parts, tools and vulnerable parts.

YG8.2

89

2000

14.6

YG8L

89

2000

14.6

YG11

88.5

2600

14.4

It can be used for high compression steel rod and steel tube drawing, working top hammer, perforation and stamping die under greater stress.

YG15

87

2600

14

YL50

87

2600

14.4

YG20

85

2800

13.6

It can be used to make punching film tools, such as punching watch parts, stamping battery shell, tooth paste mould, small size steel ball, screw, nut, etc.

YG20C

83.5

2800

13.6

It can be used for cold forging, cold pressing, cold pressing mould in standard parts, bearing, tool industries, etc., and is also useful in warhead and shell staming die.

TL40.5

82

2800

13.3

YB50

90.5

2600

14

It has high hardness and strength, excellent wear resistance, which can be used in the production of IC wireframe, plastic sealing film, drawing die, nozzle, ultra-thin blade, etc.

YB20

92

2200

14.5

It has high hardness, high strength and superior wear-resisting property, which is suitable for low, medium-speed electronic class progressive die and punch and for copper and aluminum thin sheet stamping.

105*105 Tungsten Carbide Armor Plate , Durable Tungsten Carbide Wear Plates

105*105 Tungsten Carbide Armor Plate , Durable Tungsten Carbide Wear Plates

Notice: Level of surface grinding can be adjusted according to customer demand. (Default: Rough grinding) If you require accurate surface grinding, please contact us.
