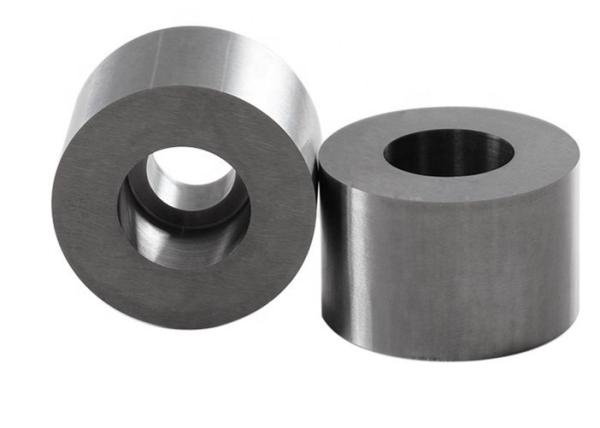

Cemented Tungsten Carbide Wear Parts Oil Field Use Tungsten Carbide Sleeve
Cemented Tungsten Carbide Wear Parts Oil Field Use Tungsten Carbide Sleeve
Cemented Tungsten Carbide Wear Parts Oil Field Use Tungsten Carbide Sleeve
Cemented Tungsten Carbide Wear Parts Oil Field Use Tungsten Carbide Sleeve
Cemented Tungsten Carbide Wear Parts Oil Field Use Tungsten Carbide Sleeve
Cemented Tungsten Carbide Wear Parts Oil Field Use Tungsten Carbide Sleeve
Specifications
Brand Name :
zhenfang
Model Number :
ZF-TCB026
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KG
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
20tons/month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Dimension :
customized
Material :
tungsten carbide (WC+CO)
Features :
high abrasive resistance and corrosion resistance
Usage :
protection parts for bearing
Application :
Various pump in petroleum industry
Surface :
high grinding
Certificate :
ISO9001:2015
Grade :
YG8/YG6/YN8/YN9.....
Description

Corrosion Resistance Carbide Wear Parts, Solid Carbide Sleeve For Oil Field

Products Information

1. we manufactured with 100%virgin WC+CO

2. Specification: OD110*ID 70*40mm We can manufacture Various size

3. Grade: YN6 (6% Ni, can according to clients'requirement)

4. Hardness: HRA90.5 Tougness: 2100N/mm2 Our products hardness can reach HRA92.5 Max

5. Surface: based on your requirement. we can reach mirror surface Ra0.4

Some grade for tungten carbide sleeve for reference

Grade

Density

(g/cm3)

 Hardness(HRA)

Toughness

(N=mm2)

 Chemical Composition
YG6 14.9 89.5 2150 Co 6%
YG8 14.6 89 2320 Co 8%
YN6 14.8~15 90.5 2100 Ni 6%
YN8 14.2 91 2300 Ni 8%
YN9 14.6~14.8 89.5 2200 Ni 9%
YN12 14.2~14.4 86.5 2250 Ni 12%

Introduction:

tugnsten carbide bushing made by virgin tungsten carbide material. It obtain high hardness and bending strength. It has superior performance on abrasion and corrosion resistance, which is widely used in many industries

For its widely usage. Tungsten carbide bushing are often made with high accuracy, and owing to their perfect finish, precise dimension, durability and corrosion resistance. These are highly appreciated by the clients at home and aboard.

In addition, as the various of application environment, There are several types of Tungsten carbide bushing. Most of the specifications are all customized.

Advantages:

(1). Abrasive resistant, corrosion free, good compression property, the most wear-resistant bushing, heat resistance, low maintenance ;

(2). The hardness is 10 times of gold, 5 times of tool steel, 4 times of titanium, oil resistance, separate the harmful medium;

(3). No shape change, no twist when temperature is above 1000 °C or below 500 °C, long service life, the maximum height can reach 270mm;

Application of tungsten carbide Bushing

Tungsten carbide bushing applications is wide, which is a device to protect important components. In actual working, it have a great relationship between the rule and application environment.

Valve applications as sealing parts :bushings be installed in the valve stem cap trap, in order to reduce the valve leakage, for sealing;

bearing applications as protecting parts:the use of bush to reduce wear between the bearing and the shaft seat, avoid the gap between the shaft and the hole increases and so on.

Tungsten carbide bushing production and processing of high-strength, can withstand prolonged load, with high chemical stability, alkali, alcohol,hydrocarbons, acid, oil, detergent, water (sea water), and has no smell , non-toxic, tasteless, non-rust characteristics, its widely used in petrochemical industry for Submerged Oil Pump, slurry pump, water pump, Centrifugal Pump,etc.
