Specifications
Brand Name :
zhenfang
Model Number :
ZF-TCR0892
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou,China
MOQ :
5KGS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10 tons per month
Delivery Time :
3-15 days
Packaging Details :
standard packing suitable for overseas shipment: outside carton or plywood case with inner plastic box packing
Products Name :
Solid carbide round bar
Grade :
K20，K30, K40
Size :
Dia6/8/10/15....*40/50/90mm OEM accepted
Material :
100% virgin tungsten carbide
Certificate :
ISO9001:2015
Application :
mould
Advantage :
good toughness and wear resistance
length :
customized , max 500mm
Shape :
round
Type :
power tool parts
Hardness :
HRA86-90
Service :
OEM ODM
Description

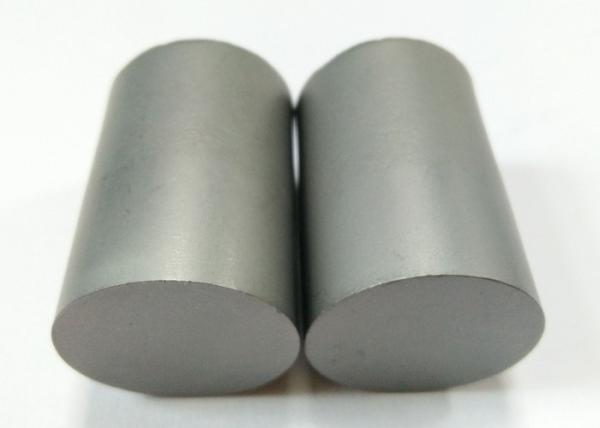

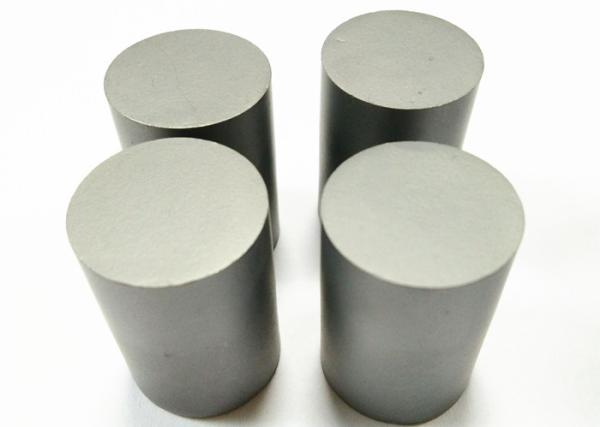

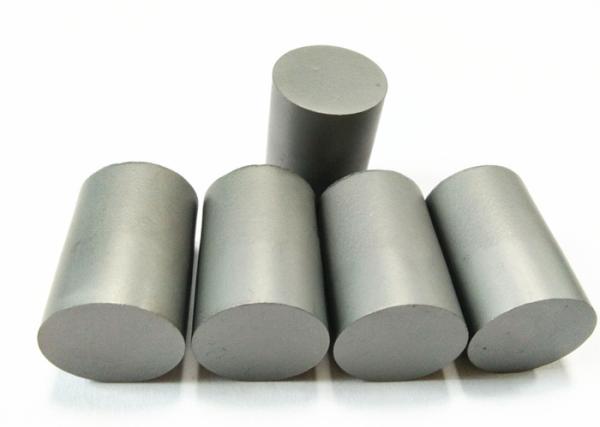

Mould / Die Application Short Solid Carbide Rods With Good Toughness

Introduction

Material:

 100% virgin WC+Co

Grade:

 YG15( 15% Co)

Properties:

 High Hardness and toughness

Grain Size:

 0.8-1.2μm

Hardness:

 HRA86.5

Dimension

 Dia15*60mm (various size for Choosing)

Surface:

 Blank

Application:

 Carbide Mould

Production Process:

 Powder Preparing-Pressing-HIP sintering-processing-finishing

Some grade information for carbide Dies

Grade
Desity (g/cm3)
Hardness (HRA)
T.R.S
(MPa)
Grain Size
(μm)
Composition(%)
ISO
YL10.2
14.4-14.6
>92
4000
0.6-0.8
10%Co 90%WC
K25-K35
YG8
14.65-14.85
>89.5
2320
0.8-1.2
8%Co 92%WC
K20
YG6
14.85-15
>90
2150
0.8-1.2
6%Co 94%WC
K10
YG15
14.1
>86.5
2400
0.8-1.2
15%Co 85%WC
K30
YG20 13.7 >85 2500 0.8-1.2 20%Co 80%WC
YG20C 13.7 >82 2200 1.2 20%Co 80%WC

Other grade and dimension are also available for choosing based your specific application. We have stock for some size.

Standard size list for reference

Size range(DiaXL mm)
Tolerance
D(blank, mm)
D (ground, mm)
L(mm)
Dia(1-5)xL30-330mm
+0.3/+0.4
h6/h7
0/+2
Dia(6-20)xL30-330mm
+0.3/+0.6
h6/h7
0/+2
Dia(21-40)xL30-330mm
+0.5/1.0
h6/h7
0/+3

We can cut to any length based on your requirement

Other type tungsten carbide round bar

1. tungsten carbide blank rod

2. tugnsten carbide rod with one small single hole

3. ground tungsten carbide rod

4. fixed tungsten carbide rod

5. random length carbide rod

6. custom non standard carbide rod

Application Are

1. Cutting tools for machining: Milling cutter,

2. Mining: drill bits, reamer

3. stamping mould sand measuring tools

4. Sports Usage: Trekking poles, Car, motorcycle and bicycle tires with tungsten carbide studs

5. Surgical instruments: drills, pins

Our Advantages:

1. Professional manufacturer for tungsten carbide rod with more than 10 years' experience.
2. Using100% virgin raw material guaranteed products quality
3. Advanced production equipment/test equipment (With HIP sintering)
4. compititive price and fast delivery
5. products with high performance:high wear-resistance ,toughness and corrosion resistance
6. customization is avaliable

7. Perfect quality control systerm: ISO9001:2015

8. We have professional technician team and sales team, giving you professional suggestion
