Tungsten Carbide Wear Parts Rectangular Blanks / Cemeneted Carbide Rod Bar Plate Strip
Tungsten Carbide Wear Parts Rectangular Blanks / Cemeneted Carbide Rod Bar Plate Strip
Tungsten Carbide Wear Parts Rectangular Blanks / Cemeneted Carbide Rod Bar Plate Strip
Tungsten Carbide Wear Parts Rectangular Blanks / Cemeneted Carbide Rod Bar Plate Strip
Tungsten Carbide Wear Parts Rectangular Blanks / Cemeneted Carbide Rod Bar Plate Strip
Tungsten Carbide Wear Parts Rectangular Blanks / Cemeneted Carbide Rod Bar Plate Strip
Specifications
Brand Name :
Zhenfang
Model Number :
ZF0240
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
100 pcs
Price :
USD45-58/KG
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000000 pcs/month
Delivery Time :
3-5 days
Packaging Details :
follow customer requirements
material :
100%virgin tugnsten carbide
surface :
blank or polished
Application :
cutting tool
grade :
YG6/YG8/ YG6X /YL10.2 etc
Chemical Composition :
Co-WC
advantage :
high wear resistance
Description

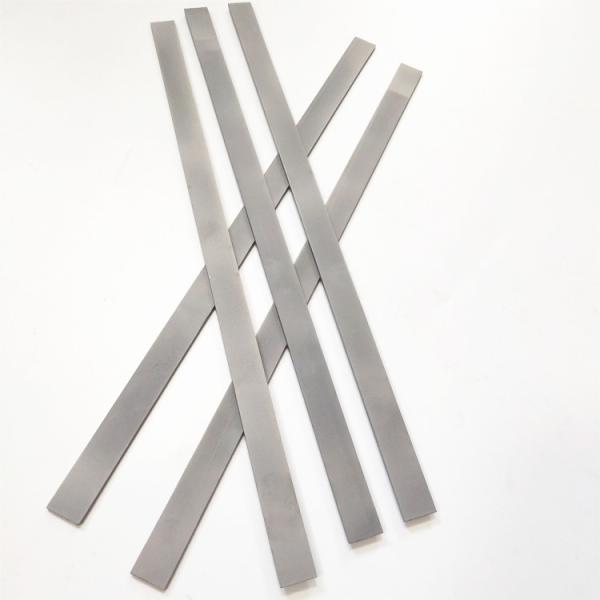

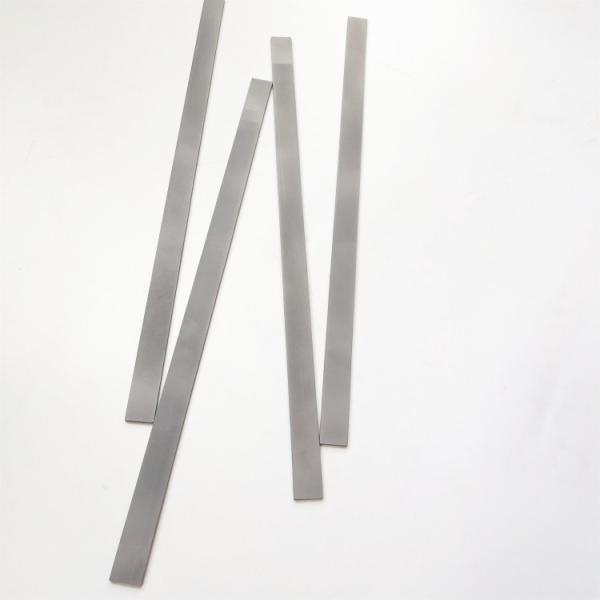

Tungsten carbide rectangular blanks/cemeneted carbide rod bar plate strip

Product Description

Tungsten carbide strip, also called cemented carbide strip, are made from 100% virgin raw materials. They’re square and rectangle shapes.

The carbide strips are used in wide application field. They’re very good material to produce the parts to resist high temperature & corrosion, also widely used as wear parts, shielding parts, mold core, insert, special shape punch and so on, for cutting cast iron, nonferrous metals, plastics, chemical fiber, stainless steel and high Manganese steel, etc.

Various grades and sizes can be chosen.

Features:

1. 100% virgin raw material

2. High hardness, excellent wear-resistance

3. High elastic modulus and compressive strength

4. Stable chemical properties

5. Blanks, precision grinded and polished

6. Various sizes and grades

7. Factory’s offer

8. Strict products quality inspection

Length(mm) Width(mm) Thickness(mm)
10-330 2-100 1.2-20
Cemented Tungsten carbide strips has many excellent characteristics such as high hardness and strength, good wear and corrosion resistance and salient stability under high temperature (even at 500 ºC it is essentially unchanged and at 1000 ºC it is still of high hardness).

Tungsten carbide strips are usually used for treating solid wood, shaving board and middle-density fiberboard,Also be used to make woodworking tools, such as forming tool, reamer, serrated knife blade and various blade,our strips meet the ISO 9001:2015 quality standard.
Application:
Mainly used in vertical shaft impact crusher (sand making machine), with high performance and high efficiency of sand making and shaping. A variety of crushing forms (stone-to-stone, stone-to-iron) to meet different crushing needs of users. Rotor with stone-stone structure-suitable for crushing sand for hard and extremely hard materials, and shaping various soft and hard materials.
It can adjust the level of stone powder content, which is suitable for the requirements of high stone powder content in grinding jade concrete, and the requirements of low stone powder content for ordinary concrete. The stone iron rotor is used-suitable for the crushing of materials below medium hardness, with high crushing efficiency, Features such as high sand production rate and easy adjustment of fineness modulus.

1. Adapt to different material crushing requirements of users. Such as: granite, basalt, limestone, quartzite, gneiss, cement
clinker, concrete aggregate, ceramic raw materials, iron ore, gold ore, copper ore, corundum, bauxite, silica, etc.
2. Compared with other materials, it has the advantages of good comprehensive performance, high reliability, strong wear
resistance, and low price!
3. The length of the alloy bar can be customized according to the specifications of the throwing head, and the service life of each pair of alloys can reach 40-70 hours.
Recommanded grades for your reference
Grade
ISO Range
Cobalt%
Density
g/cm3
Hardness
HRA
YG8
K30
8
14.8
89.5
YG6
K30
6
14.95
90.5
YG6X
K10
6
14.95
91.5
YL10.2
K30
10
14.5
91.8
YG15
K40
15
14
87.5

Our more Products
1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts
6. Tungsten Carbide Circular Blade
Our Packing and shipment:
Packing
Outside Carton or plywood case with inner plastic box.
Shipping
UPS,TNT,EMS,Fedex,DHL,or by sea,as you reques
Process and equipments

If have any more information, please feel free to contact with me.

Contact information

contact person: Ms Sharon Chen

mobile number +86 18173388506

email address: sharon@chinahardalloy.com

Website:www.wmcarbide.com
