Cast Tungsten Carbide W WC 2200HV0.1 High Hardness For PTA Materials
Cast Tungsten Carbide W WC 2200HV0.1 High Hardness For PTA Materials
Cast Tungsten Carbide W WC 2200HV0.1 High Hardness For PTA Materials
Cast Tungsten Carbide W WC 2200HV0.1 High Hardness For PTA Materials
Cast Tungsten Carbide W WC 2200HV0.1 High Hardness For PTA Materials
Cast Tungsten Carbide W WC 2200HV0.1 High Hardness For PTA Materials
Specifications
Brand Name :
BODA
Model Number :
BD-20101
Place of Origin :
China
MOQ :
50kg
Price :
US$45.0/kg-$47.0/kg EX-WORK
Payment Terms :
T/T
Supply Ability :
30-40 tons per month
Delivery Time :
5-8 working days
Packaging Details :
50kg per drum
Certification :
ISO9001:2015,ISO14001
Color :
dark grey
Shape :
irregular
Melting point :
2525℃
Hardness :
2100-2200HV0.1
Size :
40-60mesh，60-80mesh，70-100mesh，100-140mesh，140-200mesh，200-400mesh，100-270mesh，100-325mesh，-325mesh，-400mesh，60-325mesh
Chemicals :
Ct: 3.8-4.2% Fe 0.5% max Cf 0.05% max W Balanced
Description

Cast Tungsten Carbide High Hardness 2200HV0.1 High Wear Resistance As Drill Bits Materials PTA And Surface Coating

Chemical Composition:

Grade W

Ct

 Cf Ti Cr Ni Co V Fe
BD-20101 95-96 3.8-4.2 ≤0.05 ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.5

Specification & Particle Size:

Spec. Particle Size Spec. Particl Size
BD-20301-1 60-100mesh BD-20301-6 -325mesh
BD-20301-2 80-200mesh BD-20301-7 60-325mesh
BD-20301-3 100-230mesh
BD-20301-4 100-270mesh
BD-20301-5 200-325mesh

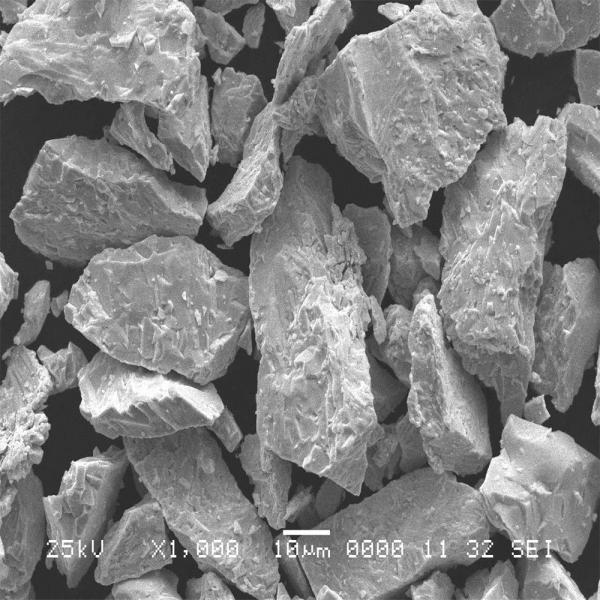

Cast Tungsten Carbide is made of W and WC by melted and broken ,it's irregular dark-gray particles,which has high melting point(2525℃),high hardness 2000-2200 HV0.1 and high wear resistance.

The products applied in the preparation of diamond drill bits materials ,PTA materials,coating materials and cemented carbide wear-resistant electrode(wire) etc ,which used in pre-reinforcement of wear-resistant surface or repairing worn surface of mining ,oil metallurgical industry,construction machinery,agricultural machinery and steel industries.

All the size for your demands from Coarse to fine .
