High-Precision Tungsten Carbide Punch Pins with Micron-Level Precision, Superior Impact Resistance, and Tailor-Made Geometry for Cold Heading
High-Precision Tungsten Carbide Punch Pins with Micron-Level Precision, Superior Impact Resistance, and Tailor-Made Geometry for Cold Heading
High-Precision Tungsten Carbide Punch Pins with Micron-Level Precision, Superior Impact Resistance, and Tailor-Made Geometry for Cold Heading

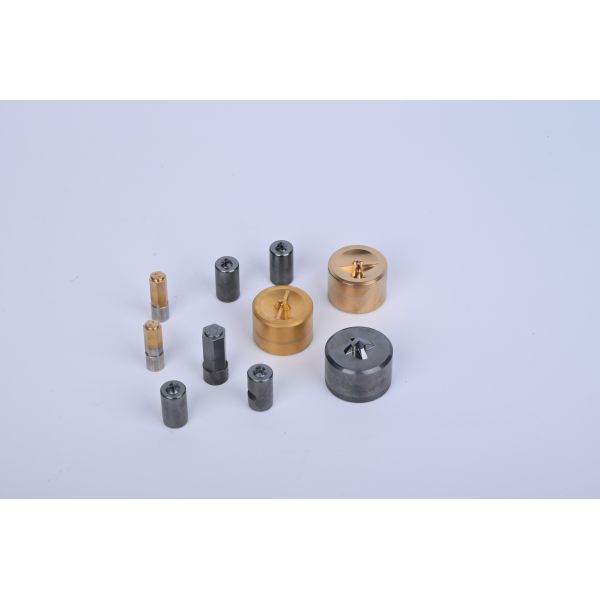

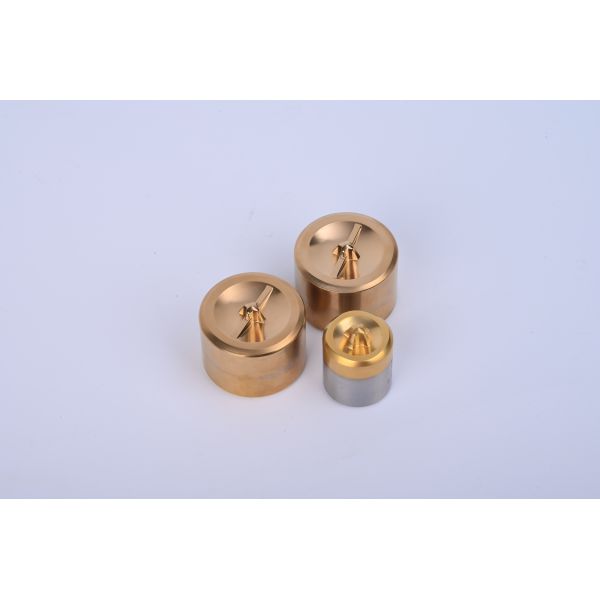

In the pursuit of extreme efficiency and precision within cold heading processes, tool durability directly dictates production costs. Henghui Precision offers custom-engineered Tungsten Carbide (Cemented Carbide) Cold Heading Punches and Special-Shaped Non-Standard Dies, specifically designed to withstand high-strength impact and complex geometries. By combining world-leading tungsten carbide grades with micron-level CNC machining, we provide the automotive, fastener, and aerospace industries with high-performance tooling built for an extended service life.
Key Features
  • Premium Material Grade: We offer a wide range of high-quality tungsten carbide grades tailored to your specific working conditions (considering pressure, impact force, and material ductility). This ensures the dies maintain exceptional dimensional stability even under extreme operational pressure.
  • Micron-Level Precision: Leveraging advanced CNC grinding and EDM (Electrical Discharge Machining) technologies, our non-standard special-shaped punches achieve stable tolerances within 0.01mm, making them ideal for the mass production of high-precision components.
  • Superior Impact Resistance: By optimizing the tungsten carbide grain size and cobalt content ratio, our punches possess excellent toughness, effectively preventing chipping and premature cracking during high-speed production.
  • Tailor-Made Geometry: We specialize in "non-standard" designs. Whether it is a multi-station special-shaped punch or a forming die with complex steps and concave features, we provide exact 1:1 replication based on your 2D/3D drawings (STEP, DXF, or PDF).
  • Advanced Surface Finish: We offer professional mirror polishing (Ra < 0.1) and optional PVD coatings (such as TiN, TiCN, and TiAlN). These treatments further reduce the friction coefficient, enhance de-molding efficiency, and can extend the tool's lifespan by 3 to 5 times.
Typical Applications
  • Automotive Industry: High-strength engine bolts, special-shaped pins, and steering system components.
  • Precision Fasteners: Non-standard socket head cap screws, Torx head bolts, and specialized stepped screws.
  • Electronics & Aerospace: High-precision, micro-sized cold heading components that require extremely strict material integrity.
Insert Material Options
We provide different carbide materials tailored for specific applications:
Item Co Grain Size Density Hardness TRS Impact Strength Application
Medium-Grained
KG2 6.50% 2~3 μm 14.90 g/cm² 90.5 HRA 320 Kgf/mm² 0.28 Kgf/m-cm² Drawing die
KG3 9% 2~3 μm 14.61 g/cm² 89.3 HRA 340 Kgf/mm² 0.52 Kgf/m-cm² Extrusion die
KG5 12% 2~3 μm 14.31 g/cm² 88.3 HRA 340 Kgf/mm² 0.58 Kgf/m-cm² Extrusion die
KG6 14% 2~3 μm 14.12 g/cm² 87.3 HRA 320 Kgf/mm² 0.65 Kgf/m-cm² Extrusion die
Coarse-Grained
ST6 15% 3~6 μm 13.80 g/cm² 86.0 HRA 270 Kgf/mm² 0.78 Kgf/m-cm² Stainless steel
ST7 20% 2~6 μm 13.40 g/cm² 85.3 HRA 270 Kgf/mm² 0.80 Kgf/m-cm² Stainless steel
EA65 18% 2~6 μm 13.73 g/cm² 85.0 HRA 300 Kgf/mm² 0.80 Kgf/m-cm² Carbon steel screw/cutting die
VA80 20% 3~6 μm 13.58 g/cm² 84.0 HRA 280 Kgf/mm² 0.85 Kgf/m-cm² Impact resistance
VA90 22% 6~9 μm 13.39 g/cm² 82.5 HRA 240 Kgf/mm² 0.90 Kgf/m-cm² Impact resistance
EA90 24% 2~6 μm 13.22 g/cm² 82.8 HRA 270 Kgf/mm² 0.90 Kgf/m-cm² Impact resistance
Case Material
Primary case material: H13(SKD61) HRC46-48
SKD61(H13) Chemical Composition
C Si Mn P S Cr Mo V W
0.39% 1.15% 0.44% 0.021% 0.007% 5.12% 1.3% 0.94% 0.06%
Cu Ni
0.05% 0.06%
Surface Treatment
Available options: TiN / TiAlN
High-Precision Tungsten Carbide Punch Pins with Micron-Level Precision, Superior Impact Resistance, and Tailor-Made Geometry for Cold Heading High-Precision Tungsten Carbide Punch Pins with Micron-Level Precision, Superior Impact Resistance, and Tailor-Made Geometry for Cold Heading High-Precision Tungsten Carbide Punch Pins with Micron-Level Precision, Superior Impact Resistance, and Tailor-Made Geometry for Cold Heading High-Precision Tungsten Carbide Punch Pins with Micron-Level Precision, Superior Impact Resistance, and Tailor-Made Geometry for Cold Heading High-Precision Tungsten Carbide Punch Pins with Micron-Level Precision, Superior Impact Resistance, and Tailor-Made Geometry for Cold Heading
About Chongqing Henghui Precision Mold Co., Ltd.

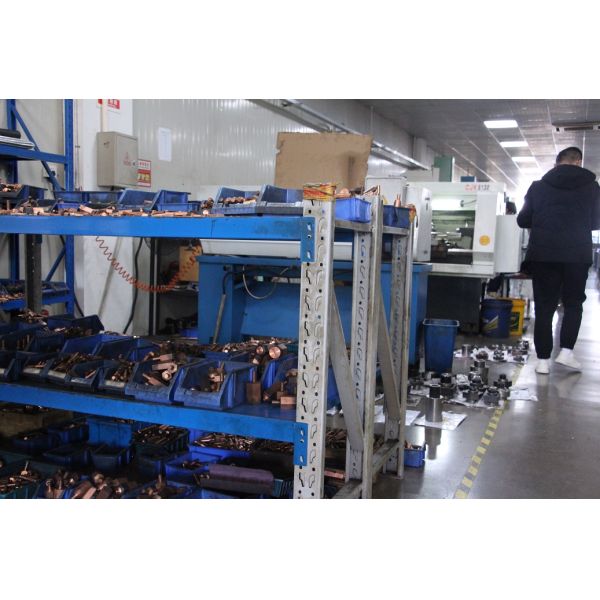

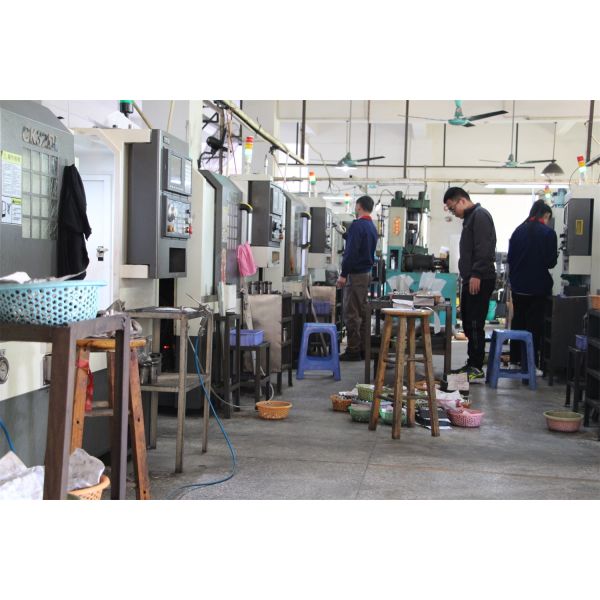

We specialize in manufacturing high-quality precision molds for cold heading and hot upsetting industries. Our facility includes CNC lathes, machining centers, grinding machines, EDM machines, and comprehensive testing equipment. We maintain strict quality control with precision standards of 0.005mm deviation and 0.01mm concentricity, operating under ISO9001:2015 certification.
Our products are exported globally to Southeast Asia, Europe, and the United States. We adhere to the principles of "Customer first, quality first, technology first, dedicated service."
High-Precision Tungsten Carbide Punch Pins with Micron-Level Precision, Superior Impact Resistance, and Tailor-Made Geometry for Cold Heading High-Precision Tungsten Carbide Punch Pins with Micron-Level Precision, Superior Impact Resistance, and Tailor-Made Geometry for Cold Heading High-Precision Tungsten Carbide Punch Pins with Micron-Level Precision, Superior Impact Resistance, and Tailor-Made Geometry for Cold Heading
Packaging & Delivery
Packaging: Carton Box; Export Standard Package, or customized per client requirements.
Delivery Time: 12-45 days depending on order quantity.
Frequently Asked Questions
Q1: How can I get a quotation from your company?
A1: Contact us with your drawings, material specifications, quantity requirements, and surface treatment preferences for a prompt quote.
Q2: What is your lead time?
A2: Lead time depends on product customization and destination country.
Q3: What is your minimum order quantity (MOQ)?
A3: MOQ varies by product. Contact our sales team for details.
Q4: What payment methods do you accept?
A4: We accept T/T, L/C, and PayPal.
Q5: What is your after-sales service like?
A5: We provide technical support, product repair, and replacement services.
Q6: How can I get your product catalog and quotation?
A6: Contact our sales team through our official channels for immediate assistance.
