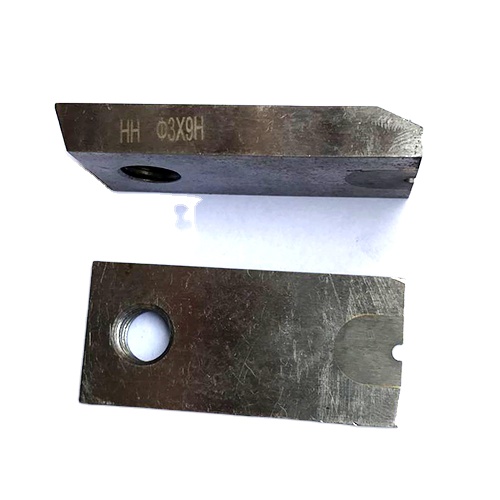

YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making
YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making
YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making
YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making
YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making
YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making
YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making
YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making
Specifications
Place of Origin :
Chongqing, China
Brand Name :
Henghui
Model Number :
OEM
Certification :
ISO 9001.2015
MOQ :
2
Shaping Mode :
Forging Mold
Product Material :
steel&carbide die
Tolerance :
+/-0.01mm
Size :
Customized
Design software :
CAD
Surface treatment :
Polishing
Carbide Material :
VA80
Case Material :
steel
Co Content :
20%
Grain Size :
3~6
Density :
13.58 g/cm²
Hardness :
84.0 HRA
TRS :
280 Kgf/mm²
Impact Strength :
0.85 Kgf/m-cm²
Case Hardness :
HRC46-48
Description
Products Description
YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making

Insert Material:

We can suggest different carbide material according to different usage.
Item
Co
Grain Size
Density
Hardness
TRS
Impact Strength
Application
Mediun-Grained
Co%
μm
g/cm²
HRA
Kgf/mm²
Kgf/m-cm²
KG2
6.50%
2~3
14.90
90.5
320
0.28
Drawing die
KG3
9%
2~3
14.61
89.3
340
0.52
Extrusion die
KG5
12%
2~3
14.31
88.3
340
0.58
Extrusion die
KG6
14%
2~3
14.12
87.3
320
0.65
Extrusion die
Coarse-Grained
ST6
15%
3~6
13.80
86.0
270
0.78
Stainless steel
ST7
20%
2~6
13.40
85.3
270
0.80
Stainless steel
EA65
18%
2~6
13.73
85.0
300
0.80
Carbon steel screw/cutting die
VA80
20%
3~6
13.58
84.0
280
0.85
Impact resistance
VA90
22%
6~9
13.39
82.5
240
0.90
Impact resistance
EA90
24%
2~6
13.22
82.8
270
0.90
Impact resistance

Case Material:

Our main case material is H13(SKD61) HRC46-48
SKD61(H13）
Chemical Composition
C
Si
Mn
P
S
Cr
Mo
V
W
Content (%)
0.39
1.15
0.44
0.021
0.007
5.12
1.3
0.94
0.06
Cu
Ni
0.05
0.06

Surface Treatment:

TiN / TiAlN
Inspection equipment
YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making
Company Profile

About Us

Chongqing Henghui Precision Mold Co., Ltd located in Chongqing, which is specialized in developing, production and sales of various tungsten carbide dies manufacturer. All our products are made from high-precision manufacturing equipment and testing equipment. Using advanced processing technology to ensure products’ precision. At the same time, we also have technical engineers with many years of professional design experience, a group of experienced technical and quality inspection personnel, implemented the ISO 9001 quality management system and ERP system management.
Our products and services cover the Asian market in China and are exported to Europe, America and Southeast Asia. Our carbide die have a reputation for precision, efficiency, stability and durability. We have a customer service experienced sales staff to provide customers with more attentive service and create more value.
YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making
YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making
YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making
YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making
YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making
YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making
YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making
Exhibition
YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making
Customer First
We have participated in Russia Exhibition, Mexico Exhibition, Turkey Exhibition, Shanghai Exhibition, German Fastener Exhibition, Indian Fastener exhibition and so on. We are committed to participating in various fastener screw exhibitions, and we have gained many new friends in the exhibitions. At the same time, we will visit our new and old customers offline
In each exhibition, we prepared various samples carefully and waited for the exhibition customers, who were satisfied with our products no matter in terms of design, price or quality.
