Polishing Tungsten Carbide Die Serrated Punching Dies For Bolt
Polishing Tungsten Carbide Die Serrated Punching Dies For Bolt
Polishing Tungsten Carbide Die Serrated Punching Dies For Bolt
Polishing Tungsten Carbide Die Serrated Punching Dies For Bolt
Polishing Tungsten Carbide Die Serrated Punching Dies For Bolt
Polishing Tungsten Carbide Die Serrated Punching Dies For Bolt
Polishing Tungsten Carbide Die Serrated Punching Dies For Bolt
Polishing Tungsten Carbide Die Serrated Punching Dies For Bolt
Polishing Tungsten Carbide Die Serrated Punching Dies For Bolt
Polishing Tungsten Carbide Die Serrated Punching Dies For Bolt
Polishing Tungsten Carbide Die Serrated Punching Dies For Bolt
Polishing Tungsten Carbide Die Serrated Punching Dies For Bolt
Specifications
Brand Name :
//
Model Number :
customized
Certification :
//
Place of Origin :
chongqing
MOQ :
1
Price :
USD+Negotioned+Pieces
Payment Terms :
T/T, Western Union
Supply Ability :
500 Piece/Pieces per Month
Delivery Time :
about 12days
Packaging Details :
carton, according to customer requirements.
Product material :
tungsten carbide,Steel
Product name :
tungsten carbide forging die
Application :
Mining,Extrusion Mold
Size :
Customer Size Accepted
Mould life :
According to your requirement
Surface treatment :
Polishing
Advantage :
High toughness & good wear resistance
Usage :
For cold heading and cold punching fasteners
Tooling machine :
EDM/Wire cutting/Grinding/Milling/QC/CNC
Whether it is matched :
Yes
Description

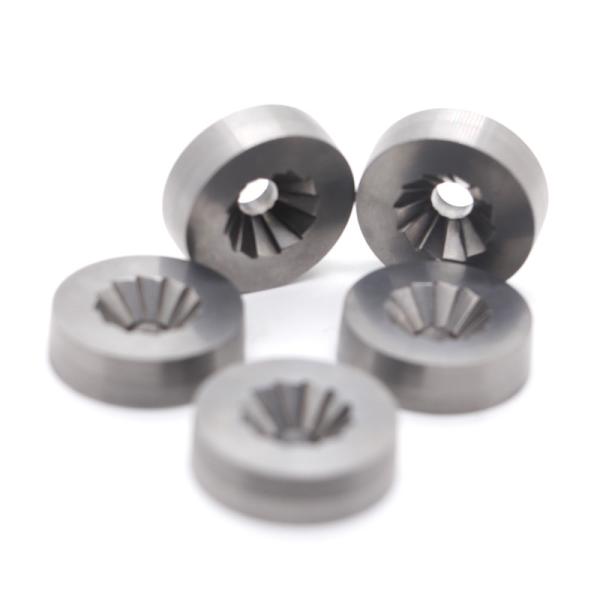

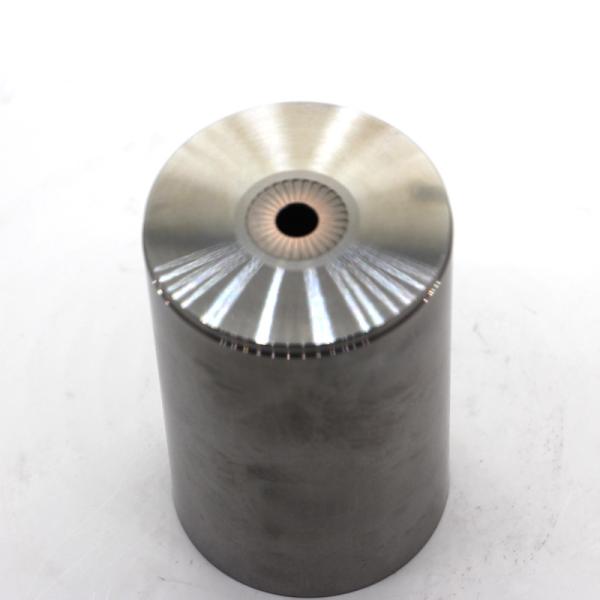

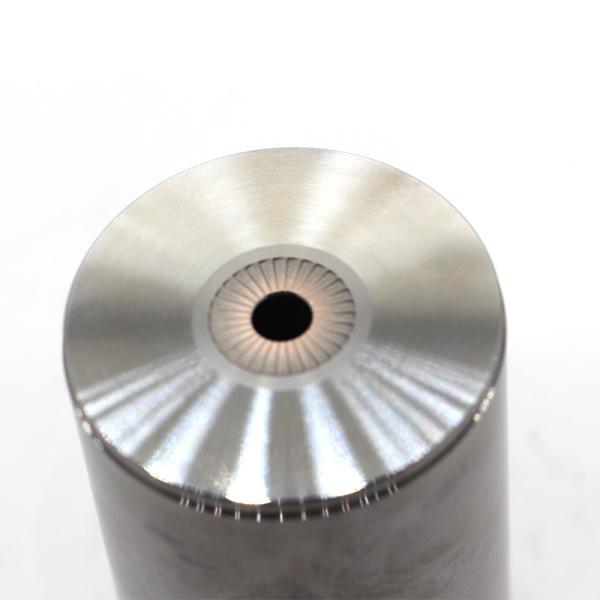

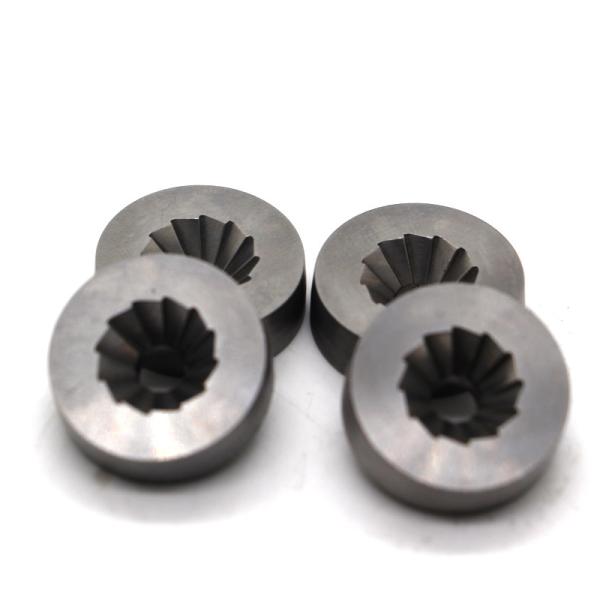

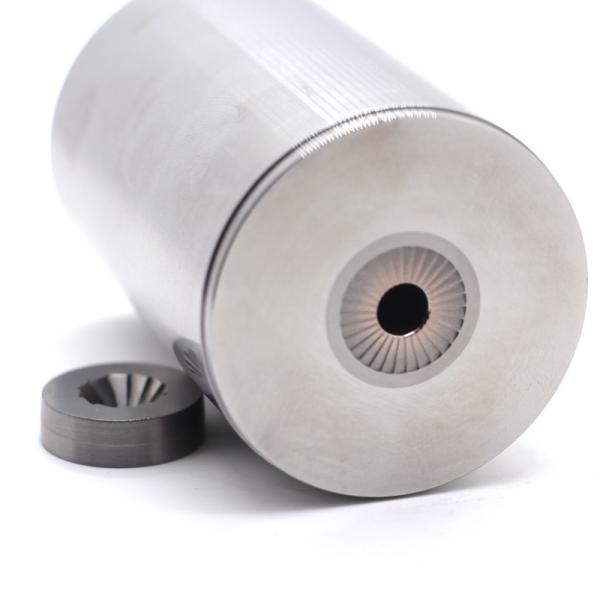

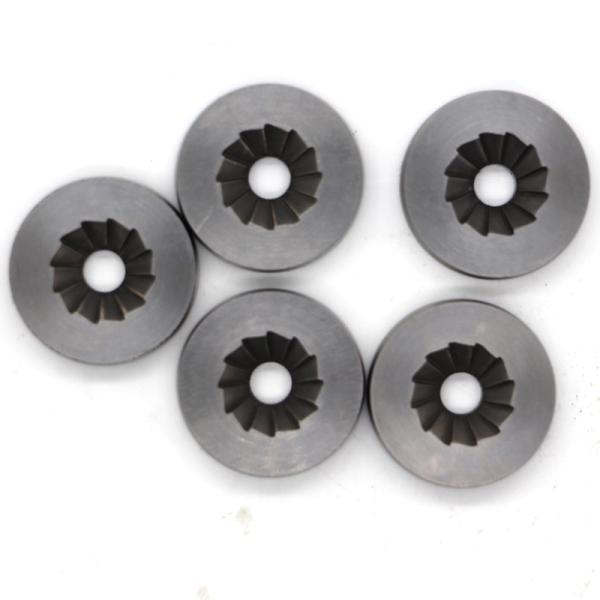

Tungsten Carbide Die Serrated punch and dies for screw nut bolt

Insert Material:

We can suggest different carbide material according to different usage.
Item
Co
Grain Size
Density
Hardness
TRS
Impact Strength
Application
Mediun-Grained
Co%
μm
g/cm²
HRA
Kgf/mm²
Kgf/m-cm²
KG2
6.50%
2~3
14.90
90.5
320
0.28
Drawing die
KG3
9%
2~3
14.61
89.3
340
0.52
Extrusion die
KG5
12%
2~3
14.31
88.3
340
0.58
Extrusion die
KG6
14%
2~3
14.12
87.3
320
0.65
Extrusion die
Coarse-Grained
ST6
15%
3~6
13.80
86.0
270
0.78
Stainless steel
ST7
20%
2~6
13.40
85.3
270
0.80
Stainless steel
EA65
18%
2~6
13.73
85.0
300
0.80
Carbon steel screw/cutting die
VA80
20%
3~6
13.58
84.0
280
0.85
Impact resistance
VA90
22%
6~9
13.39
82.5
240
0.90
Impact resistance
EA90
24%
2~6
13.22
82.8
270
0.90
Impact resistance

Case Material:

Our main case material is H13(SKD61) HRC46-48
SKD61(H13)
Chemical Composition
C
Si
Mn
P
S
Cr
Mo
V
W
Content (%)
0.39
1.15
0.44
0.021
0.007
5.12
1.3
0.94
0.06
Cu
Ni
0.05
0.06

Polishing Tungsten Carbide Die Serrated Punching Dies For Bolt

Our special product, serrated die punch. According to the customer's requirements, if you are interested, you can contact us.

We supply for customer including:


Carbide die: 1.Straight hole dies 2.Extrusion dies 3.Segmented Hex Dies 4.Cutter&knife 5. nut die
Tube drawing dies
Cutting&Trimming dies
Thread rolling die
second punch
punch pin HSS

CNC parts

Features:

• 100% quality guarantee

• Various size for selection

• Professional technical support

• OEM & ODM are welcomed

• Small order is acceptable

• Factory service with competitive service in the market

• Delivery in time

• Flexible payment terms(T/T, western union, etc.)

• Best after-sales service

Our Company

Polishing Tungsten Carbide Die Serrated Punching Dies For Bolt

Polishing Tungsten Carbide Die Serrated Punching Dies For Bolt

Packaging & Shipping:

Usually, we choose the following ways to transport our molds, if you have other options or requirements, we are also welcomed.

Polishing Tungsten Carbide Die Serrated Punching Dies For Bolt
