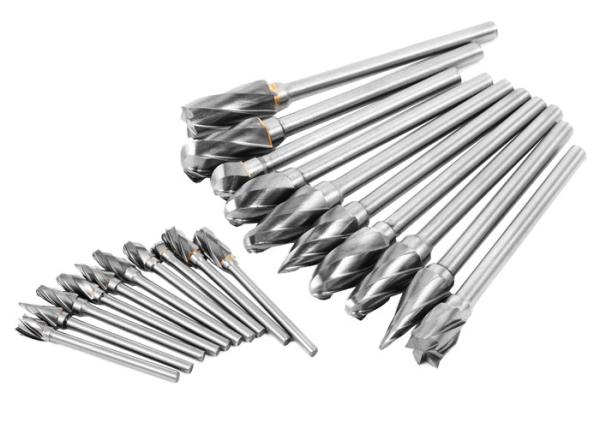

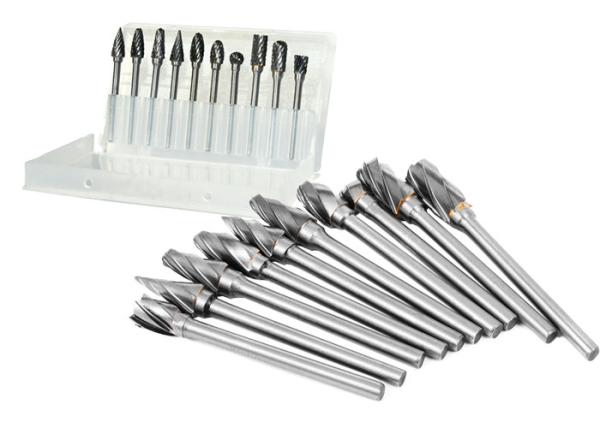

Extra Long Reach Carbide Burr Set , Die Grinder Carbide Burr Heat Resistance
Extra Long Reach Carbide Burr Set , Die Grinder Carbide Burr Heat Resistance
Extra Long Reach Carbide Burr Set , Die Grinder Carbide Burr Heat Resistance
Extra Long Reach Carbide Burr Set , Die Grinder Carbide Burr Heat Resistance
Extra Long Reach Carbide Burr Set , Die Grinder Carbide Burr Heat Resistance
Extra Long Reach Carbide Burr Set , Die Grinder Carbide Burr Heat Resistance
Extra Long Reach Carbide Burr Set , Die Grinder Carbide Burr Heat Resistance
Extra Long Reach Carbide Burr Set , Die Grinder Carbide Burr Heat Resistance
Specifications
Brand Name :
Seego Carbide
Model Number :
Tungsten Carbide Rotary Burrs
Certification :
ISO CE SGS
Place of Origin :
Hunan of China
MOQ :
10 pcs
Price :
Negotiable Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000000 pcs per month
Delivery Time :
within 7-10 days after order confirmed
Packaging Details :
Packed in every single piece per Plastic Box
Product Name :
Extra Long Shank Tungsten Carbide Rotary Burrs for Burr Polishing Grinding
Cut NO. :
Single Cut, Double Cut and Aluminum Cut
Length :
50~81mm and Customized length
HS Code :
8207809000
Processed Material :
Metal, Wood and Tooth
Processing Accuracy :
0.05mm
Description

Extra Long Shank Tungsten Carbide Rotary Burrs for Burr Polishing Grinding

Manufacturing Features:

1. All our offered carbide burrs are CNC grinded, tolerance controlled at 0.00~0.005mm

2. Made from Tungsten Carbide K20 Micro grain size WC, hardness>90HRC.

3. Carbide burr head size from 6mm to 25mm.

4. With steel shank size of 3mm, 6mm and 6.35mm welded to the burr.

5. Different cut are available (Standard Single, Fine Single, Coarse cutter, Chip Breaker, Double-Cut(Cross) Coarse Double-cut, Fine Double-Cut, Diamond Cut, Non-Ferrous-Aluminium Cut).

6. We would recommend for suitable select cut according to the processed material.

7. Extra long shank carbide burrs are available, customized drawings and samples welcomed!

Types:

Tool
No.		 Head
Dia		 Cut
Length		 Shank
Dia		 Total
Length		 Tool
No.		 Head
Dia		 Cut
Length		 Shank
Dia		 Total
Length
E0306 3 3 6/6.35 51 F0313 3 13 6/6.35 58
E0610 6 6 6/6.35 55 F0618 6 18 6/6.35 63
E0813 5 8 6/6.35 58 F0820 8 20 6/6.35 65
E1016 10 10 6/6.35 61 F1020 10 20 6/6.35 65
E1220 12 12 6/6.35 65 F1225 12 25 6/6.35 70
E1625 16 16 6/6.35 70 F1625 16 25 6/6.35 70
E1925 19 19 6/6.35 70 F1925 19 25 6/6.35 70
G0310 3 10 6/6.35 55 K0301 3 1 6/6.35 50
G0618 6 18 6/6.35 63 K0603 6 3 6/6.35 53
G0820 8 20 6/6.35 65 K0804 8 4 6/6.35 54
G1020 10 20 6/6.35 65 K1005 10 5 6/6.35 55
G1225 12 25 6/6.35 70 K1206 12 6 6/6.35 56
G1625 16 25 6/6.35 70 K1608 16 8 6/6.35 58
G1925 19 25 6/6.35 70 K2512 25 12 6/6.35 62
