High Hardness Tungsten Carbide Rod K30 For Reamers / Mold Punches
High Hardness Tungsten Carbide Rod K30 For Reamers / Mold Punches
High Hardness Tungsten Carbide Rod K30 For Reamers / Mold Punches
High Hardness Tungsten Carbide Rod K30 For Reamers / Mold Punches
High Hardness Tungsten Carbide Rod K30 For Reamers / Mold Punches
High Hardness Tungsten Carbide Rod K30 For Reamers / Mold Punches
High Hardness Tungsten Carbide Rod K30 For Reamers / Mold Punches
High Hardness Tungsten Carbide Rod K30 For Reamers / Mold Punches
Specifications
Brand Name :
SEEGO CARIBDE
Model Number :
Dia from 0.3-40mm, Length 330mm
Certification :
SGS, CE, ISO
Place of Origin :
CHINA
MOQ :
2kg
Price :
Can be negociated together
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
45Tons/Month
Delivery Time :
5-8 days
Packaging Details :
Plastic Boxes inside + Carton Boxes outside
Material :
100% Virgin Tungsten Carbide
Detailed Product Description :
Sintered Unground Solid Tungsten Carbide Rod
Composition :
Wc + Co
WC Grain size :
0.5um-1.0um
Hardness HRA :
91.5-94.0HRA
Surface :
Blank or polished, Grinding, Polishing, Sand-blasted
Features :
Good wear resistance, impact resistance, High bending strength
Grinding Ways :
Centreless Grinding Machine with High Presicion
Description

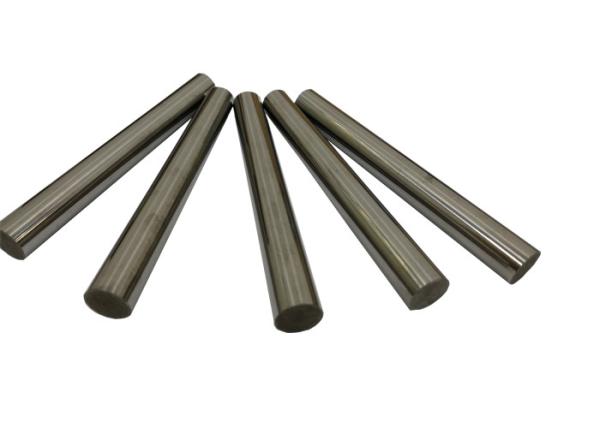

High Polished Round Blank Tungsten Carbide Rod with h6 tolerances K30

Advantages:

1.. High polished, generally tolerance is h6, we can grind to h5 or other tolerance.

2. Most complete production line of grounded Cut-to-length carbide rods for cutting tool blanks in stock!

3. Various grades and types available according to different working environment request.
4. Very good price, discount for large quantity.

5 HIP sintering + Extrusion + CIP Method to ensure good performance.
6. Fast delivery time.
7. The smallest Dia we made is 0.3mm with standard length 330mm

8. The longest length we made is 1000mm

9. Special Perform to produce different shapes of Tungsten Carbide Rods/Bars based on drawings.

Application:

► For PCB Drills, Drills, End Mills & Dole Drilling Tools, Gun Drills
► For Reamers
► For Mold Punches
► Core Pins, etc.

Grade Table:

Grade ISO
Grade		 Cobalt
%		 Density
g/cm3		 Hardness
HRA
YG8 K30 8 14.8 89.5
YG6 K20 6 14.95 90.5
YG6X K10 6 14.95 91.5
YL10.2 K30 10 14.5 91.8
YG13X K30-K40 13 14.3 89.5
YG15 K40 15 14 87.5

Series and Speciafications:

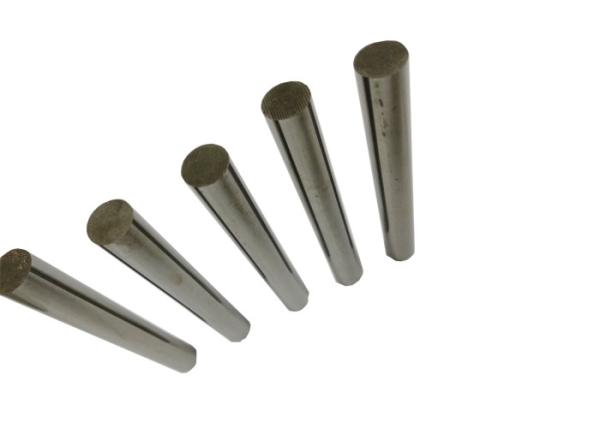

► Solid Unground Tungsten Carbide Rod Blanks

High Polished Round Blank Tungsten Carbide Rod with h6 tolerances YL10.2/K30/K40
Specifications:D×L
D Tol L Tol
mm mm mm mm
0.3~12 +0.20～0.45 330 0～+5.0
12.5~20 +0.30～0.60 330 0～+5.0
21~40 +0.50～0.80 330 0～+5.0

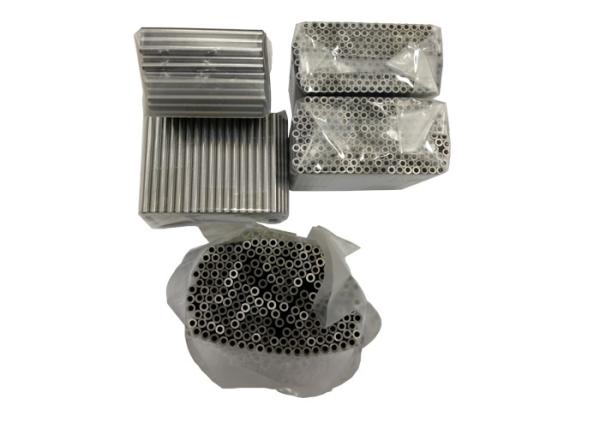

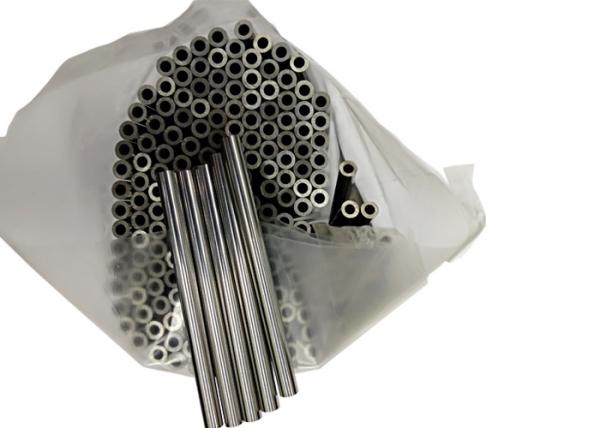

► Cemented Carbide Rods with One Straight Coolant Hole

Specifications:D×d×L Rods with Central Hole
D Tol d Tol L Tol C
mm mm mm mm mm mm mm
2.5 +0.20～0.50 0.3 ±0.10 330 0～+5.0 0.2
4 +0.20～0.50 1 ±0.15 330 0～+5.0 0.2
6 +0.20～0.50 1 ±0.15 330 0～+5.0 0.2
8 +0.20～0.50 1.5 ±0.15 330 0～+5.0 0.2
10 +0.30～0.60 2 ±0.20 330 0～+5.0 0.25
12 +0.30～0.60 2 ±0.20 330 0～+5.0 0.25
14 +0.30～0.60 2 ±0.20 330 0～+5.0 0.25
16 +0.30～0.60 2 ±0.20 330 0～+5.0 0.25
18 +0.40～0.80 3 ±0.25 330 0～+5.0 0.3
20 +0.40～0.80 3 ±0.25 330 0～+5.0 0.3
22 +0.40～0.80 3 ±0.25 330 0～+5.0 0.3
24 +0.40～0.80 4 ±0.30 330 0～+5.0 0.3
26 +0.40～0.80 5 ±0.35 330 0～+5.0 0.3

► Tungten Carbide Rods with Two Straight Coolant Holes

Specifications:D×2d×TK×L Rods with Two Straight Coolant Holes
D Tol d Tol TK Tol L Tol a
mm mm mm mm mm mm mm mm mm
6.3 0～+0.3 1 ±0.10 3 -0.2 330 0～+5.0 0.15
8.3 0～+0.3 1 ±0.15 4 -0.3 330 0～+5.0 0.15
10.3 0～+0.3 1.4 ±0.15 5 -0.3 330 0～+5.0 0.2
12.3 0～+0.4 1.75 ±0.15 6 -0.5 330 0～+5.0 0.3
14.3 0～+0.4 1.75 ±0.15 7 -0.5 330 0～+5.0 0.37
16.3 0～+0.4 2 ±0.20 8 -0.5 330 0～+5.0 0.4
18.3 0～+0.5 2 ±0.20 9 -0.8 330 0～+5.0 0.5
20.4 0～+0.5 2.5 ±0.25 10 -0.8 330 0～+5.0 0.5

► Solid Carbide Rods with Two 15° 30° or 45° 65° Helical Holes

Specifications: D×2d×TK×L 　
D Tol. of D d Tol.of d TK Tol. Of TK A Pitch Tol.of B°
mm mm mm mm mm mm mm mm deg
6.3 0～+0.3 0.70 ±0.10 2.60 -0.4 0.15 32.65 ±3.0 15° ±0.5°

30° ±0.5°

45° ±0.5°

60° ±0.5°
8.3 1.00 ±0.15 4.00 -0.4 0.15 43.53 ±4.5
10.3 0～+0.4 1.40 ±0.15 4.80 -0.6 0.20 54.41 ±4.5
12.3 1.40 ±0.20 6.25 -0.8 0.30 65.30 ±7.0
14.3 1.75 ±0.20 7.10 -1.0 0.37 76.18 ±7.0
16.3 1.75 ±0.20 8.30 -1.0 0.40 87.06 ±7.0
18.3 0～+0.5 2.00 ±0.25 9.55 -1.0 0.50 97.95 ±7.5
20.3 2.00 ±0.25 10.40 -1.0 0.50 108.83 ±7.5

► Cut-to-Length(CTL) Tungsten Carbide Rod, Ground, Polished, Chamfer One End

Speciafication make based on customer's details requirements.

Packing and Delivery:

► Packaging Details:Carton box and inner plastic bag.
► Delivery Detail: Within 10-30 days upon confirm the order.

Note: Welcome------customizable for individual requirements.
