18x18x1.95 Reversible Grooving Turnover Knives HW with 4 Cutting Edges
18x18x1.95 Reversible Grooving Turnover Knives HW with 4 Cutting Edges
18x18x1.95 Reversible Grooving Turnover Knives HW with 4 Cutting Edges
18x18x1.95 Reversible Grooving Turnover Knives HW with 4 Cutting Edges
18x18x1.95 Reversible Grooving Turnover Knives HW with 4 Cutting Edges
18x18x1.95 Reversible Grooving Turnover Knives HW with 4 Cutting Edges
18x18x1.95 Reversible Grooving Turnover Knives HW with 4 Cutting Edges
18x18x1.95 Reversible Grooving Turnover Knives HW with 4 Cutting Edges
Specifications
Brand Name :
Fengke
Model Number :
18x18x1.95
Place of Origin :
China
MOQ :
100
Price :
USD1/piece
Payment Terms :
L/C, D/P, D/A, MoneyGram, Western Union
Material :
Tungsten Carbide
Reversible knife :
18x18x1.95
App;lication :
for use in grooving cutterheads
Description

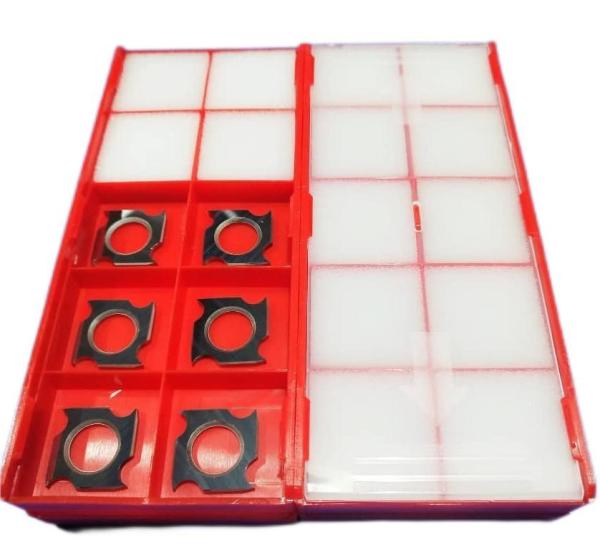

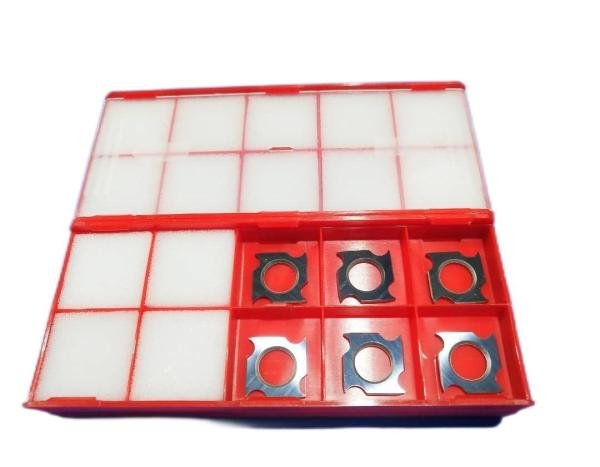

This 18x18x1.95 carbide insert knife is HW with 4 cutting edges, for wood grooving. It is the replacement for Leuco 163699, Leitz 105114

Description

Dimension(mm) 18x18x1.95
Length(mm) 18
Width(mm) 18
Thickness(mm) 1.95
Screwhole Dia. 10
Cutting Edges 4
Material Tungsten Carbide
Packing Unit 10pc/plastic box

Features:

• Excellent resistance to corrosion, oxidtion and mechanical wear.
• Higher efficiency due to improved tool lifetime.
• Improved toughness.
• Made from the best carbide! For all natural woods, 4-edged
• Mirror polished surface for better cutting
• Suitable for processing Hard wood/soft wood,HDF/MDF, Chipboard, Plywood, for all natural woods.

Product Size

Dimension
[mm]		 B
[mm]		 H
[mm]		 S
[mm]		 Ø d
[mm]		 Type
18x18x1.95 18 18 1.95 10 1
18x18x2.5 18 18 2.5 10 1
18x18x3.7 18 18 3.7 10 1

Application

The 18x18x1.95mm carbide grooving insert is used on grooving cutterheads, including

  • LEUCO grooving cutterheads with a groove width of 4mm.
  • CMT 694.001 3 Piece Adjustable Grooving Set18x18x1.95 Reversible Grooving Turnover Knives HW with 4 Cutting Edges
