Specifications
Place of Origin :
Jiangsu, China
Brand Name :
YJ
Model Number :
YJ series
Certification :
ISO9001 CE
Packaging Details :
EXPORT PACKING
Supply Ability :
50 Sets per Year
Price :
$5000.00 - $250,000.00/set
MOQ :
1 set
Payment Terms :
T/T, Western Union
Delivery Time :
60 days
Condition :
New
Dimension(L*W*H) :
Machine Model
Warranty :
1 Year
After-sales Service Provided :
Engineers available to service machinery overseas
color :
blue
Port :
SHANGHAI PORT
Description

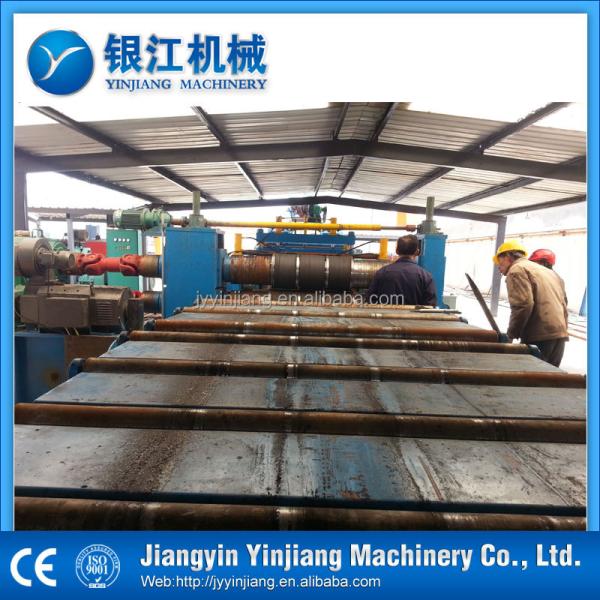

Automatic production line of steel strip slitting machine

YJ-1600 ×2.0 Slitting Line is a complete metal processing line for CR AND HR coil, silicon coil, stainless coil, painted coil, aluminum coil, galvanize coil, etc. It’s widely applied in pipe making industry. A lot of our clients use slitting line first to slit large coils into required width. Slitting line contains coil car, uncoiler, pinch device, spiral accumulator (loop), coil slitting machine, scrap baller, recoiler, steering device, hydraulic system, electrical cabinets and other equipment required. Our slitting lines are of high precision and superior quality, and we’ve won ISO 9001 and CE certificates. Please click here for certificates view.

Main Technical Specifications

1. Applicable Materials: Carbon Steel (HR or CR)

2. Tensile Strength: δb ≤ 500Mpa, and yield strength δs ≤ 250Mpa

3. Material Thickness: 1.0 – 2.0 mm

4. Material Width: 500 – 1600 mm

5. Coil ID: φ500 –φ700mm

6. Coil OD: ≤ φ2000 mm

7. Coil Weight: ≤ 7/15 t

8. Slitting Number: 12 – 30

9. Slitting Speed: 0 – 180 m/min

Technological Process

Storage Platform → Hydraulic Feeding Car → Uncoiling → Snubber Roller → Pinching and Leveling → Shearing → Loop Bridge → Side Guiding → Slitting → Pressing → Scrap Recoiling → Loop Bridge → Separating → Damping → Pressing → Recoiling → Hydraulic Support → Discharging

500-1600mm Stainless Steel Slitting Machine Galvanize Automatic Sheet Slitting Line500-1600mm Stainless Steel Slitting Machine Galvanize Automatic Sheet Slitting Line500-1600mm Stainless Steel Slitting Machine Galvanize Automatic Sheet Slitting Line500-1600mm Stainless Steel Slitting Machine Galvanize Automatic Sheet Slitting Line

YJ Slitting Line Model and Technical Parameters

Slitting Line Model

Thickness (mm)

Width

(mm)

Slitting

Number

Slitting Speed (m/min)

Coil Weight (Ton)

YJ-0.5×1000

0.15 – 0.5

300 – 1000

12

50 – 150

7

YJ-0.5×1300

0.15 – 0.5

500 – 1300

24

50 – 150

7

YJ-2.0×650

0.3 – 2.0

200 – 650

10 – 30

50 – 150

7

YJ-2.0×1000

0.3 – 2.0

300 – 1000

10 – 30

50 – 150

7/15

YJ-2.0×1300

0.3 – 2.0

500 – 1300

12 – 30

50 – 180

7/15

YJ-2.0×1600

0.3 – 2.0

500 – 1600

12 – 30

50 – 180

7/15

YJ-3.0×1600

0.3 – 3.0

500 – 1600

8 – 30

50 – 180

15

YJ-3.0×1800

0.3 – 3.0

900 – 1800

8 – 30

50 – 180

20

YJ-4.0×1600

1.0 – 4.0

900 – 1600

6 – 30

50 – 180

20

YJ-6.0×1600

1.0 – 6.0

900 – 1600

5 – 30

50 – 80

30

YJ-10.0×2000

2.0 – 10.0

900 – 2000

5 – 30

30 – 50

30

YJ-12.0×2000

3.0 – 12.0

900 – 2000

5 – 30

20 – 40

30

YJ-16.0×2000

3.0 – 16.0

900 – 2000

5 – 30

20 – 40

40

YJ-12.0×2000

5.0 – 20.0

1000 – 2000

3 – 30

20 – 40

40

Equipment Composition

Coil car, uncoiler, peeler entry table, Straightener, Shearing machine loop table, coil guide and pinch roll, Coil slitting machine, scrap winder (both sides) , Loop table, separator and tension table, Deflector roll and exit threading table, Recoiler, Over arm separator in the recoiler, Exit coil car for recoiler, Hydraulic system, pneumatic system, electrical control system.

Remarks

1) For more specifications, please feel free to contact us via E-mail, MSN, or Skype.

2) We can customize tube mill lines according to specifications and requirements given by customers. Please click the inquiry button for custom slitting line.
