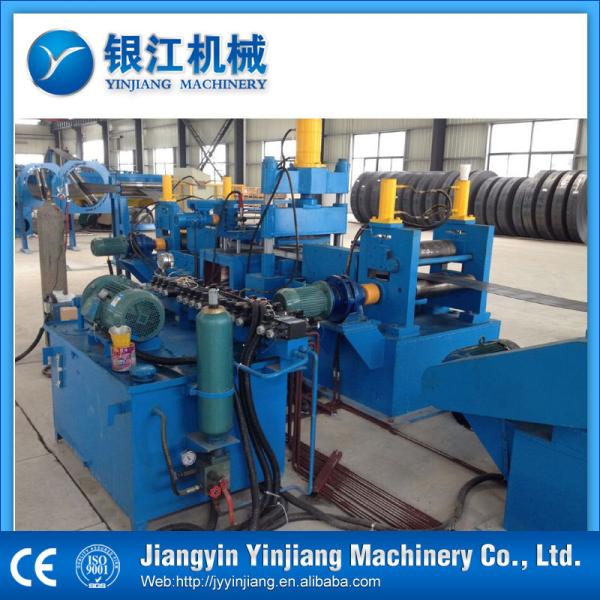

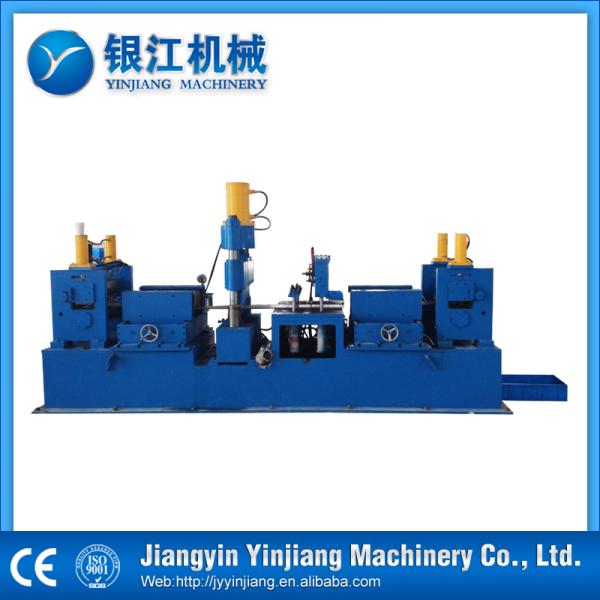

Shearing & Butt Welding Machine for pipe mill
The purpose of the shear butt welding machine is to cut the head of the steel strip in parallel and then conduct butt welding to ensure the continuous operation of the whole unit; Its working modes are manual, semi-automatic and full-automatic.
The structure is composed of bed, two roll clamping, hydraulic clamping device, centering device, gantry hydraulic shear, butt joint pressing plate, automatic wire walking welding, hydraulic system, PLC control system, etc.
YJ2000 Shearing & Butt Welding Machine for Pipe Production Line:
1.Strip width:600mm
2.Strip thickness:8.0mm
NO. | Product Name | Model | Steel Strip Width (mm) | Steel Strip Thickness (mm) |
1 | Shearing & Butt Welder | YJ480 | ≤420 | ≤3 |
YJ550 | ≤520 | ≤3 | ||
2 | Shearing Machine | Simple | ≤500 | ≤3 |
YJ600 Double-column | ≤580 | ≤6 | ||
YJ800 Double-column | ≤780 | ≤8 | ||
YJ850 Double-column | ≤830 | ≤9 |
