Outdoor Single Mode GYXTW53 G652D Armoured Fiber Cable
Outdoor Single Mode GYXTW53 G652D Armoured Fiber Cable
Outdoor Single Mode GYXTW53 G652D Armoured Fiber Cable
Outdoor Single Mode GYXTW53 G652D Armoured Fiber Cable
Specifications
Brand Name :
TTI OR OEM
Model Number :
GYXTW53 Fiber Optical Cable
Certification :
ISO9001 / ISO14001 / ROHS
Place of Origin :
China
MOQ :
1000M
Price :
0.13
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
50000km/momth
Delivery Time :
Negociated
Packaging Details :
wood Drum
Product Name :
GYXTW53 Outdoor Fiber Optical Cable
Model number :
GYXTW53
Color :
Black
Material :
PE
Application :
Aerial/Duct/Direct
Operating temperature :
-40 to 70
Wavelength :
1310nm or 1550nm
Type :
SM
Length :
Customizted
Quality control :
100% test before shipping
Package :
Wooden Drum
Sheath :
MDPE/HDPE/LSZH/PVC
Description

Outdoor Fiber Optic Cable GYXTW53 Singlemode G652D Armoured Optical Cable

1. Specification:

Item
GYXTW53 Fiber Optical Cable
Place of Origin
Guangdong
Brand Name
TTI
Number of Conductors
≥ 10
Jacket
LSZH
Application
Duct/Aerial
Fiber count
2-12 Cores
Packing
2 Km/wooden Drum
Fiber Type
SM Single Mode
Color
Black

2. Characteristic:

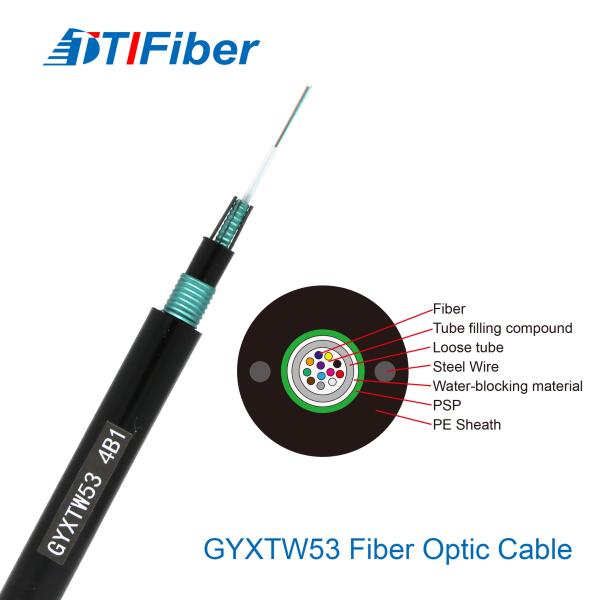

1. The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.

2. The tubes are filled with a water-resistant filling compound.

3. The tube is wrapped with a layer of corrugated steel tape longitudinally. Between the corrugated

4. steel tape and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape.

5. The cable is completed with PE sheath.

3. Feature:

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

G652D G655 50/125μm 62.5/125μm
Attenuation(+20deg C) @850nm ≤ 3.0dB/KM ≤ 3.0 dB/KM
@1300nm ≤ 1.0dB/KM ≤ 1.0 dB/KM
@1310nm ≤ 0.36 dB/KM --
@1550nm ≤ 0.22 dB/KM ≤0.23dB/km
Bandwidth(Class A) @850nm ≥ 500 MHz-KM ≥200 MHz-KM
@1300nm ≥1000 MHz-KM ≥600 MHz-KM
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm


4. Application:

  • Frequent lightning area and anti electric field : The subway, tunnel
  • Long-distance communication: Local trunk network & User network
  • Duct and direct buried application
  • Harsh environment

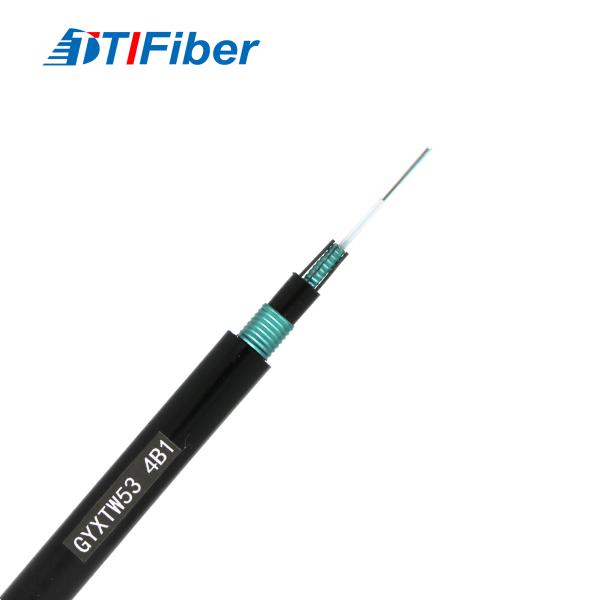

5. Product Picture:

Outdoor Single Mode GYXTW53 G652D Armoured Fiber Cable

Outdoor Single Mode GYXTW53 G652D Armoured Fiber Cable

6. FAQ:

1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.


2. Do you accept OEM,ODM?
Yes, we accept them .


3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.


4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.


5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,,Money Gram.
