G652D ADSS Outdoor Fiber Optic Cable All Dielectric Self Supporting
G652D ADSS Outdoor Fiber Optic Cable All Dielectric Self Supporting
G652D ADSS Outdoor Fiber Optic Cable All Dielectric Self Supporting
G652D ADSS Outdoor Fiber Optic Cable All Dielectric Self Supporting
G652D ADSS Outdoor Fiber Optic Cable All Dielectric Self Supporting
G652D ADSS Outdoor Fiber Optic Cable All Dielectric Self Supporting
Specifications
Brand Name :
TTI OR OEM
Model Number :
GY
Certification :
ISO9001
Place of Origin :
China
MOQ :
1000M
Price :
0.13
Payment Terms :
T/T,
Supply Ability :
4000KM
Delivery Time :
10-20days
Packaging Details :
wood Drum
Product name :
Fiber Optic Cable
Fiber Type :
G652D/G657A1/G657A2
Color :
Black
Application :
Aerial
Number of Conductors :
≥ 10
Jacket :
PE
Packing :
Standard Wooden Drum With Protection
Keyword :
out door adss fiber optic cable
Place :
Shenzhen
Description

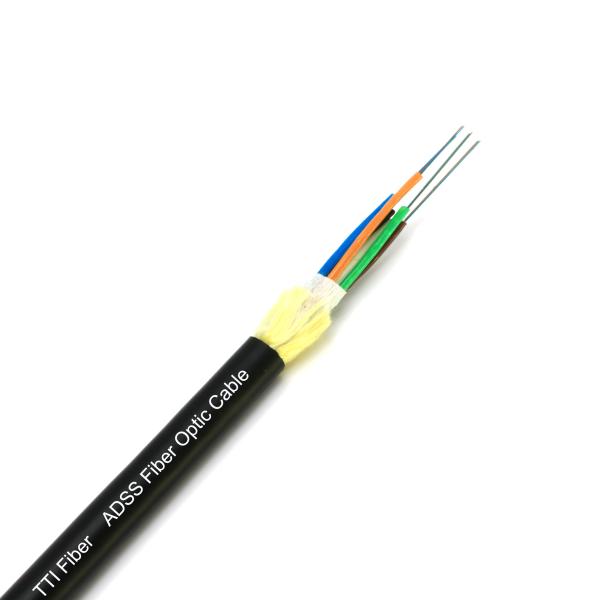

G652D ADSS Outdoor Fiber Optic Cable All Dielectric Self Supporting

All Dielectric Self-Supporting ADSS Fiber Optical Cable outdoor Aerial ADSS 48 96 Core Fibra Optica ADSS

Fiber Optical Cable

1. Can be installed without shutting off the power;
2.The maximum inductive at the operating point of AT sheath can reach 25kV;
3.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops;
4. Large span lengths and the largest span is over 1000m;

Fiber Optical Cable Specification:

Installation Method
Typically used in areas with high electrical field strength or frequent lightning in the power communication transmission system.
Transport/Storage temp
－30℃~+65℃
Installation temp
－20℃~+50℃
Operation temp
－30℃~+65℃

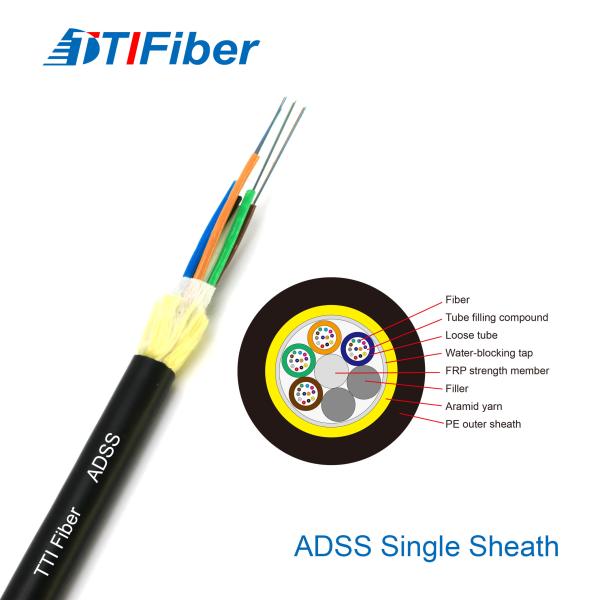

Structural Characteristics
Fiber Count
2~144
Loose Tube
Colored fiber in PBT loose tube,filled with fiber gel
Aomor
Single fine steel wire and corrugated steel-plastic tape
Waterproof Layer
Cable core filled with cable gel or water blocking tape,water blocking yarns.
High-strength Aramid Yam
Offers very high tensile strength,small diameter and light weight to fit different climate consitions and laying spans
Sheath
Anti-tracking(AT) material or Polyethylene(PE)
Technical Data
Item
Parameter
Item
Parameter
Cable type
ADSS-PE/AT24B1-12kN(typical)
Young's modulus(GPa)full cable cross-section
8~20depending on span,load,ect
Fiber attenuation(B1)(dB/km)
1310nm
≤0.36
1350nm
≤0.22
Thermal expansion coefficient(10'/℃)
≤10
Nominal cable outer dia(mm)
13(typical)
Min.bending radius(mm)
Static:15D
Dynamic:25D
Nominal thickness of outer sheath(mm)
≥1.7
Representative span(m)
100-1000
Cable weight(kg/km)
80~180
