FTTH Loose Tube Aerial Optical Fiber Cable GJYXFH G652D/G657A1/2
FTTH Loose Tube Aerial Optical Fiber Cable GJYXFH G652D/G657A1/2
FTTH Loose Tube Aerial Optical Fiber Cable GJYXFH G652D/G657A1/2
FTTH Loose Tube Aerial Optical Fiber Cable GJYXFH G652D/G657A1/2
Specifications
Brand Name :
TTI OR OEM
Model Number :
GJYXFH Fiber Cable
Certification :
ISO9001 / ISO14001 / ROHS
Place of Origin :
China
MOQ :
1000M
Price :
Negociated
Payment Terms :
L/C, D/A, D/P, T/T, ,
Supply Ability :
10000 km
Delivery Time :
Negociated
Packaging Details :
wood Drum
Fiber type :
G652D G657A1 G657A2
Product name :
GJYXFH Fiber Cable
Color :
White
Material :
PE/LSZH
Strength member :
Aramid Yan
Fiber Type :
SM,MM
Wavelength :
1310nm or 1550nm
Use :
FTTX
Length :
Customizted
Quality control :
100% test before shipping
Operating temperature :
-40°C to + 70°C
Package :
Wooden Drum
Description

FTTH Indoor And Outdoor GJYXFH G652D/G657A1/2 Loose Tube Aerial Optical Fiber Cable​

1. Specification:

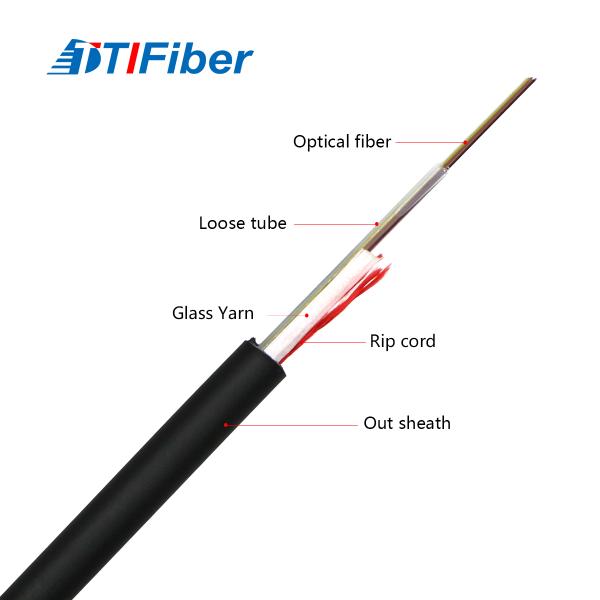

The fibers,200/ 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Item
TTI
Model Number

GJYXFH Fiber Optic Cable
Type
Indoor /outdoor Fiber Optic Cable
Place of Origin
China
Brand Name
TTI or Customized
Customizted
Jacket Color
Black/White
Sheath Material
LSZH, PVC
Fiber Type
SM, MM
Wavelength
1310nm or 1550nm
Strength member
Aramid Yan
Working temperature
-20~ + 60°C
Warranty Time
10 years
Package
Each reel 1km, 2km
Service
OEM available

2. Feature:


(1) Light weight,flexibility,and friendly installation.

(2) Good mechanical and environmental performance..

(3) Flame retardant outer sheath provide good safety.

Fiber Type
G.652
G655
50/125μm
62.5/125μm
Attenuation(+20℃)
@850nm
≤3.0 db/km
≤3.3 db/km
@1300nm
≤1.0 db/km
≤1.0 db/km
@1310nm
≤3.6 db/km
≤0.40 db/km
@1550nm
≤0.22 db/km
≤0.23 db/km
Bandwidth
@850nm
≥500MHz.km
≥200MHz.km
@1300nm
≥500MHz.km
≥500MHz.km
Numerical Aperture
0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength
≤1260 nm
≤1450 nm

3. Application:

(1) Adopted to indoor distribution
(2) pigtail of communication equipment
(3) Suitable for communication equipment served
(4) Can be installed conveniently and perated simply

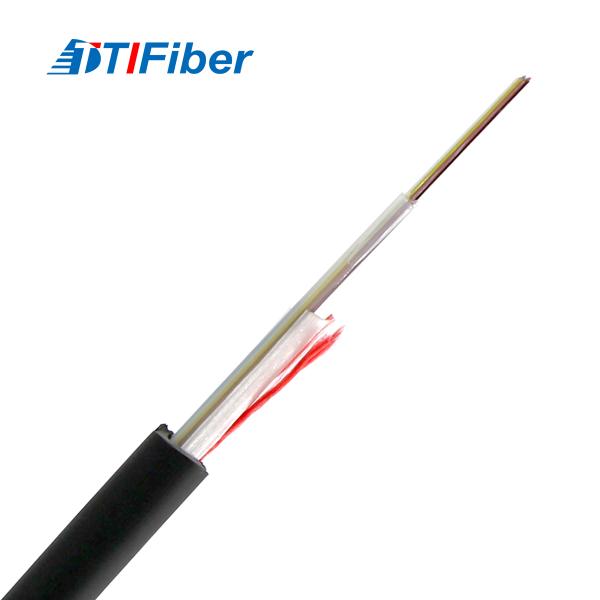

4. Product Picture:

FTTH Loose Tube Aerial Optical Fiber Cable GJYXFH G652D/G657A1/2

FTTH Loose Tube Aerial Optical Fiber Cable GJYXFH G652D/G657A1/2

FTTH Loose Tube Aerial Optical Fiber Cable GJYXFH G652D/G657A1/2

FTTH Loose Tube Aerial Optical Fiber Cable GJYXFH G652D/G657A1/2
