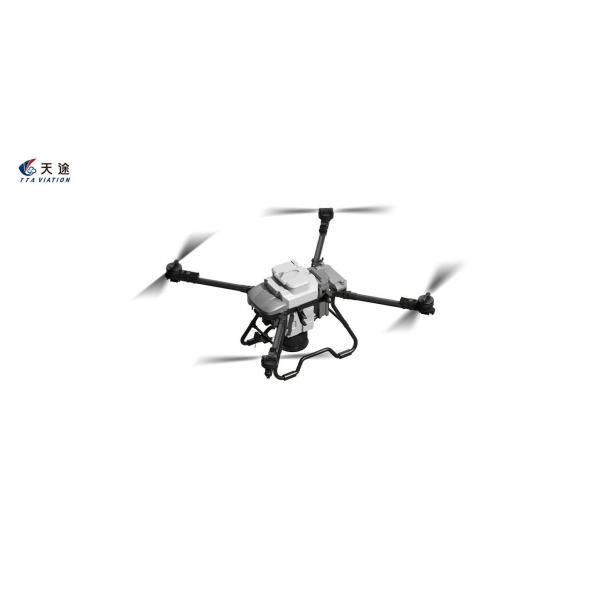

Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection
Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection
Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection
Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection
Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection
Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection
Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection
Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection
Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection
Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection
Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection
Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection
Specifications
Model NO. :
M4E-G300 Pro
Power Supply :
Electric
Technics :
Screen Printing
Material :
TPU
Type :
Knapsack
Product Name :
Drone Sprayer
Model :
M4e-G300 PRO
Sprayer Type :
Unmanned Aerial Vehicle (Uav)
Usage :
Agriculture
Video Outgoing Inspection :
Provided
Tank Volume :
30L
Empty Weight :
20.8kg
Full Payload Flying Time :
10-13min
Flying Height :
2000m
Flying Speed :
0-8m/S
Transport Package :
Box Package
Specification :
M4E-G300 Pro
Trademark :
TTA
Origin :
China
HS Code :
880022000
Supply Ability :
10000unit/Year
After-sales Service :
Engineers Available to Service Machinery Overseas,
Warranty :
1 Year
Installation :
Internal Threaded Connection
Liquid Contained :
Medicine, Disinfector
Spraying Shape :
Sector
Volume :
>500ml
Samples :
US$ 13999/Piece 1 Piece(Min.Order) | Request
Customization :
Available | Customized Request
MOQ :
1 unit
Price :
Negotiable
Packaging Details :
Box Package
Delivery Time :
https://ttadrone.en.made-in-china.com/
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Description
Factory Supply Hot Sale Complete Sale Drone Spray Drone Agricultural Aircraft Sale Agricultural Drone
Name of commodity Image Remarks



4 rotors UAV		 Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection fuselage, arms, motors, propellers, electronic speed controllers





Spraying equipment		 Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection


Micro pump / Flow meter / pesticide tank / nozzles/



Package		 Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection Carton A Carton B Carton C





Remote controller		 Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection




TTA Remote controller





Camera
Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection




FPV camera Front and Back



Battery/2pcs included in package		 Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection 1pc battery/flight

2 pcs in one CTN:

37.5*30*37 cm (L*W*H) G.W:22Kg



14S Charger		 Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection Dual channels

37.5*32.5*31.5cm(L*W*H) G.W: 13Kg
Assemble tools 1 bag



Supply Ability

Supply Ability 500set/sets per Month

Packaging & Delivery

Packaging Details: Packed in professional aviation case
Port: Tianjin, Shanghai, ningbo, shenzhen

Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection
PRODUCTION DESCRIPTION
Mode 1:
Preset the working route on GCS ,find your crop field on Google Map, the route will automatically appear. The start point,the final
point and the working direction can all be set.

Mode 2:
Import Kml file directly ,
the route will automatically appear. The start point, the final point and the working direction can all be set.

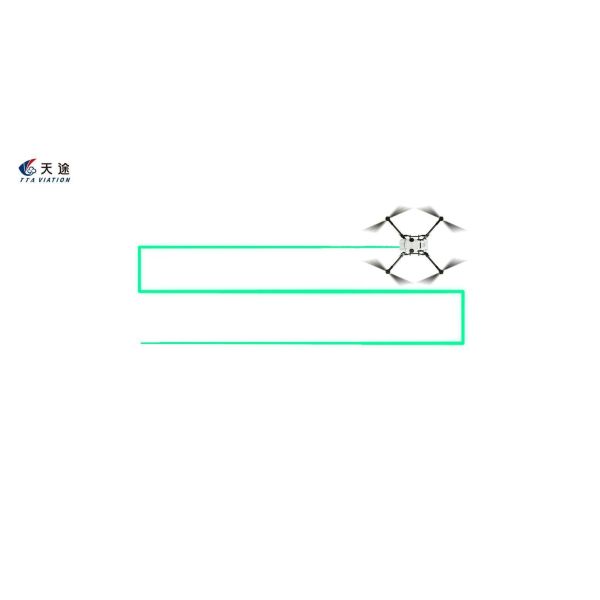

Mode 3:
Quick scanning mode:
Operator only need to set A and B point and give the drone a
direction order then the drone will fly and spray
automatically. Easy to shorten or extend the AB point distance during flying to adapt irregular shape

Technical data

Model No. M4E-G300 Pro
Tank Volume 30L

Work Efficiency		 2-3 hectare/10min

96~ 144 hectare/8 hours

Empty Weight
20.8KG

Max Take Off Weight
68.3KG
Flying
Full payload Flying Time 10-13min
Max Flying Time ≥20min
Flying Speed 0-8m/s
Flying Height 2000m
Landing approach Vertical take-off and landing
Anti-wind <8m/s
Positioning GPS&RTK
Spraying
Spray droplet diameter 170-265μm
Quantity of Nozzles 4pcs
Recommend Spray Speed 6-8m/s
Spray Width 6-9M
Spray Height 2-4M above crop
Battery
Power Capacity 30000mAh-53.2V
Weight 10.5KG
Discharge Rate 3C
IP IP56


Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection

Main Features

Features of M6E-G300 Agricultural Drone UAV
Cloud service
RTK Accurate positioning
Flight log playback
Flow rate control
Multiple operation modes
Obstacle avoidance
Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection
Automatic spraying mode

Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection
RTK accurate positioning system Accuracy:
Horizontal: ± 1cm + 1ppm Vertical: ±2cm + 1ppm
Function:
Make sure the field can be fully covered.
To avoid damage neighbour crop and pollution.
One base station supports multiple drones work at same time.
Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection

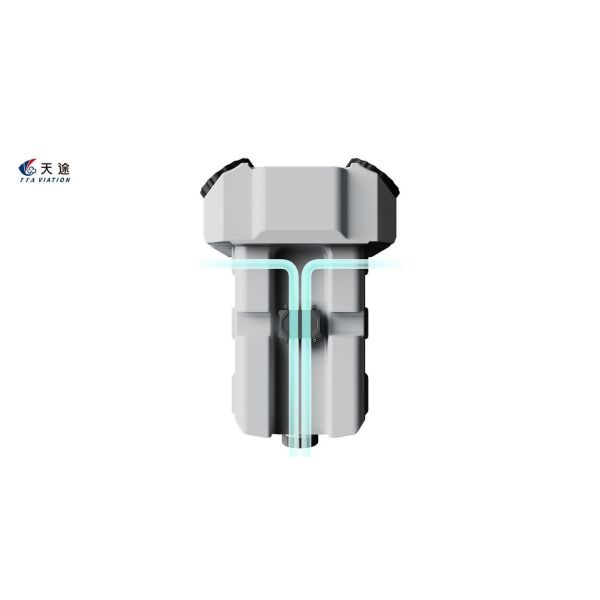

Spraying system
Double water pumps generate bigger pressure , max 8L/min adjustable flow rate.
Auxiliary tank can prevent the reverse flow of water from spraying system to achieve more precise flow counting.
Obstacle avoidance sensor
Equip front and back Obstacle avoidance sensor makes the drone has the ability to automatically detect obstacles to avoid unexpected crash and lose. The GCS presents the distance from the obstacles at the same time.


Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection

Terrain following module
To make the drone has the ability to work on undulating crop field and make the spraying work much easier.

FPV camera
Wide-angle FPV camera makes flying more safety !
Real time video monitoring let you know detail information of drone and your crop situation !
Dual LED light. Support night flight!

Details Images.
Agricultural Drone Supply Complete Spray Drone with Internal Threaded ConnectionAgricultural Drone Supply Complete Spray Drone with Internal Threaded Connection
WHY CHOOSE US?
Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection
HOT SELLING PRODUCTS

COMPANY STRENGTH
Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection
EXHIBITION DISPLAY
Agricultural Drone Supply Complete Spray Drone with Internal Threaded Connection


FAQ

Q: 1.How to fly the drones?

A: There are operating manual and video to teach the operation. You can also come to our company for free training.


Q: 2.Are your drone waterproof?

A: Yes, the drone is waterproof.


Q: 3.Does your agriculture drone can set routes?

A: Yes, you can set routes and AB point on your computer and mobile phone through ground control station.


Q:4.What capacity drone do you have?

A:We have 5, 10 and 20kg payload.


Q:5.How many hectares can the drone can cover one day?

A:From 30-50 hectares, depends on the capacity.


Q:6.Can the drone spray the high trees?

A:Yes, we designed the fogger drone.


Q:7.Can the drone spray the fertilizers and seeds?

A:Yes. we designed the 20kg agriculture spreader drone.


Q:8.Does it have the FPV camera and light?

A:Yes.


Q: 9.Which flight controller do you use?

A: We have our own flight controller.
