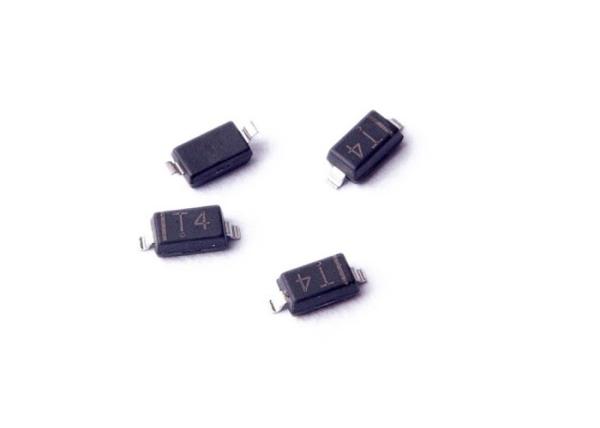

SOD-123 Plastic Package Small Signal Silicon SMD Zener Diode MMSZ5231 500mW 5.1 Volt
MMSZ5225 to MMSZ5267
SURFACE MOUNT ZENER DIODES
Zener Voltage: 2.4-75V Peak Pulse Power: 500mW

Product Drawing


500mW 5.1 5v 12v Zener Diode Smd Type MMSZ5231 MMSZ5242 SOD 123


Technical Parameters

Type Power Package
MM1W3V3L THRU MM1W110L 1 SOD-123FL
1SMA4728A THRU 1SMA4777A 1 SMA
1SMA5913A THRU 1SMA5957B 1.5 SMA
1SMB5913B THRU 1SMB5956B 3 SMB
ZMM55C2V4 THRU ZMM55C75
 0.5
MINI MELF
BZV55C2V4 THRU BZV55C75 0.5 MINI MELF
ZMM5221B THRU ZMM5263B
 0.5 MINI MELF
DL5221B THRU DL5263B 0.5 MINI MELF
DL4728A THRU DL4764A
 1 MELF


Product Features

Low zener impedance
Low regulation factor
Glass passivated junction
High temperature soldering guaranteed:
260 C/10S at terminals
Mechanical Data
Case: SOD-123 molded plastic body
Terminals: Solderable per MIL-STD-750, method 2026
Polarity: Color band denotes cathode end
Mounting Position: Any
Weight:0.01 grams(approximate)
ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
SYMBOLS
VALUE
UNITS
Power Dissipation at Tamb=25 C(Note 1)
Ptot
500
mW

Junction Temperature
Tj
 200 ℃
Storage Temperature Range
TSTG
-65 to + 200
 ℃
Thermal resistance junction ambient(Note 1)
RθJA
 0.3
K/mW
Forward voltage at IF=200mA
VF
 1.1 V
Note 1: Valid provided that leads at a distance of 10mm from case are kept at ambient temperature.
Device Type
Nominal Zener Voltage
Test Current
Maximum Zener Impedance
Maximum Reverse Leakage Current
Typical Temperature Coefficient
Maximum Regulator Current
Vz@IZT
IZT
ZZT@IZT
ZZK@IZK=0.25mA
IR
@VR
IZM
Volts
 mA
Ohms
 Ohms
µA
 Volts
%/ C
 mA
MMSZ5221
 2.4 20 30 1200 100 1.0
-0.085
191
MMSZ5222
 2.5 20 30 1250 100 1.0
-0.085
182
MMSZ5223
2.7 20 30 1300 75 1.0
-0.080
168
MMSZ5224
 2.8 20 30 1400 75 1.0
-0.080
162
MMSZ5225
 3.0 20 29 1600 50 1.0
-0.075
151
MMSZ5226
 3.3 20 28 1600 25 1.0
-0.070
138
MMSZ5227
 3.6 20 24 1700 15 1.0
-0.065
126
MMSZ5228
 3.9 20 23 1900 10 1.0
-0.060
115
MMSZ5229
 4.3 20 22 2000 5.0 1.0
±0.055
106
MMSZ5230
 4.7 20 19 1900 5.0 2.0
±0.030
97
MMSZ5231
 5.1 20 17 1600 5.0 2.0
±0.030
89
MMSZ5232
 5.6 20 11 1600 5.0 3.0
+0.038
 81
MMSZ5233
 6.0 20 7 1600 5.0 3.5
+0.038
 76
MMSZ5234
 6.2 20 7 1000 5.0 4.0
+0.045
 73
MMSZ5235
 6.8 20 5 750 3.0 5.0
+0.050
 67
MMSZ5236
 7.5 20 6 500 3.0 6.0
+0.058
 61
MMSZ5237
 8.2 20 8 500 3.0 6.5
+0.062
 55

MMSZ5238

 8.7 20 8 600 3.0 6.5
+0.065
 52
MMSZ5239
 9.1 20 10 600 3.0 7.0
+0.068
 50
MMSZ5240
 10 20 17 600 3.0 8.0
+0.075
 45
MMSZ5241
 11 20 22 600 2.0 8.4
+0.076
 41
MMSZ5242
 12 20 30 600 1.0 9.1
+0.077
 38
MMSZ5243
 13 9.5 13 600 0.5 9.9
+0.079
 35
MMSZ5244
 14 9.0 15 600 0.1 10
+0.082
 32
MMSZ5245
 15 8.5 16 600 0.1 11
+0.082
 30
MMSZ5246
 16 7.8 17 600 0.1 12
+0.083
 28
MMSZ5247
 17 7.4 19 600 0.1 13
+0.084
 27
MMSZ5248
 18 7.0 21 600 0.1 14
+0.085
 25
MMSZ5249
 19 6.6 23 600 0.1 14
+0.085
 24
MMSZ5250
 20 6.2 25 600 0.1 15
+0.086
 23
MMSZ5251
 22 5.6 29 600 0.1 17
+0.087
 21.2

MMSZ5252

 24 5.2 33 600 0.1 18
+0.088
 19.1
MMSZ5253
 25 5.0 35 600 0.1 19
+0.089
 18.2
MMSZ5254
 27 4.6 41 600 0.1 21
+0.090
 16.8
MMSZ5255
 28 4.5 44 600 0.1 21
+0.091
 16.2
MMSZ5256
 30 4.2 49 600 0.1 23
+0.091
 15.1
MMSZ5257
 33 3.8 58 700 0.1 25
+0.092
 13.8
MMSZ5258
 36 3.4 70 700 0.1 27
+0.093
 12.6
MMSZ5259
 39 3.2 80 800 0.1 30
+0.094
 11.5
MMSZ5260
 43 3.0 93 900 0.1 33
+0.095
 10.6
MMSZ5261
47 2.7 150 1000 0.1 36
+0.095
 9.7
MMSZ5262
 51 2.5 125 1100 0.1 39
+0.096
 8.9
MMSZ5263
 56 2.2 150 1300 0.1 43
+0.096
 8.1

Note 1: Suffix “B” indicate +5% tolerance
