Specifications
Model NO. :
ZZ3317N3567W
Drive Wheel :
6×4
Engine Capacity :
＞8L
Seats :
≤5
Horsepower :
351-450hp
Tire Certification :
ECE, GCC, ISO, DOT
Tire Design :
Radial
Dumping Type :
Front Lifting Style
Condition :
Used
Transport Package :
in Nude
Specification :
7300*2300*1700mm
Trademark :
HOWO
Origin :
China
HS Code :
8701300090
Supply Ability :
4000 Pieces Peryear
After-sales Service :
Yes
Warranty :
1 Year
Transmission Type :
Manual
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiable
Delivery Time :
within 15 workdays
Payment Terms :
LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Description

Product Description

HOWO Dump Truck Tipper Dumper Trucks of Sinotruk 8*4 12wheels

Dump Truck Main Specifications:

Model ZZ3317N3567W ZZ3317N3567W ZZ3317N3567W ZZ3317N3567W
Engine Euro2 336/371 336/371 336/371 336/371
(Euro3) (340/380) (340/380) (340/380) (340/380)
Cab A7-W Lengthen cab A7-W Lengthen cab A7-W Lengthen cab A7-W Lengthen cab
Transmission HW15710 HW15710 HW15710 HW15710
HW19710 HW19710 HW19710 HW19710
Front axle HF9 Disc HF9 Disc HF9 Disc HF9 Disc
Rear axle AC16 AC16 AC16 AC16
Steering ZF8098 ZF8098 ZF8098 ZF8098
Tyres 12.00R20 12.00R20 12.00R20 12.00R20
Dump box dimensions(mm) 7300*2300*1700mm 7300*2300*1700mm 7300*2300*1700mm 7300*2300*1700mm
Cubage (m3) 21.39 22.42 23.46 26.22
Steel thickness(mm) Floor:8/Side:6 Floor:8/Side:6 Floor:8/Side:6 Floor:8/Side:6
Hydraulic Lift Front Lift Front Lift Front Lift Front Lift
Cabin Driving type 6x4 LHD/RHD
A7-B Low-floor standard cab,no bunk,safety belts, MP5,air conditioner,Central door lock,
electric window lifter,Electric mirrors(with heating)
Wheel Base 7300*2300*1700mm
GVW 31000kg
Front axle loading capacity 2 x 9000
Rear axles loading capacity 2 x 16000
Engine Brand Sinotruk
Model ZZ3317N3567W
Type 6-cylinder in line,4-stroke,water-cooled,supercharging
intermediate cooler,high pressure common rail
Displacement 11.596L
Bore x Stroke 126x155mm
Horse Power (HP) 380
Emission standard Euro III
Max Speed 75 km/h
Tire 12.00-20, 12.00R20
Carriage The carriage can be heightening
Steel thickness of Carriage floor optional 8,10,12,14,16mm
Steel thickness of Carriage side optional 4,6,8,10,12,14mm
Ordinary steel,optional Manganese plate-Mn16,high strength steel
Carriage lifting mode 4800-5600mm middle lift F type and strengthening T type.
5600-5800mm front lift CHINA system and HYVA system
Transmission HW15710 or HW19710 transmission,10 forward and 2 reverse
Steering ZF8098
Oil Tank 400L
Brake System Service brake:dual circuit compressed air brake
Parking brake (emergency brake):spring energy,compressed air operating on rear wheels
Auxiliary brake:engine exhaust valve brake
Electrics Operating voltage:24V,negative grounded
Batteries:2x12 V,165 Ah
horn,headlamps,fog lights,brake lights,indicators and reverse light
Option ABS;Automatic Break Clearance Adjusting Arm;Traveling Data Recorder;Metal Pipeline;
Engine Protective Board;Guard grating for engine oil bottom case;all-metal front protection frame

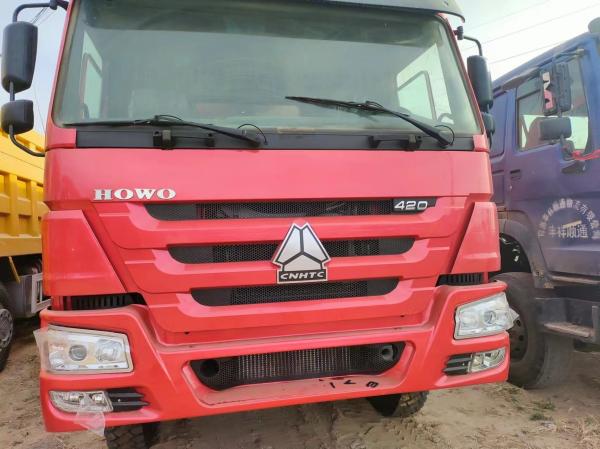

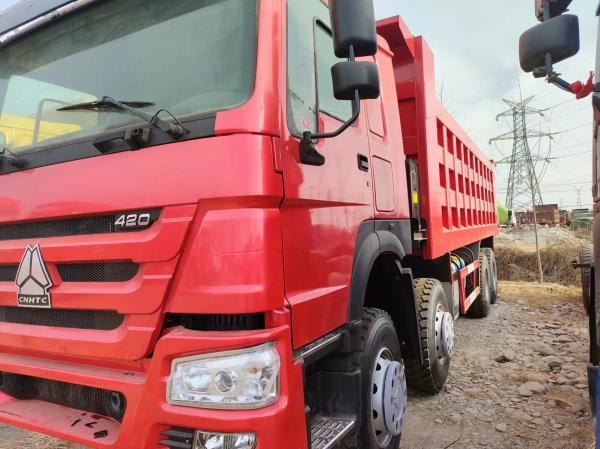

Dump Truck Photos
Sinotruck HOWO 8*4 Dump Truck High Loading Capacity for Heavy Duty Transportation NeedsSinotruck HOWO 8*4 Dump Truck High Loading Capacity for Heavy Duty Transportation NeedsSinotruck HOWO 8*4 Dump Truck High Loading Capacity for Heavy Duty Transportation NeedsSinotruck HOWO 8*4 Dump Truck High Loading Capacity for Heavy Duty Transportation Needs

SINOTRUK offers you great value for your money.
It comes without all the fancy items that only look impressive on the specification sheet, but aren't really needed in your daily operation. What you get is thought through and proven quality components that make these 8 x 4 dump truck reliable and easy to drive. Developed with the driver's comfort and safety in mind, you get exactly what you need: just a great truck. Simple and reliable.

1.1 Better aerodynamics with improved front
Improved aerodynamics : better fuel economy, which again improves your bottom line. Easy access for maintenance.

1.2 Ergonomically designed workspace
Ergonomically designed driver's seat: easy reach and access. Comfort for the operator. Design and layout of dashboard provides crucial information in view and all functions in easy reach.

1.3 A comfortable ride with air suspended seats
Air-suspended driver and passenger seats: relaxed and comfortable ride. Seats are fully adjustable, fitting the driver's body.

Packing&Delivery
Packing: Nude packing after painting wax or according to your requirement.
Delivery:bulk cargo carrier, RORO

Advantage:
1. Used truck export license
2. Strict quality management
Our company before delivery to our customers , every used truck will be checked strictly ,. the beginning "used truck optimum selection ,key
components detection and replacement ", the final "all-around debugging and comprehensive inspection ", every used truck exported to
customers will strived to be high quality and good performance .
3. On time delivery
Professional logistics team work with international shipping company for truck shipment successfully .
4 . We are direct selling , no middle man .

Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.
ZZ#$
Our product:
1. Favorable hydraulic tipping gear
2. Lowest vehicle shut height in china increases the stability performance when driving and unloading
3. Reasonable design for cargo box
4. Reinforced sub frame design can ensure the reliability when lift the cargo box to unload goods.
Sinotruck HOWO 8*4 Dump Truck High Loading Capacity for Heavy Duty Transportation Needs
Our company:
Liangshan zhongcheng deli trading co.LTD is located in Jinan city .It once manufactured china's first heavy duty truck. Our company belong to SINOTRUK sales department and we have specialized in sinotruk trucks and spare parts for many years.The famous brand of sinotruk are HOWO series,HOWO A7 series,HOHAN series.We can supply tractor truck,dump truck,cargo truck,concrete mixer truck,fire tanker truck,water truck,fuel tank truck,bulk cement truck,sewage suction truck and also different types of semi trailers.
In 1960,sinotruk introduced technology using on engine and axle from Austria.Later,sinotruk established cooperation with German man group and wobaco company.Today,sinotruk has developed into china's largest heavy duty truck manufacturing base and made significant contributions to the development of china's heavy duty truck industry and national economic growth.SINOTRUK has an annual output of 180,000 vehicles and 200,000 engines capacity.
We have not only the certificate and license of truck export and also strict quality management, fast and convenient channel of goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading goods, on-time delivery and competitive prices. If you want to buy these products, please contact us.
We sincerely hope to cooperate with you to expand market in your country!
