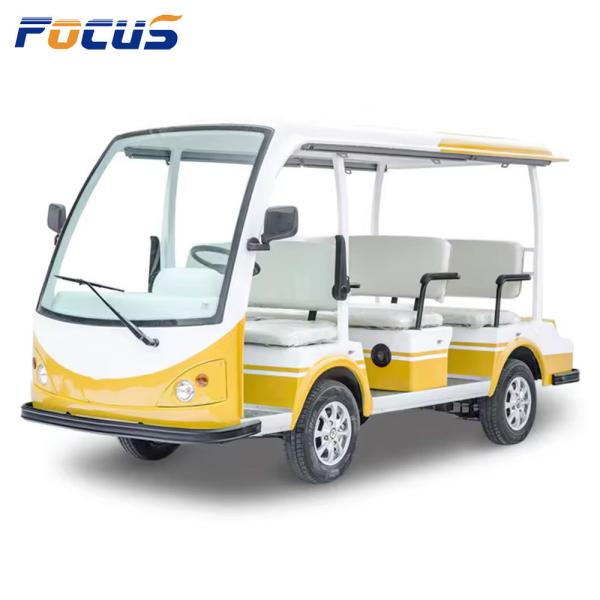

New Design Full Electric Sightseeing Bus 14 Seats Electric Shuttle Bus
New Design Full Electric Sightseeing Bus 14 Seats Electric Shuttle Bus
New Design Full Electric Sightseeing Bus 14 Seats Electric Shuttle Bus
New Design Full Electric Sightseeing Bus 14 Seats Electric Shuttle Bus
New Design Full Electric Sightseeing Bus 14 Seats Electric Shuttle Bus
New Design Full Electric Sightseeing Bus 14 Seats Electric Shuttle Bus
New Design Full Electric Sightseeing Bus 14 Seats Electric Shuttle Bus
New Design Full Electric Sightseeing Bus 14 Seats Electric Shuttle Bus
New Design Full Electric Sightseeing Bus 14 Seats Electric Shuttle Bus
New Design Full Electric Sightseeing Bus 14 Seats Electric Shuttle Bus
New Design Full Electric Sightseeing Bus 14 Seats Electric Shuttle Bus
New Design Full Electric Sightseeing Bus 14 Seats Electric Shuttle Bus
Specifications
Model NO. :
FCS-sightseeingcar
Seating Capacity :
14, 14
Application :
Factory, Station, Wharf, Port, Airport, Mall, Hospital, School, Villa, Pedestrian Street, Hotel, Golf Course, Amusement Park, Scenic Spot
Color :
Violet, Rose Red, Black, Yellow, Green, Blue, Red, White
Style :
Standard
Type :
Sightseeing Car
Maximum Number of Passengers :
11
Wheelbase (mm) :
3400
Wheelbase Front/Rear (mm) :
1280/1290
Floor Height From The Ground (mm) :
385
Curb Weight (Kg) :
1150
Minimum Ground Clearance (Full Load) mm :
130
Minimum Turning Radius (M) :
7.3
Motor Model :
Hpq10-96-18n Three-Phase AC Asynchronous
Rated Power(Kw) :
10
Rated Voltage(V) :
72
Charging Time (H) :
10~14
Maximum Speed (Km/H) :
30
Maximum Gradient (°/%) :
Maximum Gradient (°/%)
Driving Range (Empty/Full Load) (Km) :
100/80
Transport Package :
Nude Packing, to Beloaded Into 40hq Container
Specification :
5000*1530*1900
Trademark :
FOUCS
Origin :
China
HS Code :
8601200000
Production Capacity :
50000 Untis Per Year
Package Size :
520.00cm * 210.00cm * 210.00cm
Package Gross Weight :
3500.000kg
Description
New Design Full Electric Sightseeing Bus 14 seats With 72V AC Motor High Performance Electric Shuttle Bus
Product Description

New Design Full Electric Sightseeing Bus 14 Seats Electric Shuttle Bus

The electric sightseeing car is equipped large arc dedicated landscape glass, which has a wide field of vision, more comfortable and safe of driving. It's with beautiful appearance, widely used in tourist attractions, parks, schools, large playgrounds, golf course, resorts, villas, airports, docks and so on.
Detailed Photos

New Design Full Electric Sightseeing Bus 14 Seats Electric Shuttle BusNew Design Full Electric Sightseeing Bus 14 Seats Electric Shuttle BusNew Design Full Electric Sightseeing Bus 14 Seats Electric Shuttle BusNew Design Full Electric Sightseeing Bus 14 Seats Electric Shuttle BusNew Design Full Electric Sightseeing Bus 14 Seats Electric Shuttle BusNew Design Full Electric Sightseeing Bus 14 Seats Electric Shuttle BusNew Design Full Electric Sightseeing Bus 14 Seats Electric Shuttle BusNew Design Full Electric Sightseeing Bus 14 Seats Electric Shuttle BusNew Design Full Electric Sightseeing Bus 14 Seats Electric Shuttle BusNew Design Full Electric Sightseeing Bus 14 Seats Electric Shuttle Bus

Application Scene Display

New Design Full Electric Sightseeing Bus 14 Seats Electric Shuttle Bus

Product Parameters
Parameter category serial number Parameter name (unit) FCS2061 (AC 48V/72V) FCS08(72V-155Ah) FCSDM11(72V)
Carrying capacity 1 Maximum number of passengers (people) 5 8 11
Size parameters 2 Length*width*height (mm) 3350*1530*1870 4110*1530*1900 4660*1530*1900
3 Wheelbase (mm) 2130 2860 3400
4 Wheelbase front/rear (mm) 1280/1290 1280/1290 1280/1290
Quality parameters 5 Floor height from the ground (mm) 350 390 385
6 Curb weight (kg) 800 1340 1150
7 Maximum total mass (kg) 1310 2020 2085
passability parameters 8 Minimum ground clearance (full load) mm 140 130 130
9 Minimum turning radius (m) 4.75 6.3 7.3
10 Approach/departure angle (°) 33.2/34.2 31.4/35.6 28.9/31.2
Dynamic parameters 11 motor model HPQ5-48-18N three-phase AC asynchronous HPQ10-96-18N three-phase AC asynchronous HPQ10-96-18N three-phase AC asynchronous
12 Rated power(kw) 5 10 10
13 Rated voltage(V) 48/72 72 72
14 Power battery pack configuration features 48V150Ah lead acid/72V155Ah 72V155Ah lead acid 72V155Ah lead acid
15 Charging time (h) ≤14 10~14
16 Maximum speed (km/h) 30 30 30
17 Maximum gradient (°/%) 11.3/20 11.3/20
18 Driving range (empty/full load) (km) 105/90;140/125 200/150 100/80
