Specifications
Brand Name :
SMARTWEIGH
Model Number :
HTW-B5
Place of Origin :
China
Certification :
ISO/CE/SGS
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
2000 Sets/Month
Delivery Time :
3-5 weeks
Packaging Details :
Foam and Carton
Type :
Explosion-proof Platform Scales
Maximum Capacity :
150Kg
Readability :
50g
Maximum Display Resolution :
1/100,000
Platform Size :
300*400mm
Material :
Platform: Aluminum Terminal: Plastic
Interfaces :
RS232
Repeatability, typical :
50g
Customization :
Available
Description

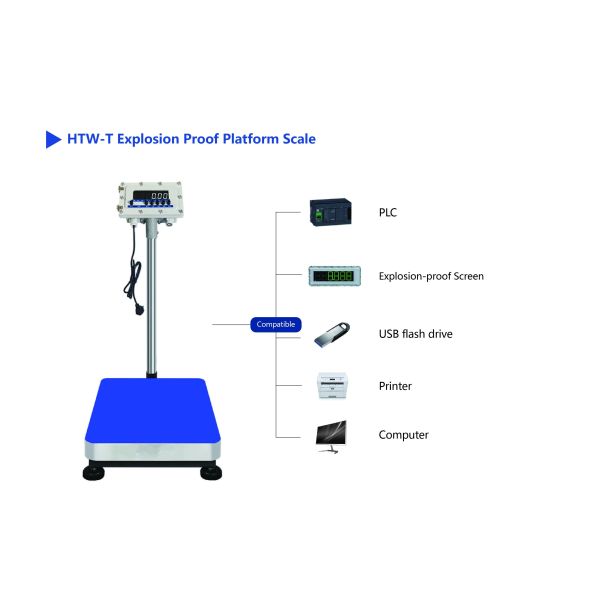

HTW-T Explosion Proof Platform Scale
Robust Explosion Proof Platform Scales 150KG Aluminium Industrial Platform Weighing Scale
Main Features

1. Die-casted Aluminum alloy shell with plastic-sprayed surface

2. 6-digit white LED readout, 25mm digit height

3. Rugged membrane keyboard

4. High-precision 24-bit A/D converter, with higher measurement accuracy

5. Basic weighing, check weighing, simple counting, animal weighing, and peak weighing

6. Dual independent serial communication interfaces; multiple built-in communication protocols

7. Built-in lithium battery for power supply; AC and DC dual-use

8. Standard RS232 communication interface

9. Standard equipped with a three-color alarm light output interface for weight checking

10. Data of weighing can be saved and summarized through USB flash memory module


More specifications and sizes, higher display precision, and customization is available.

Technical Specifications
Max capacity 100kg 150kg 200kg 300kg
Readability 20g 50g 50g 100g
Optional Accessories
  • Bluetooth communication;
  • WIFI communication;
  • Ethernet communication;
  • RS485 industrial bus interface;
  • Analog output interface;
  • USB flash disk memory module;
  • RFID card readier module

Robust Explosion Proof Platform Scales 150KG Aluminium Industrial Platform Weighing Scale

Operating Conditions
Temp: -10°C to +40°C
Humidity: 35–85% RH
No condensation
Indoor use
Altitude: <2000m
Maximum Display Resolution
1/100,000
Readability
50g
Material
Platform: Aluminum
Terminal: Plastic
Protection Rating
IP54 Terminal
IP65 Platform
Scale Interface
Analog

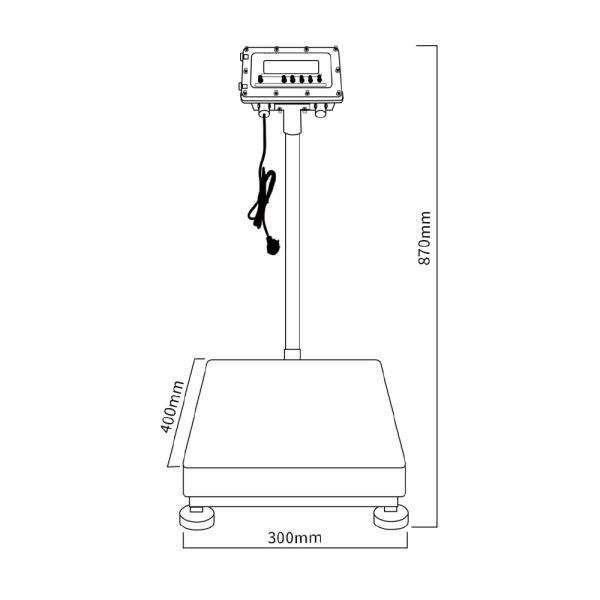

Platform Size (LxHxw)
300*400mm
Display
6 segment LCD with backlight
Interfaces
RS232
Repeatability, typical
50g
