Push Level Rejection Checkweigher Scale 110-220V For Electronics Assembly Line
Push Level Rejection Checkweigher Scale 110-220V For Electronics Assembly Line
Push Level Rejection Checkweigher Scale 110-220V For Electronics Assembly Line
Push Level Rejection Checkweigher Scale 110-220V For Electronics Assembly Line
Specifications
Brand Name :
SMARTWEIGH
Model Number :
CW600
Certification :
ISO/CE/SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
500 Sets/Month
Delivery Time :
3-5 weeks
Packaging Details :
Foam and Carton
Type :
Checkweigher Scales
Checking Range :
≤40kg
Accuracy :
±5g~±20g
Power Supply :
110-220V
Minimun Scale :
1g
Belt Speed :
10~50m/min
Description
Ultra-Accurate Push-Level Rejection Checkweigher Scale for Electronics Assembly Line Quality Control

The Ultra-Accurate Push-Level Rejection Checkweigher Scale is designed for the electronics manufacturing industry,
ensuring precise weight verification during assembly. This high-performance checkweigher uses a push-level rejection system
to automatically remove any products or components that do not meet the required weight standards. By preventing defective
items from progressing on the assembly line, it ensures product consistency, improves operational efficiency, and helps meet
stringent quality control regulations.

Main Features:

  • Adjustable Height: Easily integrates with existing production lines.
  • Sturdy and Robust Construction: Built to last and withstand industrial environments.
  • User-Friendly Touch Screen: Onboard touch screen with password protection for secure operation.
  • Product Setup Storage: Can store up to 99 product setups for quick configuration.
  • Production Data Recording: Records up to 1 year of production data, with export options to USB flash drives.
  • Optional Bluetooth Connectivity: For enhanced communication and data transfer.
  • Multi-Machine Connectivity: Ability to connect and control multiple machines through one PC for streamlined operations.

—— TECHNIQUE SPECIFICATION ——

SMARTWEIGH INSTRUMENT CO., LTD.


Name
Ultra-Accurate Push-Level Rejection Checkweigher Scale for Electronics Assembly Line Quality Control
Single Weighing Scope
≤40kg
Accuracy
±5g~±20g
Belt Speed
10-50m/min
Maximum Speed
35pcs/min
Suitable Product Dimensions
<650mm*530mm
Weighing Belt Dimension
1200mm*600mm(W)
Power Supply
AC 220V ±10% 50HZ
Type
Checkweigher

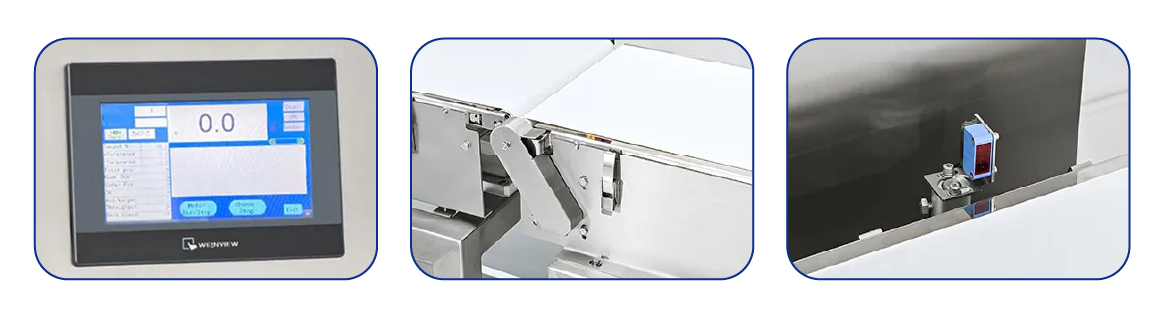

—— PRODUCT DETAILS ——

SMARTWEIGH INSTRUMENT CO., LTD.

Push Level Rejection Checkweigher Scale 110-220V For Electronics Assembly Line


Push Level Rejection Checkweigher Scale 110-220V For Electronics Assembly Line

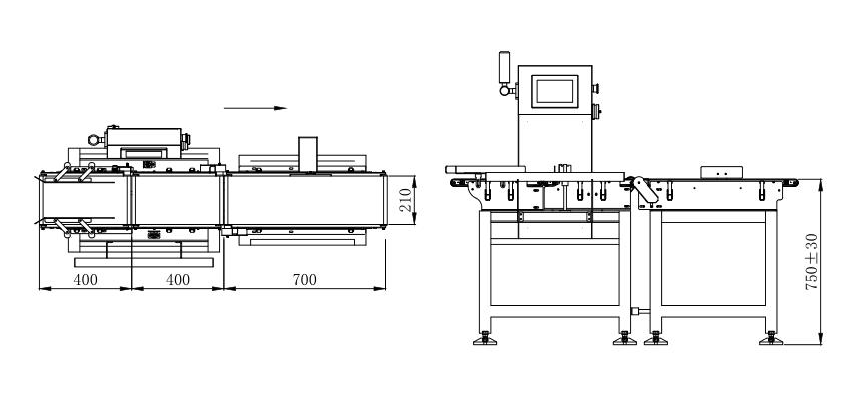

—— PRODUCT SIZE ILLUSTRATION——

SMARTWEIGH INSTRUMENT CO., LTD.

Push Level Rejection Checkweigher Scale 110-220V For Electronics Assembly Line

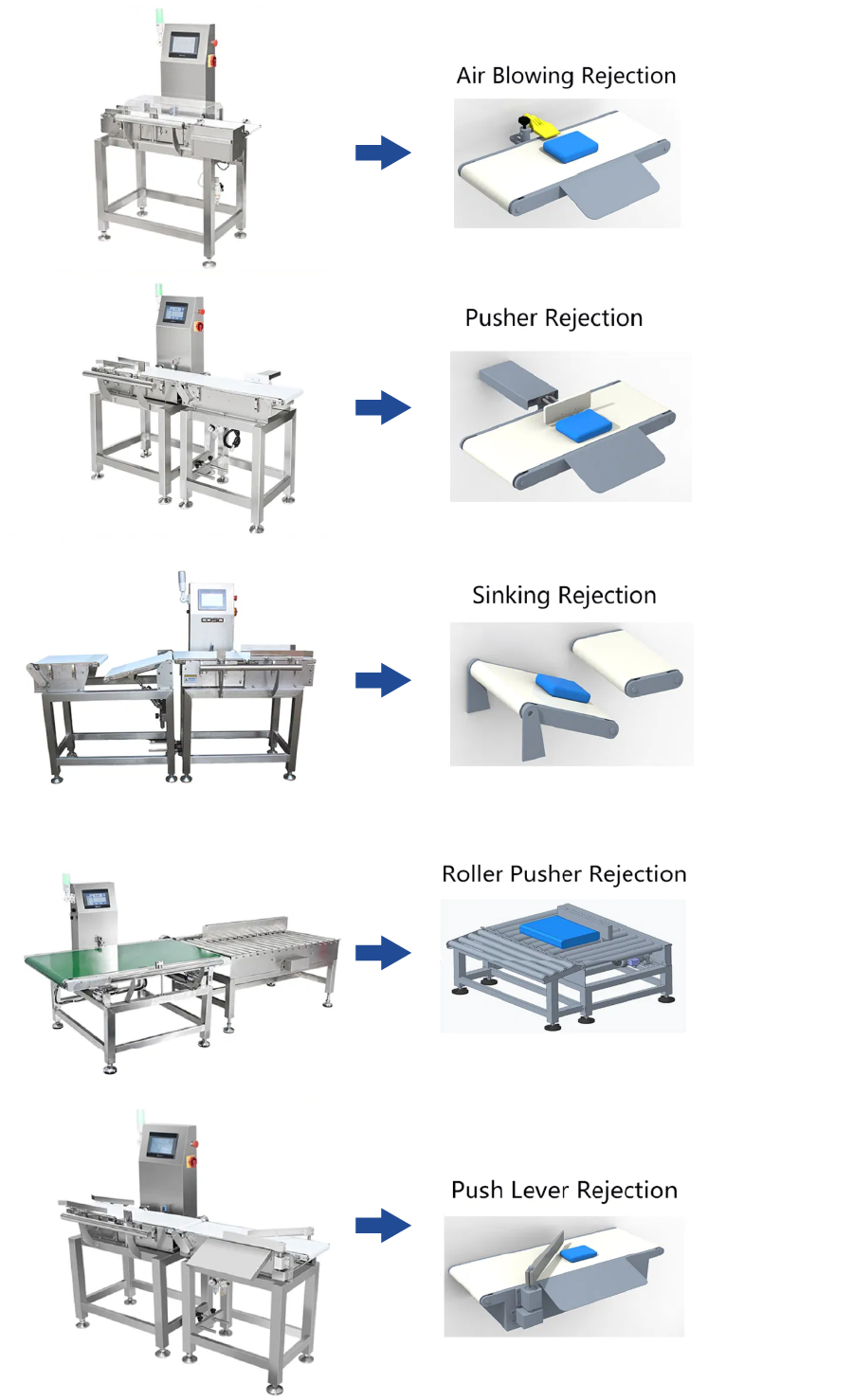

—— APPLICATION SHOWCASE——

SMARTWEIGH INSTRUMENT CO., LTD.

Push Level Rejection Checkweigher Scale 110-220V For Electronics Assembly Line

—— PACKAGEING AND DELIVERY ——

SMARTWEIGH INSTRUMENT CO., LTD.
Push Level Rejection Checkweigher Scale 110-220V For Electronics Assembly Line
Delivery: We support professional packaging and worldwide delivery, including leading international carriers like DHL, FedEx, and UPS.
