Precision 5T to 50T Tank Hopper Silo Weighing System with Column Weighing Module Load Cells
Precision 5T to 50T Tank Hopper Silo Weighing System with Column Weighing Module Load Cells
Precision 5T to 50T Tank Hopper Silo Weighing System with Column Weighing Module Load Cells
Precision 5T to 50T Tank Hopper Silo Weighing System with Column Weighing Module Load Cells
Precision 5T to 50T Tank Hopper Silo Weighing System with Column Weighing Module Load Cells
Precision 5T to 50T Tank Hopper Silo Weighing System with Column Weighing Module Load Cells
Specifications
Brand Name :
SMARTWEIGH
Model Number :
WM8007
Certification :
ISO/CE/SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
,T/T,L/C,Western Union,MoneyGram
Supply Ability :
500 Sets/Month
Type :
Weighing Modules
Capacity :
5T~.05T
Protection Class :
IP67/IP68
Material :
Alloy Steel
Safe Overload :
120%F.S
Sensitivity :
2.0±0.002mV/V
Accuracy class :
C2~C5
Customization :
Avaliable
Description
Precision 5T to 50T Tank Hopper Silo Weighing System with Column Weighing Module Load Cells

With a wide load capacity range from 5T to 50T, these load cells deliver exceptional performance in dynamic environments where material flow, shifting loads, and vibrations are common. Engineered for durability, the sensor modules are built to withstand harsh industrial conditions, offering accurate measurements for inventory control, batch processing, and material handling. Suitable for a variety of industries, including food processing, chemicals, pharmaceuticals, and bulk material handling, this load cell system ensures consistent reliability and optimal efficiency in every application.


Main Features
  • High Load Capacity-Supports up to 50 tons, ideal for large-scale silos, hoppers, and tanks.
  • Dynamic Weighing-Accurate under dynamic conditions, handling shifting loads and material flow.
  • Durability-Built with stainless steel or alloy steel, offering IP67/IP68 protection for harsh environments.
  • Temperature Compensation-Automatic adjustments for temperature variations to maintain accuracy.
  • Easy Integration-Compatible with PLC, SCADA, and MES systems for real-time data and control.

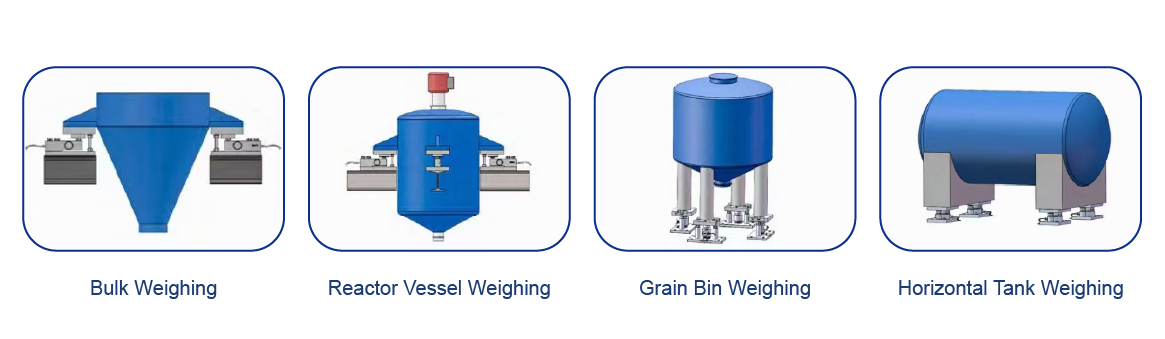

Application

Precision 5T to 50T Tank Hopper Silo Weighing System with Column Weighing Module Load Cells

—— TECHNIQUE SPECIFICATION ——

SMARTWEIGH INSTRUMENT CO., LTD.


Name Precision 5T to 50T Tank Hopper Silo Weighing System with Column Weighing Module Load Cells
Capacity

10/20/30/40/50t
Sensitivity 2.000mV/V
Accuracy class C2~C5
Temperature Range Compensated -20℃-+70℃
Protection Class IP67/IP68
Material Alloy Steel or Stainless Steel
Safe Overload 120%F.S
Type Weighing Module

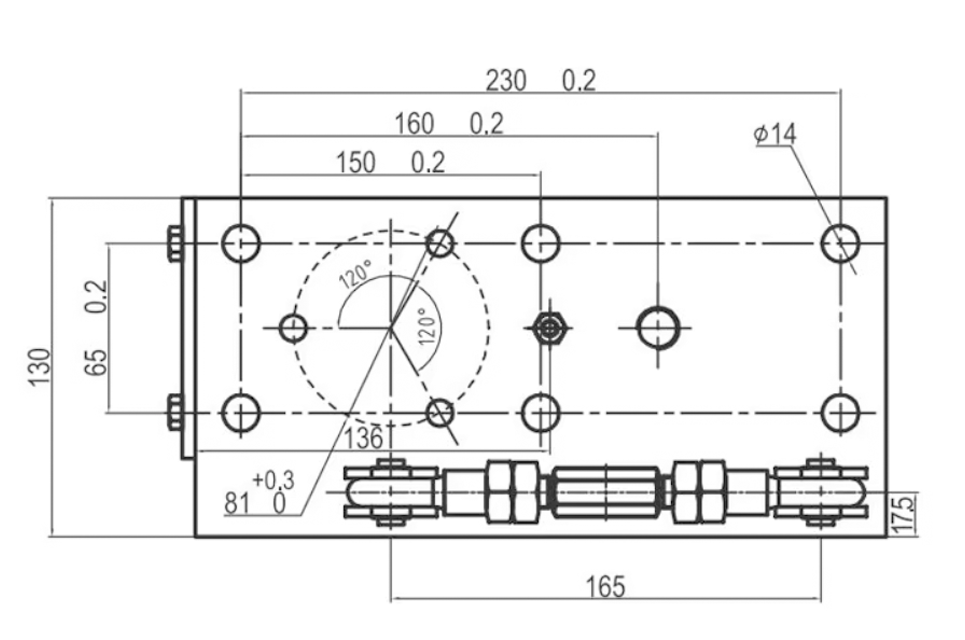

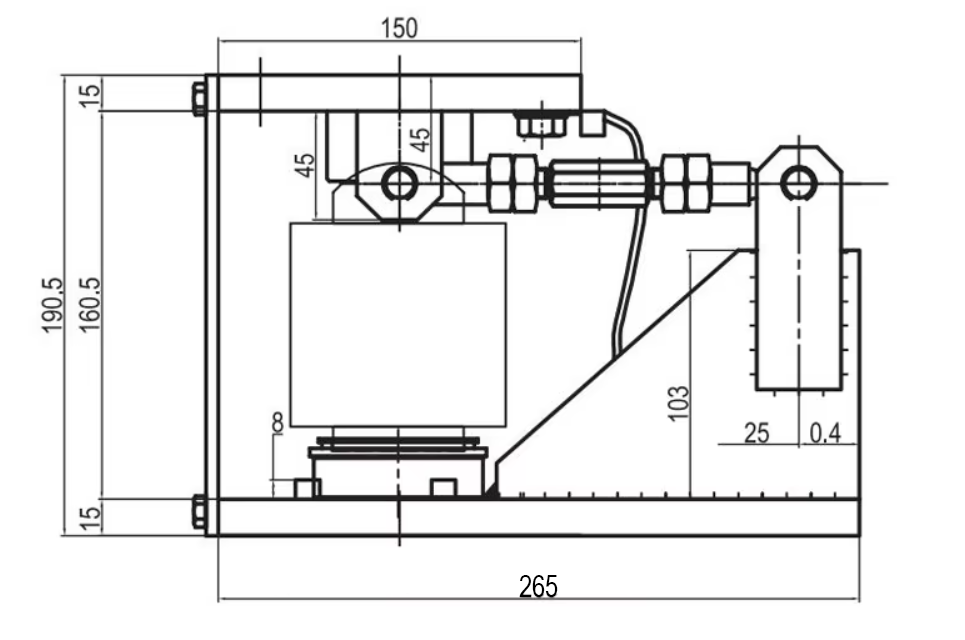

—— PRODUCT SIZE ILLUSTRATION ——

SMARTWEIGH INSTRUMENT CO., LTD.



Precision 5T to 50T Tank Hopper Silo Weighing System with Column Weighing Module Load CellsPrecision 5T to 50T Tank Hopper Silo Weighing System with Column Weighing Module Load Cells

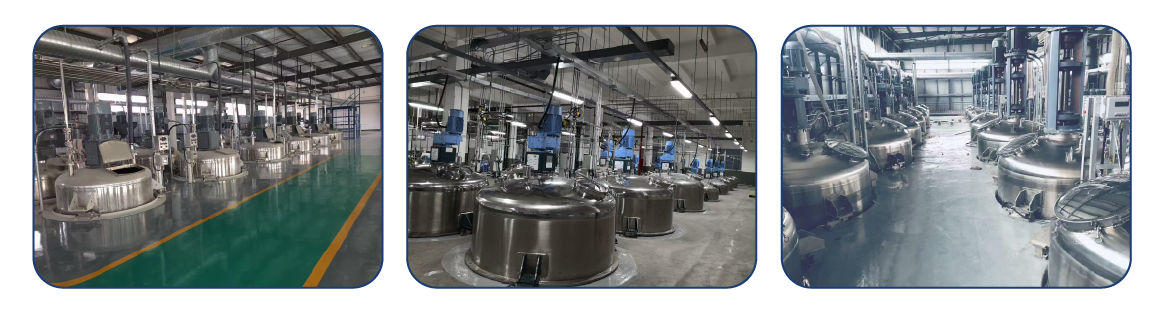

—— APPLICATION SHOWCASE ——

SMARTWEIGH INSTRUMENT CO., LTD.
Precision 5T to 50T Tank Hopper Silo Weighing System with Column Weighing Module Load Cells

—— DELIVERY ——

SMARTWEIGH INSTRUMENT CO., LTD.

Delivery: We support professional packaging and worldwide delivery, including leading international carriers like DHL, FedEx, and UPS.
