Industrial Junction Box Load Cell IP67 250kg - 5T Floor Platform Scale Load Cell
Industrial Junction Box Load Cell IP67 250kg - 5T Floor Platform Scale Load Cell
Industrial Junction Box Load Cell IP67 250kg - 5T Floor Platform Scale Load Cell
Industrial Junction Box Load Cell IP67 250kg - 5T Floor Platform Scale Load Cell
Specifications
Brand Name :
SMARTWEIGH
Model Number :
B8D
Certification :
ISO/CE/SGS
Place of Origin :
China
MOQ :
1 sets
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
500 Sets/Month
Delivery Time :
3-8 weeks
Packaging Details :
Foam and Carton
Type :
Junction Box Load Cell
Capacity :
250kg~5T
Material :
Aolly Steel/Stainless Steel
Overload Capacity :
150%F·S
Customization :
Available
Protection Class :
IP67
Description

IP67 Rated Stainless Steel Shear Beam Load Cell 250kg to5T Industrial Grade for Floor Platform Scales


The ZEMIC B8D is a high-performance stainless steel shear beam load cell designed for precise weight measurement

across a capacity range of 250kg to 5t. Approved by OIML and compliant with multiple international certifications, including

CE, UKCA, and optional ATEX, this load cell boasts an IP67 protection rating, ensuring reliability in diverse environmental

conditions. Engineered for versatility, it is ideal for integration into floor scales, platform scales, hopper and tank scales,

patient lifts, and other industrial or commercial weighing systems. With available calibration options and comprehensive

test certificates, the B8D delivers accurate, consistent performance for critical weighing applications.


Main Features:

  • Durable Construction:
    Crafted from stainless steel, offering corrosion resistance and long-term durability.
  • Wide Capacity Range:
    Covers 250kg to 5t, with model variants (e.g., C3, C6 accuracy classes) to meet specific precision needs.
  • International Certifications:
    OIML-approved, with CE and UKCA compliance, and optional ATEX certifications for hazardous environments.
  • IP67 Protection Rating:
    Dust-tight and waterproof, suitable for use in harsh or wet operating conditions.
  • Versatile Applications:
    Perfect for floor scales, platform scales, hopper/tank scales, patient lifts, and other weighing equipment.

—— TECHNIQUE SPECIFICATION ——

SMARTWEIGH INSTRUMENT CO., LTD.


Name
IP67 Rated Stainless Steel Shear Beam Load Cell 250kg to5T Industrial Grade for Floor Platform Scales
Maximum Capacity
250kg~5T
Material
Aolly Steel/Stainless Steel
Repeatability
0.01%F.S
Operating Temp Range
-20~+70℃
Overload Capacity
150%F·S
Protection Class
IP68
Type
Junction Box Load Cell

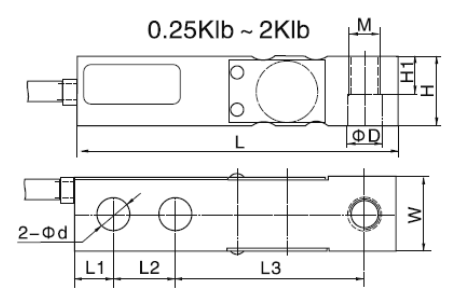

—— PRODUCT SIZE ILLUSTRATION ——

SMARTWEIGH INSTRUMENT CO., LTD.

Industrial Junction Box Load Cell IP67 250kg - 5T Floor Platform Scale Load CellIndustrial Junction Box Load Cell IP67 250kg - 5T Floor Platform Scale Load Cell

—— DELIVERY ——

SMARTWEIGH INSTRUMENT CO., LTD.

Delivery: We support professional packaging and worldwide delivery, including leading international carriers like DHL, FedEx, and UPS.
