Specifications
Model Number :
CLW
Machinery Test Report :
Provided
Wheel base :
3360mm
Showroom Location :
Vietnam, Philippines, Peru, Indonesia, Pakistan, Thailand, Kenya, Chile, Algeria, Sri Lanka, Bangladesh, Nigeria
Supply Ability :
50unit per month
Transmission Type :
Manual
Gross Vehicle Weight :
6500
Volume :
5CBM
Payment Terms :
50% Deposit,Balance should be paid before ship out
Type :
Swing arm
Warranty :
1 Year, One Year
Emission Standard :
Euro 3
Size :
6050×2180×2650mm
Weight (KG) :
3520 kg
Warranty of core components :
1 Year
Place of Origin :
CHINA
Name :
Swing arm garbage truck
Condition :
New
Price :
15000-35000 per unit
Drive Wheel :
4X2
Fuel Type :
Diesel
Chassis brand :
HOWO
Marketing Type :
New Product 2026
System of loading :
Mechanized, rear loading
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Construction works , Advertising Company, environmental management
Engine Emission :
Euro 3
MOQ :
1
Core Components :
Engine, Gearbox, Pump
Maximum speed :
90km/h
Engine Capacity :
3760ml
Brand Name :
CLW
Video outgoing-inspection :
Provided
Engine model/HP :
YN4102QBZL/116HP
Front/rear suspension :
1160/1505mm
Chassis model :
ZZ1047D34
Description

5m3 Swing arm garbage truck 4X2 HOWO Suitable for construction sites / municipal sanitation

Product Description
  • Trash bin volume 5000 L; made by carbon steel plate; side plate is 4mm thickness, base plate is 5mm thickness;
  • The hydraulic control system supports manual operation, with a set of control buttons located at the rear of the cab.
  • This specialized sanitation vehicle is designed for the independent lifting, loading/unloading, and tipping of standardized waste bins; its core features include a detachable container system (one truck serving multiple bins) and a self-dumping capability.
  • Loading time is less than 30 seconds, and unloading time is less than 40 seconds.
  • It is equipped with an imported PLC integrated control system, and the vehicle's electrical system and hydraulic pipeline components utilize imported parts.
Chassis parameters
Chassis parameters
Chassis model ZZ1047D3414C145 Chassis brand HOWO
Overall dimensions 5895×1980×2350 Wheel base 3360mm
Front/rear wheel track 1610/1655mm Front/rear suspension 1160/1505mm
Approach/departure angle 19/26° Maximum speed 90km/h
Chassis Manufacturer China National Heavy Duty Truck Group Commercial Vehicle Co., Ltd.
Cab Configuration single row cab,allowable 3 passengers,air conditioner, USB radio interface,cab can be flipped.
Color White,other color is optional




Engine

 Model YN4102QBZL
Emission Euro 3
Type 4 cylinders,4 valve,4-stroke,in-line,common rail,precision electronic control,multistage injection,optimal combustion,exhaust gas recirculation, diesel engine.
Rated power 116hp
Displacement 3760ml
Tire Size 7.00R16 Tubeless Tire

Number 6+1 nos
Frame 216*70(6+3)mm
Front axle 2.4tons
Rear axle 4.2 tons
Drive form 4*2
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions WLY6TS55C transmission,6 speed forward 1 reverse.

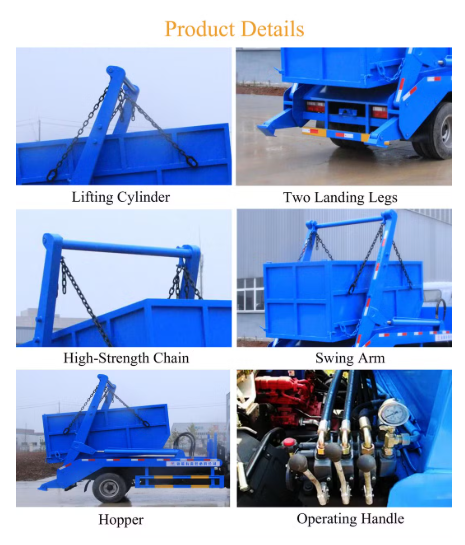

Product Images
