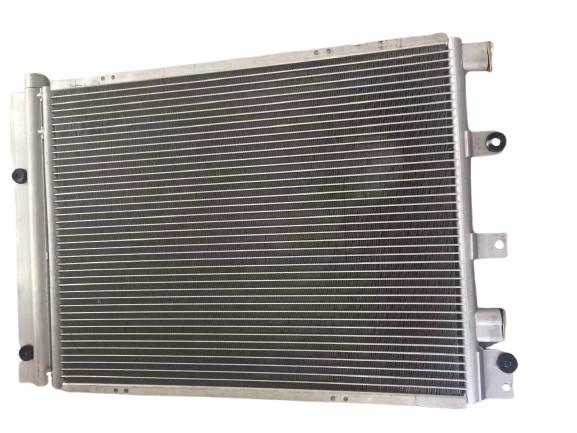

Function, Specifications, Materials, and Key Parameters of DZ15221845033 Condenser Assembly

1. Function

The DZ15221845033 condenser assembly is a critical component in the vehicle's air conditioning system, designed to facilitate heat exchange between the refrigerant and the surrounding air. Its primary role is to convert high-pressure, high-temperature refrigerant gas from the compressor into a high-pressure liquid state by dissipating heat to the ambient environment. This process ensures efficient cooling of the air that is then circulated into the vehicle cabin, providing a comfortable driving environment for passengers.

2. Specifications

• Part Number: DZ15221845033

• Brand: Designed for use in specific vehicle models, likely from manufacturers such as Shaanxi Automobile Group or other heavy-duty commercial vehicle producers

• Model: Specifically tailored for the air conditioning system of heavy-duty commercial vehicles

• Type: Condenser assembly for vehicle air conditioning systems

• Configuration: Includes condenser core, housing, inlet and outlet tubes, and other components necessary for heat exchange

3. Materials

• Condenser Core: Constructed from aluminum fins and tubes to ensure efficient heat exchange, lightweight design, and corrosion resistance

• Housing: Made from high-quality plastic or metal to protect the condenser core and provide structural integrity

• Seals and Gaskets: Utilize rubber or other sealing materials to prevent refrigerant leakage and ensure airtight operation

4. Key Parameters

• Heat Exchange Capacity: Designed to provide sufficient cooling capacity for the vehicle's cabin, typically rated in kilowatts (kW) or British Thermal Units per Hour (BTU/h)

• Refrigerant Type: Compatible with R134a or other refrigerants commonly used in automotive air conditioning systems

• Operating Pressure Range: Designed to operate safely within a specified pressure range, typically between 0.2 to 3.0 MPa

• Operating Temperature Range: Designed to function effectively in various environmental conditions, typically between -30°C to +120°C

• Air Flow Rate: Determines the rate at which cooled air is delivered to the vehicle cabin, typically measured in cubic meters per hour (m³/h) or cubic feet per minute (CFM)

• Dimensions: Specific dimensions may vary based on the vehicle's design and space constraints, but typically tailored to fit within the vehicle's air conditioning system layout

• Weight: The weight of the condenser assembly may vary slightly based on materials and design, but it is typically lightweight for ease of installation and reduced vehicle weight

• Compatibility: Specifically designed for use with certain vehicle models, ensuring seamless integration and optimal performance
