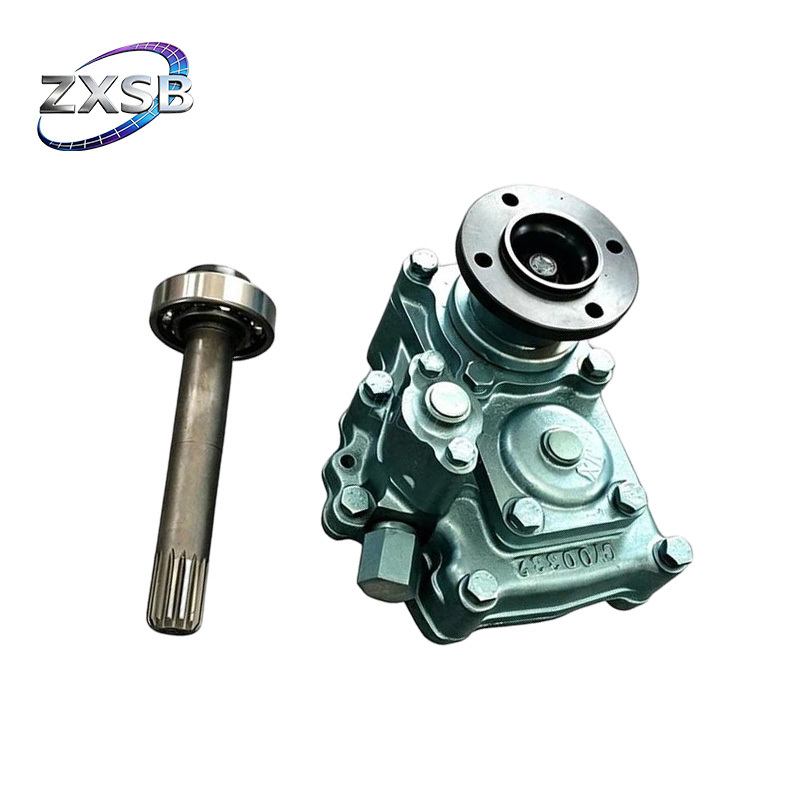

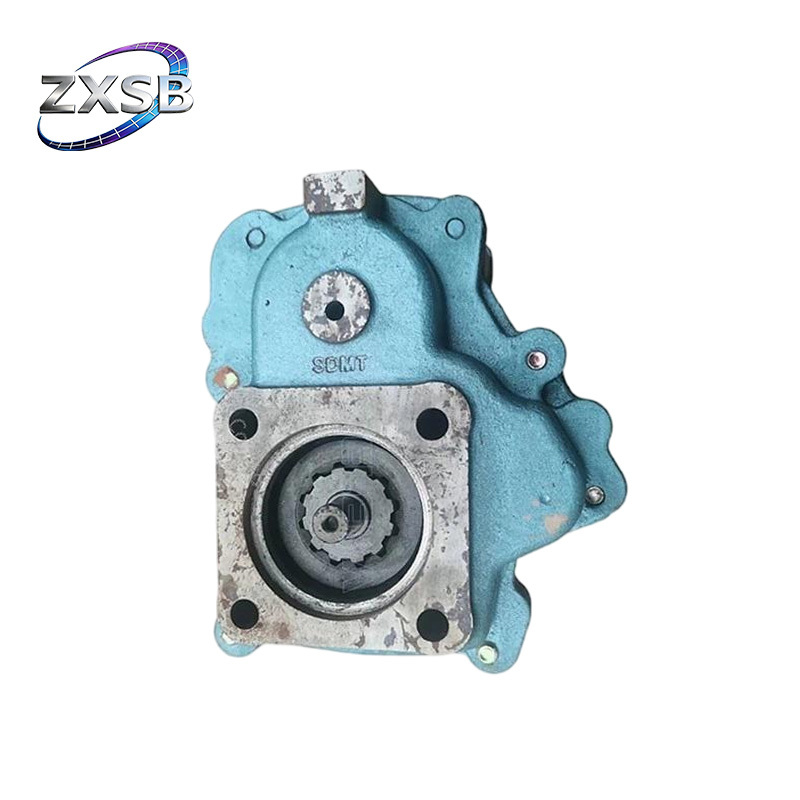

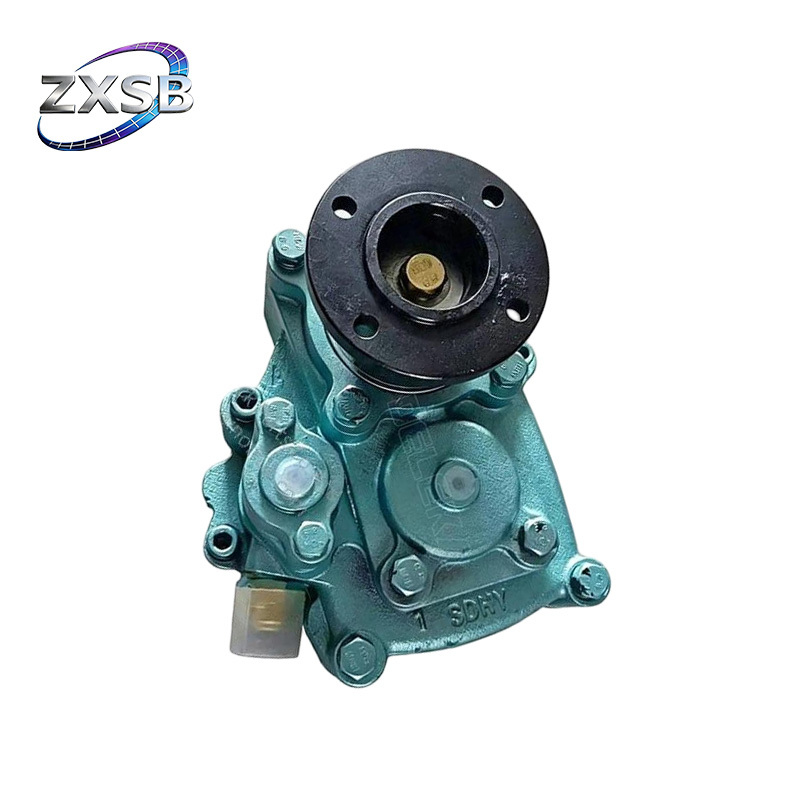

SINOTRUK HOWO HW50 PTO Assembly WG9700290010 Heavy Duty Truck Transmission / Power Take-Off System Parts
SINOTRUK HOWO HW50 PTO Assembly WG9700290010 Heavy Duty Truck Transmission / Power Take-Off System Parts
SINOTRUK HOWO HW50 PTO Assembly WG9700290010 Heavy Duty Truck Transmission / Power Take-Off System Parts
SINOTRUK HOWO HW50 PTO Assembly WG9700290010 Heavy Duty Truck Transmission / Power Take-Off System Parts
SINOTRUK HOWO HW50 PTO Assembly WG9700290010 Heavy Duty Truck Transmission / Power Take-Off System Parts
SINOTRUK HOWO HW50 PTO Assembly WG9700290010 Heavy Duty Truck Transmission / Power Take-Off System Parts
Specifications
Model Number :
WG9700290010
MOQ :
1PCS
Delivery Time :
3-5days
Payment Terms :
L/C,D/A,D/P,T/T
Availability :
In stock
Shipping :
Courier/Air Freight/Sea Freight or According to customer requirements
Payment :
T/T,,Alipay
Price :
negotiation
Supply Ability :
500PCS
Service :
24 Hours Online Service
Applicable Model :
For SINOTRUK HOWO 7、HOWO-A7、HOWO-TX、HOWO-MAX
Brand Name :
SINOTRUK HOWO
Warranty :
6 months
Product Name :
Power Take-Off Assembly
Packaging Details :
Unified cardboard, packaging with bubble wrap inside and wrapped with film outside. Large items can be palletized or packaged according to customer needs
Material :
High-Strength Cast Iron / Nodular Cast Iron
Certification :
CQC URS CE
Package :
Customer Requirements/neutral Packaging/brand Packaging
Purpose :
For replace/repair
Place of Origin :
China
Description


Heavy Duty Truck Transmission / Power Take-Off System Parts SINOTRUK HOWO HW50 PTO Assembly WG9700290010



The WG9700290010 HW50 Power Take-Off Assembly is a mechanical power transfer component installed on the truck transmission. It allows mechanical power from the transmission to be directed to an auxiliary system when the vehicle is equipped with PTO-driven equipment. A PTO is used when a truck needs to operate equipment that does not rely solely on the vehicle's normal driving functions. Depending on the vehicle application, the PTO can provide mechanical power for equipment such as hydraulic pumps and other auxiliary machinery. This makes the transmission PTO interface an important part of many vocational truck configurations. The PTO operates through the transmission's mechanical power path. When engaged, the PTO receives rotational power from the transmission and transfers it through its output connection to the auxiliary equipment. Proper gear engagement, lubrication, and installation are therefore important for stable operation. The WG9700290010 PTO assembly is suitable for transmission repair, PTO replacement, and maintenance of heavy-duty trucks equipped with compatible HOWO transmissions. It is particularly relevant to trucks that use auxiliary hydraulic or mechanical equipment and require a reliable transmission-mounted power output.



Product Specification


Product Name

Power Take-Off Assembly

Applicable Transmission

HW19710 / HW19710T and compatible HOWO transmission configurations
Part Number

WG9700290010
PTO Model

HW50
Transmission Application

HW19710 / HW19710T
Condition New
Origin China
Quality Standard 100% Tested
Quality Certification ISO, CCC, GSO, CE, SGS, TUV
Weight 12.0 KG
Dimensions

250 mm × 250 mm × 200 mm

SINOTRUK HOWO HW50 PTO Assembly WG9700290010 Heavy Duty Truck Transmission / Power Take-Off System Parts SINOTRUK HOWO HW50 PTO Assembly WG9700290010 Heavy Duty Truck Transmission / Power Take-Off System Parts

Ordering & Shipping Information
Packing Options
Carton, Wooden Box, Pallet
Shipping Methods
Courier / Air Freight / Sea Freight
Payment Terms
L/C, T/T, , PayPal, , Alipay
Loading Port
Any Port in China

FAQ


Q1: What equipment can a truck PTO drive?

Depending on the PTO output configuration and vehicle design, it can provide mechanical power for hydraulic pumps, dump-body systems, concrete equipment, tank equipment, and other auxiliary machinery. The driven equipment must match the PTO's output characteristics.





Q2: What are common signs of a PTO problem?

Typical symptoms include abnormal mechanical noise, vibration, difficult engagement, unstable auxiliary equipment operation, oil leakage around the PTO housing or unusual temperature during operation. The PTO and transmission should be inspected together because problems can also originate from the gearbox.





Q3: Can insufficient transmission oil affect PTO operation?

Yes. The PTO is mechanically connected to the transmission and relies on the appropriate lubrication conditions of its internal components. Insufficient or unsuitable lubricant can increase friction and temperature and accelerate component wear.





Q4: Can the PTO remain engaged while the truck is driving?

This depends on the truck and auxiliary equipment configuration. PTO engagement procedures should follow the vehicle and PTO manufacturer's operating requirements. Incorrect engagement during unsuitable driving conditions can increase mechanical load on the transmission and auxiliary systems.
