SINOTRUK SITRAK C7H Rear Wheel Hub Assembly 712-35700-6116 Rear Axle & Wheel-End System Parts
SINOTRUK SITRAK C7H Rear Wheel Hub Assembly 712-35700-6116 Rear Axle & Wheel-End System Parts
SINOTRUK SITRAK C7H Rear Wheel Hub Assembly 712-35700-6116 Rear Axle & Wheel-End System Parts
SINOTRUK SITRAK C7H Rear Wheel Hub Assembly 712-35700-6116 Rear Axle & Wheel-End System Parts
SINOTRUK SITRAK C7H Rear Wheel Hub Assembly 712-35700-6116 Rear Axle & Wheel-End System Parts
SINOTRUK SITRAK C7H Rear Wheel Hub Assembly 712-35700-6116 Rear Axle & Wheel-End System Parts
Specifications
Certification :
CQC URS CE
Material :
Ductile Cast Iron
Model Number :
712-35700-6116
Warranty :
6 months
MOQ :
1PCS
Delivery Time :
3-5days
Package :
Customer Requirements/neutral Packaging/brand Packaging
Purpose :
For replace/repair
Payment Terms :
L/C,D/A,D/P,T/T
Availability :
In stock
Price :
negotiation
Service :
24 Hours Online Service
Supply Ability :
500PCS
Applicable Model :
For SINOTRUK SITRAK C7H, HOWO T5G / MCP16
Brand Name :
SINOTRUK
Product Name :
Rear Wheel Hub Assembly
Packaging Details :
Unified cardboard, packaging with bubble wrap inside and wrapped with film outside. Large items can be palletized or packaged according to customer needs
Payment :
T/T,,Alipay
Place of Origin :
China
Shipping :
Courier/Air Freight/Sea Freight or According to customer requirements
Description


SINOTRUK SITRAK Truck Rear Axle & Wheel-End System Parts C7H Rear Wheel Hub Assembly 712-35700-6116

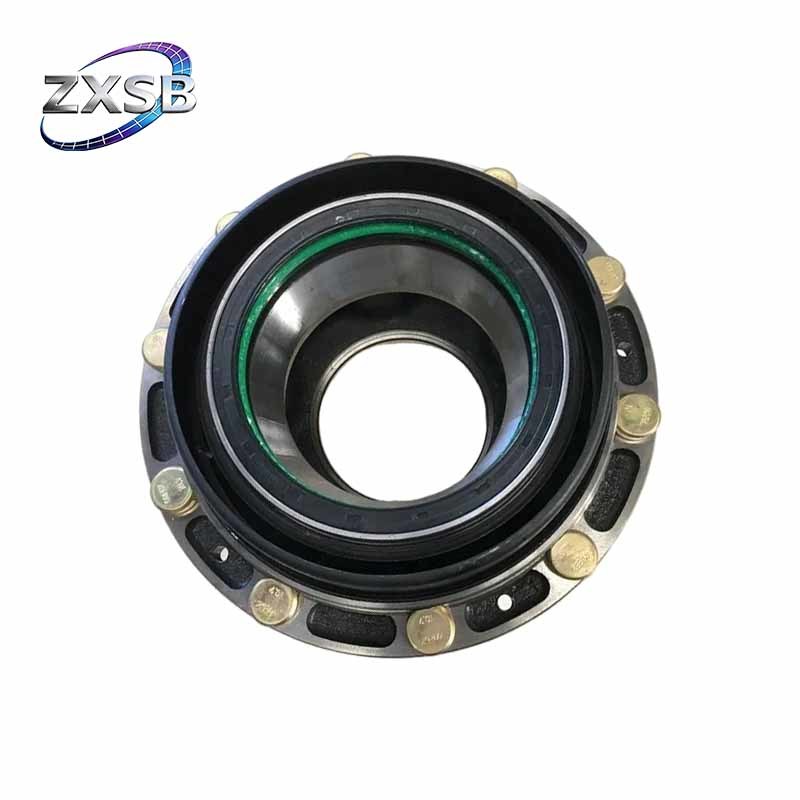

The SINOTRUK SITRAK 712-35700-6116 Rear Wheel Hub Assembly is a key component of the rear axle and wheel-end system, designed to provide the mounting and rotating support required between the rear axle and wheel assembly on compatible heavy-duty trucks. The hub works together with tapered roller bearings, wheel bolts, oil-retaining components and sealing elements to support wheel rotation while managing the radial and axial loads generated by vehicle weight, braking, acceleration and uneven road conditions. According to the available parts breakdown, the complete assembly incorporates a rear hub, M22 × 1.5 × 114 wheel bolts, 33220 and 32222 tapered roller bearings, an oil retaining disc, shaft seal, oil retaining cover, and sealing ring, making it more than a bare wheel hub component. During long-distance transportation, construction work, and other heavy-duty applications, excessive bearing preload, insufficient or contaminated lubricant, damaged seals, loose wheel-end components, or incorrect installation can affect hub operation and may lead to abnormal noise, heat generation, wheel-end vibration, or excessive wheel play. These symptoms should be diagnosed carefully because a wheel-end problem can originate from the bearing, seal, axle shaft, brake components, or wheel mounting hardware rather than the hub body itself. The 712-35700-6116 assembly is associated with SINOTRUK SITRAK C7H, HOWO T5G, and MCP16 axle applications in current parts references.



Product Specification


Product Name

Rear Wheel Hub Assembly
Part Number

712-35700-6116
Condition New
Origin China
Quality Standard 100% Tested
Quality Certification ISO, CCC, GSO, CE, SGS, TUV
Weight 35.0 KG
Dimensions

420 mm × 420 mm × 320 mm
SINOTRUK SITRAK C7H Rear Wheel Hub Assembly 712-35700-6116 Rear Axle & Wheel-End System Parts SINOTRUK SITRAK C7H Rear Wheel Hub Assembly 712-35700-6116 Rear Axle & Wheel-End System Parts


Ordering & Shipping Information
Packing Options
Carton, Wooden Box, Pallet
Shipping Methods
Courier / Air Freight / Sea Freight
Payment Terms
L/C, T/T, , PayPal, , Alipay
Loading Port
Any Port in China

FAQ


Q1:What is the function of a rear wheel hub?

The rear wheel hub provides the mounting interface between the wheel and axle assembly while supporting the bearings that allow the wheel to rotate around the axle.



Q2:What are common signs of rear wheel hub problems?

Possible signs include abnormal wheel-end noise, excessive heat, wheel vibration, unusual bearing noise, or excessive wheel play.




Q3: Should the brake system be checked when replacing the rear hub?

Yes. Brake components operate close to the wheel hub, and brake drag can produce symptoms similar to a bearing or hub problem, especially excessive heat.
