HOWO HW19710 PTO Shaft Hole Cover Plate Set WG2229100047 WG2229100048 Transmission / PTO System Parts
HOWO HW19710 PTO Shaft Hole Cover Plate Set WG2229100047 WG2229100048 Transmission / PTO System Parts
HOWO HW19710 PTO Shaft Hole Cover Plate Set WG2229100047 WG2229100048 Transmission / PTO System Parts
HOWO HW19710 PTO Shaft Hole Cover Plate Set WG2229100047 WG2229100048 Transmission / PTO System Parts
HOWO HW19710 PTO Shaft Hole Cover Plate Set WG2229100047 WG2229100048 Transmission / PTO System Parts
HOWO HW19710 PTO Shaft Hole Cover Plate Set WG2229100047 WG2229100048 Transmission / PTO System Parts
Specifications
Payment :
T/T,,Alipay
Place of Origin :
China
Applicable Model :
For SINOTRUK SITRAK C7H、G7、C9H、G7S/HOWO :7、T7H、TX、MAX
Availability :
In stock
Service :
24 Hours Online Service
Model Number :
WG2229100047 WG2229100048
Package :
Customer Requirements/neutral Packaging/brand Packaging
Payment Terms :
L/C,D/A,D/P,T/T
Price :
negotiation
Supply Ability :
500PCS
MOQ :
1PCS
Delivery Time :
3-5days
Shipping :
Courier/Air Freight/Sea Freight or According to customer requirements
Warranty :
6 months
Material :
Metal Plate + Sealing Gasket
Product Name :
PTO Shaft Hole Cover Plate & Gasket
Certification :
CQC URS CE
Brand Name :
SINOTRUK HOWO
Purpose :
For replace/repair
Packaging Details :
Unified cardboard, packaging with bubble wrap inside and wrapped with film outside. Large items can be palletized or packaged according to customer needs
Description


SINOTRUK HOWO Transmission / PTO System Parts HW19710 PTO Shaft Hole Cover Plate Set WG2229100047 WG2229100048

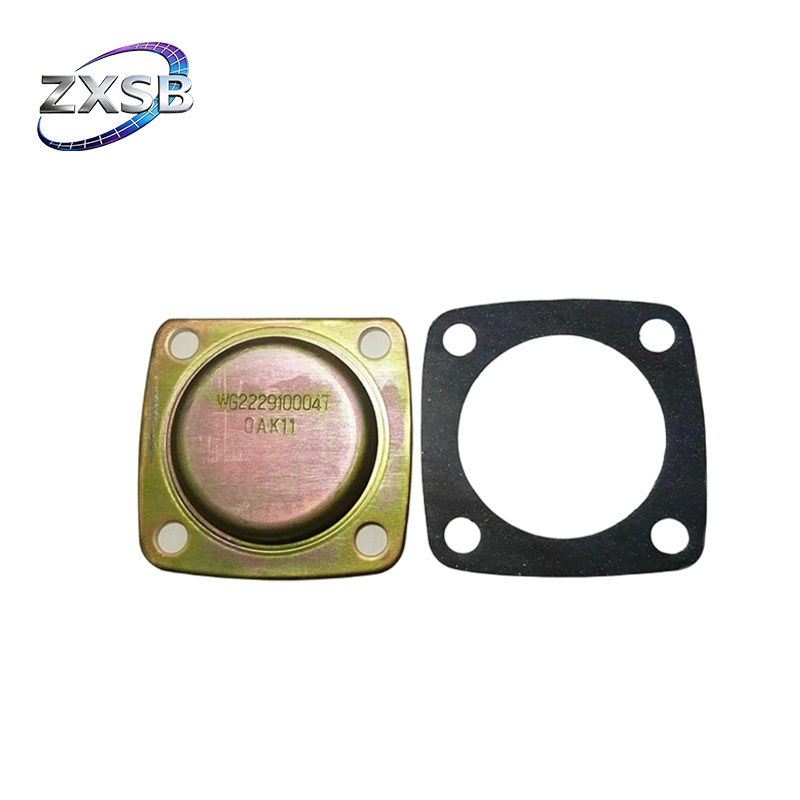

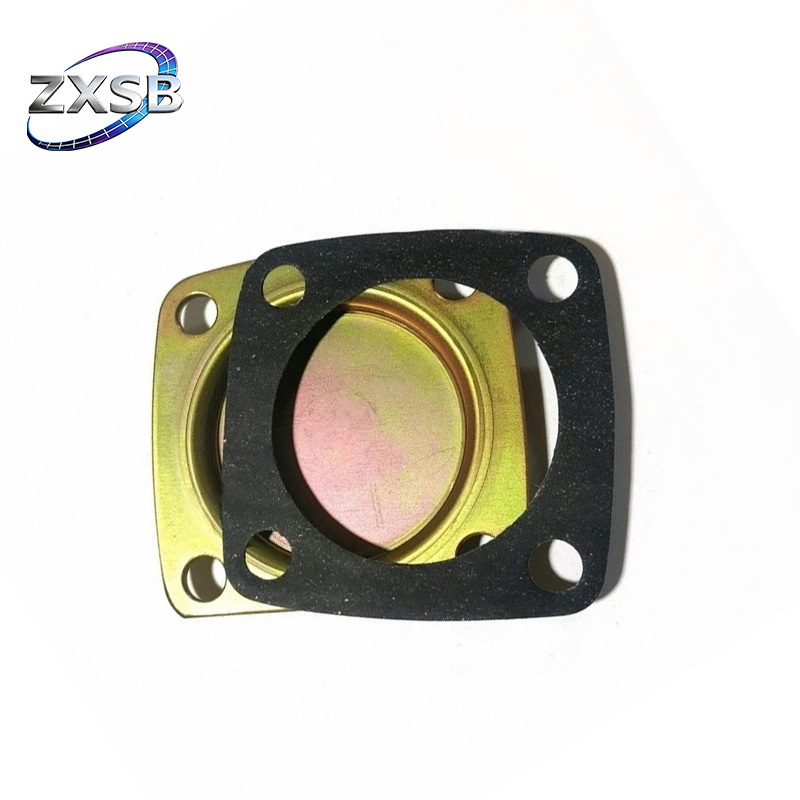

The SINOTRUK HOWO WG2229100047 PTO Shaft Hole Cover Plate and WG2229100048 Cover Plate Gasket are matching components used at the reserved Power Take-Off interface of heavy-duty truck transmissions. The cover plate closes the PTO mounting opening when an auxiliary PTO unit is not installed, while the gasket is positioned between the plate and transmission housing to create the required sealing interface. In the HW19710/HW19710T transmission, these components are associated with the range-gear/sub-gearbox assembly and work together with the corresponding fastening hardware to maintain a closed and properly sealed transmission housing. During vehicle operation, the cover plate remains fixed to the gearbox housing while the gasket helps accommodate the contact surface between the plate and housing, reducing the possibility of lubricant escaping through the unused PTO opening. If the original gasket has become compressed, brittle, or damaged, or if the cover plate has been deformed during gearbox maintenance, the sealing performance of this area may be affected. For replacement, buyers should confirm the transmission model, original part numbers, and mounting arrangement before ordering. When replacing the gasket, the mating surfaces should be cleaned and checked for damage so that the new gasket can sit evenly between the cover plate and transmission housing.




Product Specification


Product Name

PTO Shaft Hole Cover Plate & Gasket
Part Number

Cover Plate: WG2229100047
Cover Plate Gasket: WG2229100048
Applicable Transmission

HW19710 / HW19710T
Condition New
Origin China
Quality Standard 100% Tested
Quality Certification ISO, CCC, GSO, CE, SGS, TUV
Weight 0.8 KG
Dimensions

135 mm × 155 mm × 60 mm

HOWO HW19710 PTO Shaft Hole Cover Plate Set WG2229100047 WG2229100048 Transmission / PTO System Parts HOWO HW19710 PTO Shaft Hole Cover Plate Set WG2229100047 WG2229100048 Transmission / PTO System Parts

Ordering & Shipping Information
Packing Options
Carton, Wooden Box, Pallet
Shipping Methods
Courier / Air Freight / Sea Freight
Payment Terms
L/C, T/T, , PayPal, , Alipay
Loading Port
Any Port in China

FAQ


Q1: What symptoms may indicate that the PTO cover gasket needs replacement?

Possible signs include oil seepage around the cover plate, visible gasket deterioration, a flattened or damaged gasket, or leakage that appears after transmission maintenance. The cover plate and surrounding sealing surface should also be inspected before replacing the gasket.




Q2: Can the gasket be reused after removing the cover plate?

Reuse is generally not recommended when the gasket has already been compressed or shows visible damage. During gearbox maintenance, the sealing condition should be assessed and a new gasket used when the original no longer provides a reliable sealing interface.




Q3: Should WG2229100047 and WG2229100048 be replaced together?

If the cover plate is still flat and undamaged, replacing only the gasket may be sufficient. However, when the cover plate has deformation, corrosion, damage around the bolt holes, or a damaged sealing surface, replacing the plate and gasket together provides a more complete repair.
