460 HP Tow Truck G7 VI Sitrak Shipping Cost and 6 Months After-sales Service Included
460 HP Tow Truck G7 VI Sitrak Shipping Cost and 6 Months After-sales Service Included
460 HP Tow Truck G7 VI Sitrak Shipping Cost and 6 Months After-sales Service Included
460 HP Tow Truck G7 VI Sitrak Shipping Cost and 6 Months After-sales Service Included
460 HP Tow Truck G7 VI Sitrak Shipping Cost and 6 Months After-sales Service Included
460 HP Tow Truck G7 VI Sitrak Shipping Cost and 6 Months After-sales Service Included
460 HP Tow Truck G7 VI Sitrak Shipping Cost and 6 Months After-sales Service Included
460 HP Tow Truck G7 VI Sitrak Shipping Cost and 6 Months After-sales Service Included
460 HP Tow Truck G7 VI Sitrak Shipping Cost and 6 Months After-sales Service Included
460 HP Tow Truck G7 VI Sitrak Shipping Cost and 6 Months After-sales Service Included
Specifications
Model NO. :
ZZ4257N3247E1H
Power :
Diesel
Load Capacity :
31-40t
Emission Standard :
Euro 5
Drive Wheel :
8×4
Seats :
≤5
Horsepower :
＞450hp
Engine Capacity :
＞8L
Tire Certification :
ECE, GCC, ISO, DOT
Tire Design :
Tubeless
Condition :
New
Usage :
Towing Semi Trailer
Fuel Tank :
400L, 600L, 1000L
Driver Seat :
Air Suspension Seat
Color :
Customized
Cargo Box Material :
Carbon Steel
Steering System :
Hydraulic Steering with Power Assistance
Transport Package :
Nude Packing
Specification :
6.8x2.5x3.8m
Trademark :
Sinotruk
Origin :
China Shandong
HS Code :
8708991000
Supply Ability :
1000pieces/Year
Package Size :
120.00cm * 255.00cm * 398.00cm
Package Gross Weight :
15500.000kg
Lead Time :
15 days (1 - 5 Pieces) To be negotiated ( > 5 Pieces)
After-sales Service :
6 Months
Warranty :
6 Months
Transmission Type :
Manual
Customization :
Available | Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
  :
Initial Payment Full Payment
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Certification :
SGS
Delivery Time :
7-15days
Description
460 HP Tow Truck G7 VI Sitrak Shipping Cost and 6 Months After-sales Service Included

Product use

1. Definition of tractor
A tractor is a versatile light truck that excels in towing other vehicles or objects, typically equipped with one or more pairs of wheels and axles. Known for its reliability, it effortlessly pulls heavy-duty vehicles like semi-trailers, luxury yachts, and construction equipment, making it indispensable in the realm of heavy transport.
2. the structure of the tractor
A tractor is meticulously engineered with essential components such as the engine, transmission, tires, and frame. Enhanced functionality is achieved with optional features like tow hooks, advanced locking systems, and remote controls, ensuring superior operation and precise control.
3. tractor application field
1. Transportation: Tractors are vital in the long-distance freight industry, adept at towing semi-trailers and large trucks, ensuring the safe and efficient delivery of goods to their destinations.
2. Construction field: Tractors are crucial for towing various construction machinery, including excavators, bulldozers, and cranes, facilitating the transport of heavy equipment to construction sites efficiently.

Basic Info.


460 HP Tow Truck G7 VI Sitrak Shipping Cost and 6 Months After-sales Service Included
460 HP Tow Truck G7 VI Sitrak Shipping Cost and 6 Months After-sales Service Included
460 HP Tow Truck G7 VI Sitrak Shipping Cost and 6 Months After-sales Service Included

460 HP Tow Truck G7 VI Sitrak Shipping Cost and 6 Months After-sales Service Included460 HP Tow Truck G7 VI Sitrak Shipping Cost and 6 Months After-sales Service Included
460 HP Tow Truck G7 VI Sitrak Shipping Cost and 6 Months After-sales Service Included
460 HP Tow Truck G7 VI Sitrak Shipping Cost and 6 Months After-sales Service Included
460 HP Tow Truck G7 VI Sitrak Shipping Cost and 6 Months After-sales Service Included

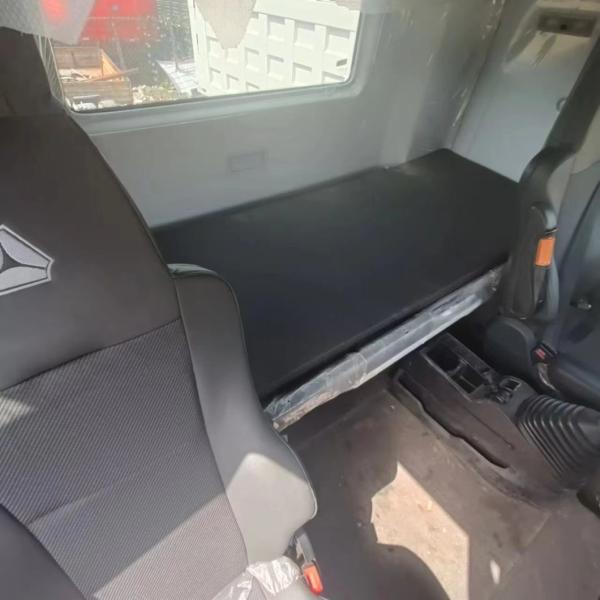

Detailed Photos

460 HP Tow Truck G7 VI Sitrak Shipping Cost and 6 Months After-sales Service Included460 HP Tow Truck G7 VI Sitrak Shipping Cost and 6 Months After-sales Service Included

Parameter configuration
Basic Information

Announcement Model:
ZZ5316CCYV466HF1B
type:
Saddle Truck
Drive type:
8X4
Wheelbase:
1950+4600+1400mm
Box length level:
9.5 m
engine:
Sinotruk MC11.46-61
Gearbox:
Sinotruk HW25712XSTCL
Rear axle ratio:
3.7
Body length:
11.99 m
Body width:
2.55 m
Ride height:
3.98 m
Front track:
2022/2022mm
Rear track:
1830/1830mm
Vehicle weight:
15.5 tons
Rated load:
15.37 tons
Total mass:
31 tons
Maximum speed:
89KM/h
Origin:
Zhangqiu, Shandong
Tonnage level:
Heavy trucks
driver license:
A1,A2,B2
Approach Angle:
19 degrees
Departure angle:
18 degrees
Front overhang/rear overhang:
1.492/2.548m
Fuel Type:
diesel fuel

Engine parameters

engine model:
Sinotruk MC11.46-61
Engine Brand:
Sinotruk
Engine common name:
Sinotruk MC11
Number of cylinders:
6 cylinders
Fuel type:
diesel fuel
Cylinder arrangement:
series
Displacement:
10.518L
Emission Standards:
National VI
Maximum output power:
338kw
Maximum horsepower:
460 hp
Maximum Torque:
2200N·m
Maximum torque speed:
1000-1400RPM
Rated speed:
1900RPM
Engine Type:
Inline six-cylinder, water-cooled, four-stroke, supercharged, intercooled, high-pressure common rail

Cargo box parameters

Cargo box form:
Barn type
Length of cargo box:
9.52 m
Cargo box width:
2.45 m

Cab parameters

Cab width:
2440mm
Number of passengers allowed:
3 people
Number of Seat Rows:
Half row

Gearbox parameters

Gearbox Model:
Sinotruk HW25712XSTCL
Gearbox brand:
Sinotruk
Shifting method:
Manual
Forward gears:
12 gears
Number of downs:
2

tank

Fuel tank capacity:
1000L

Chassis parameters

Permissible load on front axle:
6500/7000KG
Permissible load on rear axle:
17500(two-axis group)KG
Speed ratio:
3.7

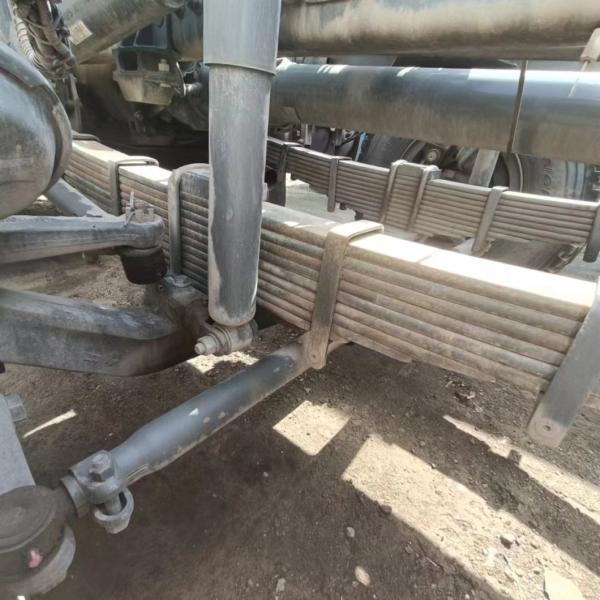

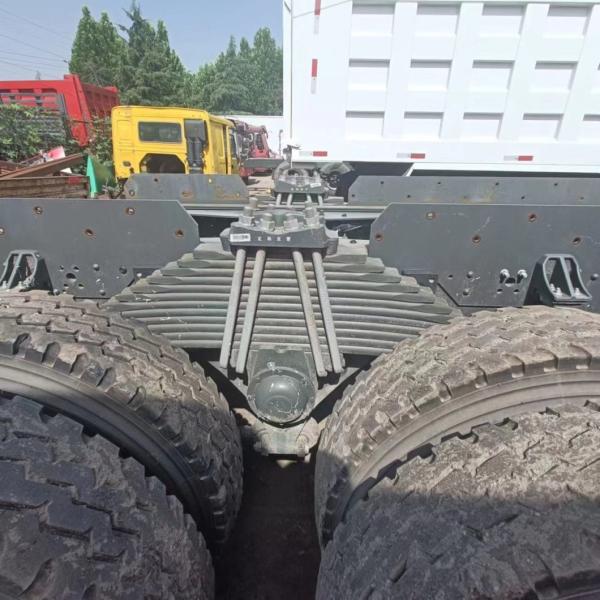

Number of springs:
3/3/4

tire

Tire specifications:
12R22.5 18PR
Number of tires:
12

Control configuration

ABS anti-lock braking system:

Shipment

We usually ship the truck by RO-RO vessel or bulk vessel. We also can ship the truck by the special container.
460 HP Tow Truck G7 VI Sitrak Shipping Cost and 6 Months After-sales Service Included


Original Spare Parts
We provide authentic Spare Parts and boast a comprehensive after-sales service system. Our After-market Division is dedicated to delivering exceptional service with a streamlined supply chain that ensures rapid parts delivery.
460 HP Tow Truck G7 VI Sitrak Shipping Cost and 6 Months After-sales Service Included

Our Product
460 HP Tow Truck G7 VI Sitrak Shipping Cost and 6 Months After-sales Service Included

Thanks to Choose us

Q: How about the delivery time?
A: Most of our trucks and machinery are in stock, enabling delivery within 7 days. For specially ordered items, typical production time is around 30 days.

Q: How many units of truck does you have per year?
A: We produce nearly 30,000 units annually, with approximately 5,000 units updated each month.

Q: How do you control the quality of product?
A: Our factory features a standardized production workshop with highly trained workers. Each product undergoes a meticulous inspection process. We ensure our trucks and machinery are reconditioned to professional standards.

Q: Do you accept custom order? What's is your MOQ order?
A: Yes, we accept custom orders with a minimum order quantity (MOQ) of just 1 unit.
