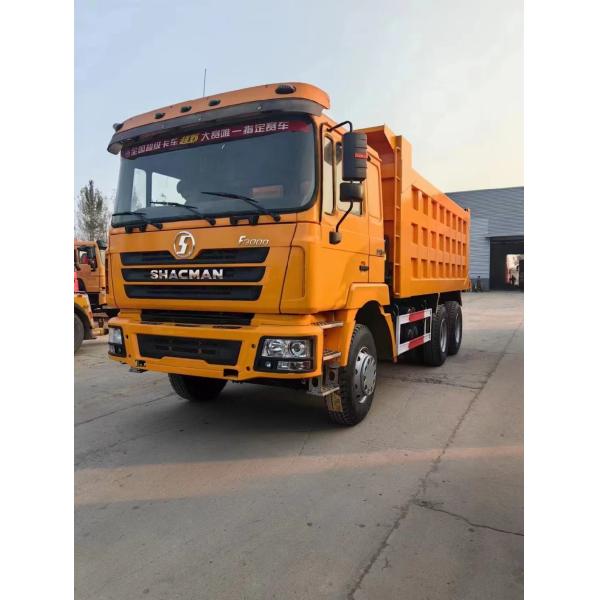

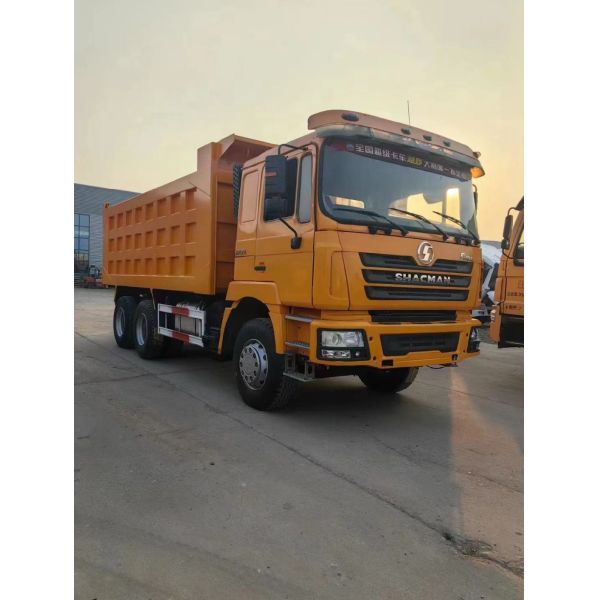

40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine
40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine
40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine
40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine
40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine
40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine
40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine
40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine
40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine
40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine
40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine
40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine
Specifications
Model NO. :
6x4 dump truck
Power :
Diesel
Load Capacity :
21-30t
Emission Standard :
Euro 3
Drive Wheel :
6×4
Engine Capacity :
4-6L
Seats :
≤5
Horsepower :
351-450hp
Tire Certification :
ISO
Tire Design :
Tubeless
Dumping Type :
Front Lifting Style
Condition :
Used
Tyre :
New
Steering System :
Hydraulic Steering with Power Assistance
Chassis Brand :
Sinotruk Chassis
Color :
Customized
Cab :
Air Conditioner
Cargo Box Material :
Carbon Steel
Electric System :
Battery:2X12V/165ah; Alternator:28V-1500 Kw; Sta
Transport Package :
Naked Packing
Specification :
8.5x2.6x3.6m
Trademark :
Shacman
Origin :
China Liangshan
HS Code :
870423009
Supply Ability :
10000pieces/Year
Package Size :
850.00cm * 260.00cm * 360.00cm
Package Gross Weight :
12100.000kg
After-sales Service :
6 Months
Warranty :
6 Months
Transmission Type :
Manual
Customization :
Available | Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
  :
Initial Payment Full Payment
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Certification :
SGS
Delivery Time :
7-15days
Description
40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine
Experience the pinnacle of power and reliability with the Shacman M3000 X3000 Sinotruk HOWO 6X4 10 Tires 371HP Heavy Duty Dump Truck. Crafted for exceptional performance, this formidable vehicle offers a massive 18-25cbm capacity, allowing you to tackle any heavy-duty task effortlessly and with unwavering confidence.

Product Description

Introducing our versatile Dump Truck, also known as a Dumper Truck, Tipper Truck, or simply Tipper. This meticulously engineered vehicle is designed to meet all your heavy-duty hauling needs with unmatched efficiency and reliability.
Engineered for excellence, these dump trucks feature a resilient chassis, spacious tipping box, and powerful hydraulic cylinder. They're perfect for transporting sand, stone, gravel, and more. As a leading supplier, we offer a variety of configurations including 4x2, 6x4, and 8x4 models to perfectly suit your specific requirements.
Advantages of this Dump Truck include:

1. Ideal for earthwork, gravel, and bulk material transportation.
2. Enhanced production efficiency with a precise unloading angle.
3. Significant transportation cost savings.
4. Customizable designs to meet diverse customer needs.

Dump Truck Description:
The loading carriage automatically tips over for unloading at a specified angle, greatly reducing unloading time and labor. This significantly enhances the transportation cycle, boosts production efficiency, and lowers costs, making it a widely used specialized transport vehicle.

1. By appearance: Single-axle, double-axle, flat-head, pointed tip, front four-back eight, double-axle semi-trailer, and three-axle semi-trailer dump trucks.

2. By purpose: Agricultural, mining, garbage, coal transportation, construction machinery, and sludge dump trucks.

3. By driving modes: 6x4, 8x4 for unloading, and semi-trailer dump trucks.

4. By use: Mining dump trucks for coal, sand, and gravel; environmental sanitation and green dump trucks for garbage transportation.

5. By car rollover direction: Front lift, rollover dump trucks, and two-way side dump trucks, mainly utilized in construction projects.
Name Shacman Dump Tipper Truck
Types Used
Load capacity 25000kg
Horsepower 6x4
Horsepower 400
Gearbox type FAST12JS160T
Emission Standards Euro3
Fuel Diesel
Displacement 9.726L
Size:Length * width * height 8.5X2.6X3.6M
Total weight 12100kg
Color optional
Engine WP10.340E32
Fuel tank capacity 400L
Number of springs 10/12
Power 250KW
Number of tires 10
Tire specifications 12.00R20
Cabin Flat
Production Year 2013-2023
Detailed Photos
40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine
40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine

40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine
40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine
40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine
40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine
40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine
40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine
Main Specifications:

Driver's Cab(Single sleeper with A/C)
Model Shacman F3000 Cab, with one sleeper beds, two seats, with A/C
Type Forward control cab, hydraulically tiltable by 60o
Construction Current standard all steel construction
Instrument panel Clearly visible,indicators of compressed air pressure,
coolant temperature, engine oil pressure and battery
charging
Seats 4-point support fully floating suspension + shock
absorbers driver adjustable & passenger fixed
Seat belts For driver & passenger
Glass Tempered safety glass
Sun visors Dual, adjustable
Mirrors Large, truck type convex
Wind screen wiper 3 arm wind screen wiper system with 3 speeds
Entertainment system FM/AM/SW, 4 band radio with cassette player, two speaker and antenna
Steering wheel Adjustable steering wheel
Horn Air horn
Panel LCD Panel with LED light
Engine
Engine brand SHACMAN
Engine model WD615.47, 380hp
Emission Standard EURO III
Engine type Diesel 4-stroke direct injection engine,
6-cylinder in-line
with water cooling, turbo-charging &
Inter-cooling
Displacement 9.726 liters
Max. Output 400hp@2200rpm
Max. torque 1250Nm @1100-1600 rpm
Bore/Stroke 126/130mm
Compression ratio 17:1
Specific fuel consumption ≤193g/kW.h
Cooling System
Medium Water
Radiator heavy duty type
Cooling fan Visco static fan tropical type
Thermostat Opening at 70-80ºC
Warning device Audible & visual
Clutch
Type Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance
Transmission
Type Heavy duty, manual fuller type
Model HW19712
No of speeds 12 forward + 2 reverse
Model Torque(Nm) Gear Ratios Oiling
(L)
1 2 3 4 5 6 7 8 9 10 R1 R2
HW19710 1900 14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1.00 13.91 3.18 12
Front Axle
Type HF9 tons steering with double T-cross section beam
Capacity 9000kg
Rear Axle
Type HC16(16 ton, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock)
Capacity 16T
Chassis
Frame Heavy duty, reinforced sub frame,
300mmx80mmx8mm
(inner: 280mmx70mmx7mm)
Front suspension semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers and stabilizer, 1500mm
Rear suspension semi-elliptic springs ,and bogie springs, and stabilizer
, 1739mm
Air Intake System
Air cleaner type Heavy duty type
Pre filter Cyclone
Exhaust System
Capable of maintaining the sound level as low as possible.
Steering
Location Left hand
Model ZF 8098 (Made in Germany) hydraulic steering with power assistance
Variable ratios 22.2-26.2, 17.0-20.0
Max. pressure 170+10 bar
Max. output torque 7618 Nm
Weight 42 kg
Bumper
Installed heavy duty front and rear steel bumpers
Brake System
Service brake Dual circuit compressed air brake.
Parking brake Spring energy, compressed air operating on rear wheels
Assistant brake Engine exhaust valve brake
Wheels & Tyres
Wheels Single front and dual rear
Tyres Double Coin brand,12.00R20
Quantity 13
Air Supply System
Warning device Audible & visual
Air line Heavy duty steel pipes
Electrical System
Operating Voltage 24V, Negative grounded; Starter 24V, 7.5KW
Battery type 2x12V, 165Ah/180Ah
Alternator 28V, 1500W
Cigar Lighter, horn, head lamps, fog lights, brake lights, indicators and reverse lamp
Dimensions
Wheel base 4800mm+1350
Overall length 9775mm
Overall width 2496mm
Overall height 3730mm
Cargo Body
Internal Size 6400x2300x1800mm
Thickness of body steel Side 6mm & bottom 8mm
Tipping type Front lift type with hydraulic system (HYVA hydraulic cylinder)
Packaging & Shipping

40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine
Company Profile
40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine
Successful Case

40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine
After Sales Service

Rest assured, at Jining Huahang International Trade Co., Ltd., we leave no stone unturned. Every Shacman Sinotruk FAW Heavy Duty Dump Truck undergoes a meticulous and rigorous inspection process before it ever reaches your hands. Each truck chassis is carefully scrutinized to guarantee remarkable quality and unparalleled performance, ensuring your absolute satisfaction.

1. Engine: We ensure flawless engine starts by meticulously inspecting for any signs of oil leakage and conducting rigorous emissions checks. Black smoke, blue smoke, and white smoke are diligently scrutinized, ensuring all emissions comply with our stringent environmental standards.
blue smoke, and white smoke, ensuring all emissions comply with our stringent environmental standards.
2. Transmission: We scrupulously verify the accuracy of each transmission gear position, ensuring seamless gear shifting and optimal performance under various driving conditions.
3. Axle: Our exhaustive inspection includes oil leakage detection and smooth driving performance confirmation, guaranteeing you a hitch-free experience.
4. Frame: We conduct detailed checks for any deformities in the frame, ensuring the structural integrity and safety of our trucks.
5. Additional Checks: All headlights and wipers are thoroughly tested for full functionality, providing you with utmost peace of mind on every journey.
40 Ton Used Shacman Heavy Dumper/Tipper/Dump Truck for Mining/Construction/Congo/Mine
FAQ

Thank You for Choosing Jining Huahang International Trade Co., Ltd.

Q: How about the delivery time?
A: We take immense pride in our operational efficiency. The majority of our robust trucks and precision-engineered machinery are readily available in stock, ensuring lightning-fast dispatch within just 7 days. For items that require special orders, we maintain a streamlined production process typically spanning around 30 days, guaranteeing you receive exactly what you need without compromising on quality.

Q: How many units of trucks do you handle per year?
A: We are proud to manage an impressive volume of nearly 30,000 units annually. With a remarkable monthly turnover of 5,000 units, our vast capacity and steadfast reliability stand as a testament to our commitment to excellence.

Q: How do you ensure the quality of your products?
A: Our factory boasts a state-of-the-art production workshop, manned by a team of highly skilled professionals. We implement a stringent inspection process for each product, ensuring that all our trucks and machinery undergo comprehensive reconditioning. This rigorous approach guarantees you the highest quality standards in the industry.

Q: Do you accept custom orders? What is your minimum order quantity (MOQ)?
A: Absolutely, we embrace custom orders meticulously tailored to your specific requirements. Our minimum order quantity (MOQ) is a mere 1 unit, offering unparalleled convenience and flexibility for all our clients.
