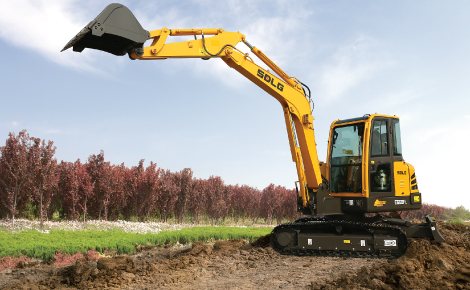

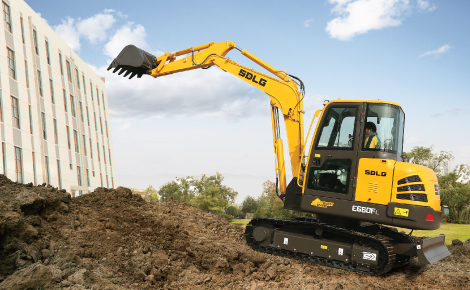

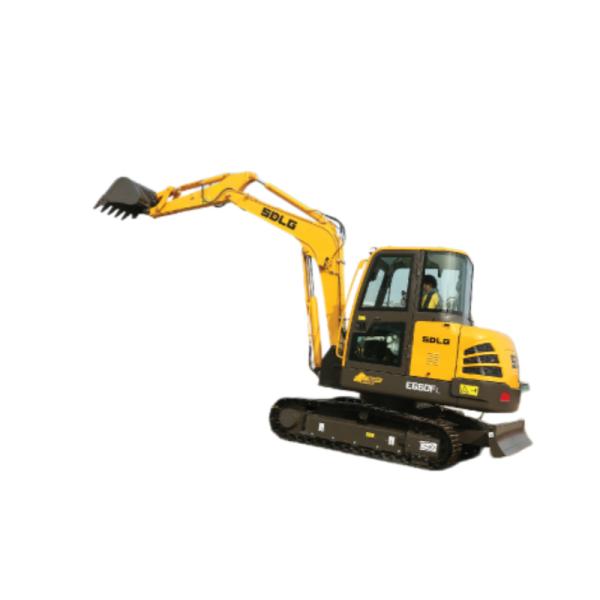

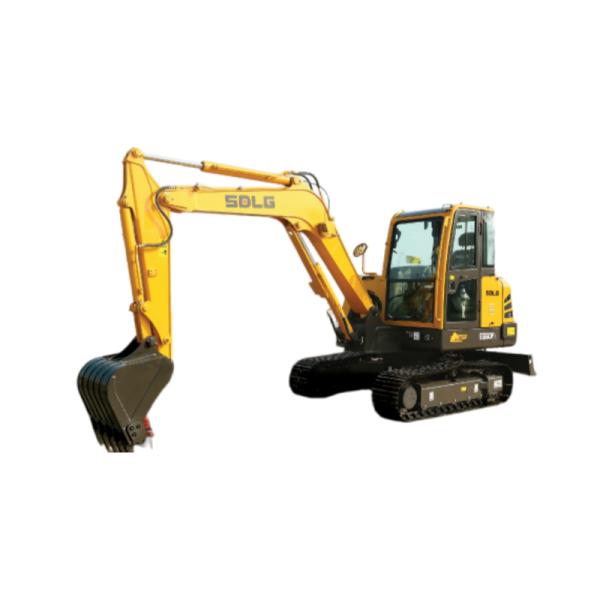

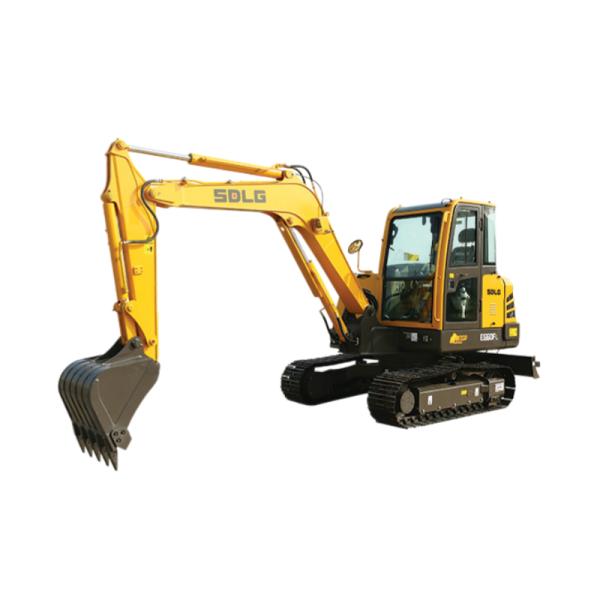

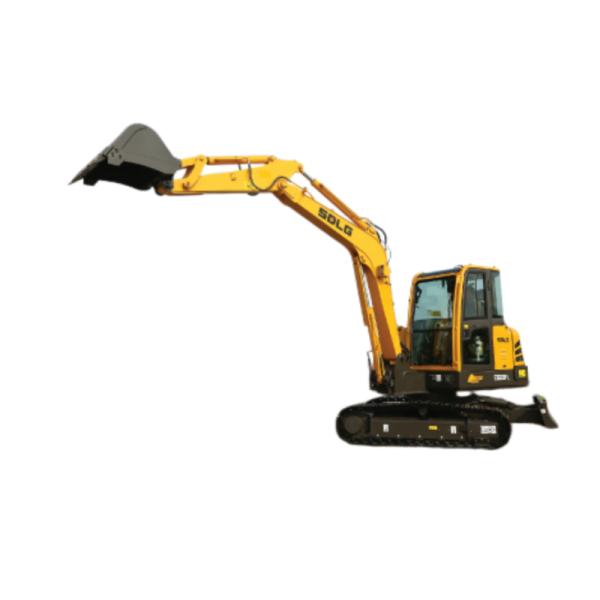

SDLG Lingong E660FL Small Excavator 6t Digger With 0.22m³ Bucket
SDLG Lingong E660FL Small Excavator 6t Digger With 0.22m³ Bucket
SDLG Lingong E660FL Small Excavator 6t Digger With 0.22m³ Bucket
SDLG Lingong E660FL Small Excavator 6t Digger With 0.22m³ Bucket
SDLG Lingong E660FL Small Excavator 6t Digger With 0.22m³ Bucket
SDLG Lingong E660FL Small Excavator 6t Digger With 0.22m³ Bucket
SDLG Lingong E660FL Small Excavator 6t Digger With 0.22m³ Bucket
SDLG Lingong E660FL Small Excavator 6t Digger With 0.22m³ Bucket
Specifications
Brand Name :
SDLG
Model Number :
E660FL
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500 Pieces/ Month
Delivery Time :
Full Payment 30-40 Work Days
Packaging Details :
by Sea/by Bulk/by Frame/by Container
Model :
E660FL
Engine Model :
4TNV98-EXSLGC
Rated Power :
38.3KW
Max. digging radius :
5990mm
Max. digging depth :
3846mm
Fuel tank capacity :
135L
Description

SDLG Lingong E660FL Small Excavator 6t Digger With 0.22m³ Bucket


Product Advantages

E660FL is a small excavator suitable for multi working condition, which is the upgraded version of E660F. Energy saving, reliable and comfortable, flexible operation and low noise, widely used in construction sites, municipal construction, farmland transformation, landscape engineering, pipeline laying and other working conditions.

The whole machine has compact structure, flexible mobility, good adaptability to working conditions, fast action speed and high operation efficiency;

Four-valve structure, large air intake, automatic idle function with low energy consumption.

Load sensing hydraulic system: the main control valve can operate independently of the load, the action coordination is not affected by the load, and it is related to the angle of the pilot handle. It can realize precision control on different executive elements, with good controllability and high work efficiency.

Three stage filtration, two stage oil-water separator plus one stage fine filtration, high efficiency, good oil adaptability and more durable engine.

Upper frame: integral reinforced upper frame structure, compact structure, good rigidity, uniform load distribution, small deformation, high reliability.

Control system: eye-catching color monitor, monitor the running state of the machine at any time; convenient pilot handle and control switch, easy to reach, easy to operate.

Operating Weight (kg) 6050
Bucket capacity (m³) 0.22
Rated power (kW) 38.3
Overall width (mm) 1960
Overall height (mm) 2620
Overall length (mm) 5930
Engine model 4TNV98-EXSLGC
Emission Standard China Phase III
Max. excavation force (kN) 45
Swing speed (r/min) 11.5
Traveling speed (km/h) 2.4/4.8
Max. digging radius (mm) 5990
Max. digging depth (mm) 3846
Max. digging height (mm) 5743
Fuel tank capacity (L) 135

Details Images

SDLG Lingong E660FL Small Excavator 6t Digger With 0.22m³ Bucket
SDLG Lingong E660FL Small Excavator 6t Digger With 0.22m³ Bucket
