SDLG Lingong G9138f 12ton Hydraulic Motor Grader For Highways Airports Ground Leveling
SDLG Lingong G9138f 12ton Hydraulic Motor Grader For Highways Airports Ground Leveling
SDLG Lingong G9138f 12ton Hydraulic Motor Grader For Highways Airports Ground Leveling
SDLG Lingong G9138f 12ton Hydraulic Motor Grader For Highways Airports Ground Leveling
Specifications
Brand Name :
SDLG
Model Number :
G9138f
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500 Pieces/ Month
Delivery Time :
Full Payment 30-40 Work Days
Packaging Details :
by Sea/by Bulk/by Frame/by Container
Model :
G9138f
Fuel tank :
210L
Rated power :
105KW
Cutter size :
3048x580x16mm
Min. turning radius :
6.5m
Cutting depth of blade :
575mm
Description

SDLG Lingong G9138f 12ton Hydraulic Motor Grader For Highways Airports Ground Leveling


Product Advantages

G9138F is a high-speed, high efficiency, high precision and versatile product developed by

SD LG after full investigation of market demands,which can complete the ground leveling and trenching, slope scraping, bulldozing, snow discharge, loosing, compaction, material distribution, mixing, etc, and is widely used in highways, airports, defense engineering, mine construction, road construction, water conservancy construction, farmland improvement and other construction conditions.

Overall Working Weight (kg) 12100
Rated power (kW) 105
Max. tractive force (kN) 75.4
Overall dimension(L×W×H)(mm) 8120×2410×3200
Max. inclination angle of front wheel (°) 18
Max. swing angle of front axle (°) 16
Max. steering angle of front wheel (°) 50
Steering angle of articulated frame (°) 25
Cutter size(LxHxT)(mm) 3048x580x16
Min. turning radius (m) 6.5
Cutting depth of blade (mm) 575
Max. speed (km/h) 39
Engine model BF4M1013-15T3R/2
Emission standard China Phase 3
Fuel tank capacity (L) 210

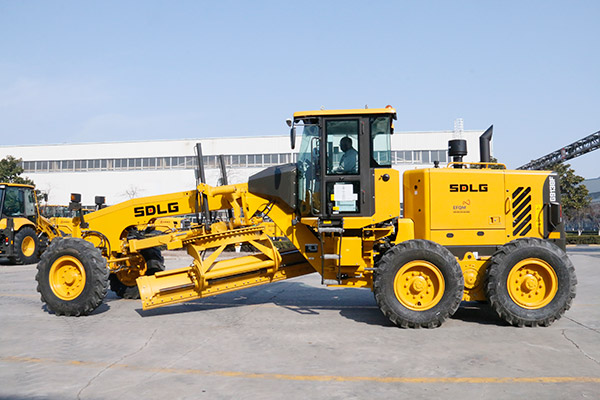

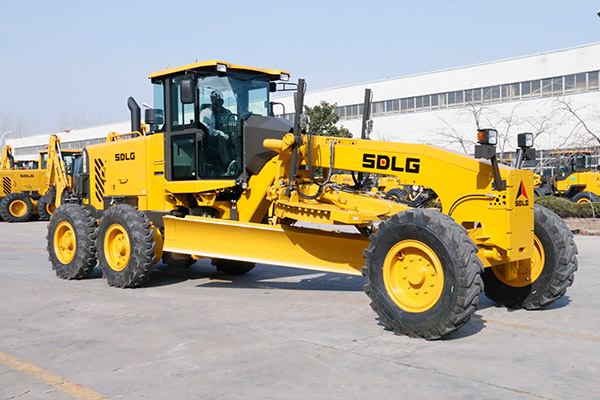

Details Images

SDLG Lingong G9138f 12ton Hydraulic Motor Grader For Highways Airports Ground Leveling
SDLG Lingong G9138f 12ton Hydraulic Motor Grader For Highways Airports Ground Leveling
