SDLG Lingong L901h Compact Wheel Loader With 0.25m³ Bucket
SDLG Lingong L901h Compact Wheel Loader With 0.25m³ Bucket
SDLG Lingong L901h Compact Wheel Loader With 0.25m³ Bucket
SDLG Lingong L901h Compact Wheel Loader With 0.25m³ Bucket
SDLG Lingong L901h Compact Wheel Loader With 0.25m³ Bucket
SDLG Lingong L901h Compact Wheel Loader With 0.25m³ Bucket
Specifications
Brand Name :
SDLG
Model Number :
L901h
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Unit
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500 Pieces/ Month
Delivery Time :
Full Payment 30-40 Work Days
Packaging Details :
by Sea/by Bulk/by Frame/by Container
Model :
L901h
Rated Load :
400kg
Fuel tank (L) :
25
Rated Power :
18.2kw
Bucket Capacity :
0.25m³
Dumping height :
1820mm
Description

SDLG Lingong L901h Compact Wheel Loader With 0.25m³ Bucket


Product Advantages


1.The SDLG-exclusive technology for great traction, which drive form can be switched from series to parallel.


2.Utilizing a large displacement engine allows the unit to operate at lower RPM, reducing vibration, noise, and fuel consumption, and improving reliability.


3.The operator can easily adjust the engine speed at any time by simply pulling the throttle lever to accommodate any working condition.


4.ROPS&FOPS certified canopy.

Standard bucket capacity,m³ (yd³) 0.25 (0.33)
Rated load,kg (lbs) 400 (882)
Operating weight ,kg (lbs) 1,950(4,299)
Max.breakout force,kN (lbf ) 12 (2,698)
Engine mode D1703
Rated power,kW (hp) 18.2 (24.4)/2,200
Engine displacement,ml (in³) 1674 (102)
Transmission type HST
Speed at Fl/Rl,km/h (mph) 0~6 (0~3.7)
Speed at F2/R2,km/h (mph) 0~12 (0~7.5)
Tire size 6.5-12
Fuel tank,L (gal) 25 (6.6)
Overall shipping size (L•W•H),mm (ft in) 4015 (13'2")*1,000(3'3.4")*2203 (7'2.7")
A Wheelbase,mm (ft in) 1,370(4'5.9")
B Ground clearance,mm (ft in) 165 (6.5")
C Reach at max.height,mm (ft in) 468 (1'6.4")
D Dumping angle,° 45
E Height at bucket pin,mm (ft in) 2,592(8'6")
F Dumping height,mm (ft in) 1,820(5'11.7")
G Bucket rollback at ground level,° 50
I Wheel tread,mm (ft in) 685(2'3.0")
J Articulation angle,° 45
K Turning radius at over bucket,mm (ft in) 2,590(8'6")
M Turning radius at inside of tires,mm (ft in) 1247(4'1.1")

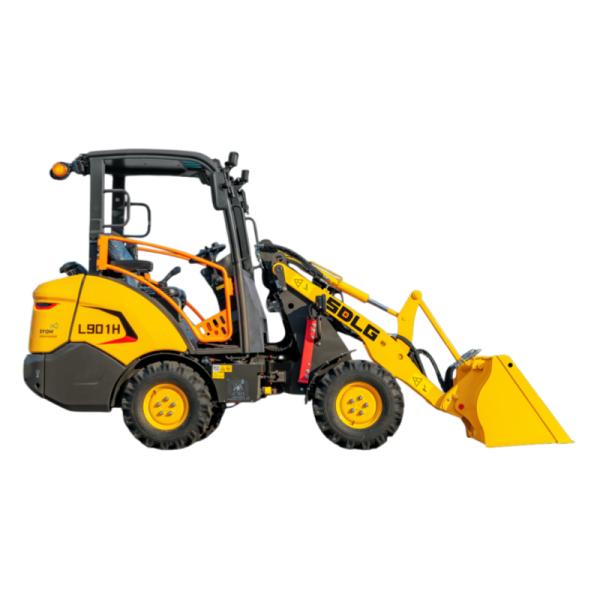

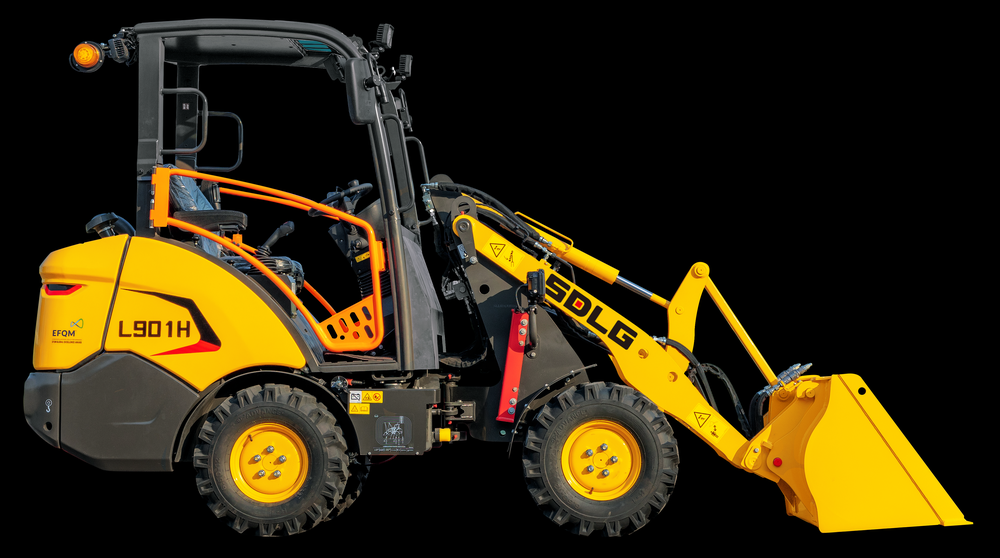

Details Images

SDLG Lingong L901h Compact Wheel Loader With 0.25m³ Bucket
SDLG Lingong L901h Compact Wheel Loader With 0.25m³ Bucket
