HI180 XCMG Hydraulic Excavator Crawler Construction Equipment
HI180 XCMG Hydraulic Excavator Crawler Construction Equipment
HI180 XCMG Hydraulic Excavator Crawler Construction Equipment
HI180 XCMG Hydraulic Excavator Crawler Construction Equipment
Specifications
Brand Name :
XCMG
Model Number :
HI180
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs/year
Delivery Time :
Full payment 7-15 work days
Packaging Details :
by Sea/by Bulk/by Frame/Container
Color :
Optional
Condition :
New
Type :
Front End Crawler Excavator
Moving type :
Crawler Excavator
Cab Height :
2920MM
Rated bucket capacity :
0.8m3
Description

XCMG Hydraulic Excavator Crawler Excavator HI180 crawler Construction Equipment

Product Advantages

1. Rugged and durable, high reliability

  • Improving the design of the cross-sectional shape of the track frame, reducing soil accumulation, making the carrier sprocket less prone to wear and improving the durability of the machine.
  • The important hinged part of the stick adopts forging structure, which can relieve stress and improve durability by changing the shape and plate thickness.

2. Operating environment

  • Expand the field of vision in all directions, enlarge the front window, side window and rear window to ensure a wide field of vision, greatly reduce blind spots, and make the operation safer and more efficient.
  • Enlarge the skylight glass to improve upward visibility and increase ventilation. The doors and windows are made of tempered glass, and the shading panels to prevent direct sunlight;

3. Intelligent operation and display

  • The electric throttle control system makes full use of the engine power, so that the machine can always maintain the best efficiency and economy under different working conditions.
  • Automatic idling function: Turn on the automatic idling function, if the machine does not operate within 5 seconds, the engine will automatically idle to save fuel and reduce noise.

4. Convenient and fast repair and maintenance

  • The engine oil filter, pilot oil filter, fuel oil filter and oil-water separator are installed at the places where they can be inspected and replaced on the ground.
  • Large-capacity fuel tank realizes long-time operation.


Product Parameter

Performance parameters
Bucket capacity (m³) 0.8
Swing speed (rmp) 0-12
Maximum climbing angle (°) 30
Bucket maximum digging force (KN) 98
Maximum digging force of stick (KN) 68
Engine model QSF38-C125
Power/speed (KW/rmp) 93/2200
System pressure (MPa) 32
Scope of work
Maximum digging height (mm) 9430
Maximum unloading height (mm) 6960
Maximum digging depth (mm) 5975
Maximum vertical digging depth (mm) 5630
Maximum digging radius (mm) 8985
Minimum turning radius (mm) 2725
Overall size
Dimensions length*width*height (mm) 8540*2720*2920
Cab height (mm) 2920
Wheelbase (mm) 3200
Wheel (rail) pitch (mm) 2120
Minimum ground clearance (mm) 480
Turning radius of tail (mm) 2430

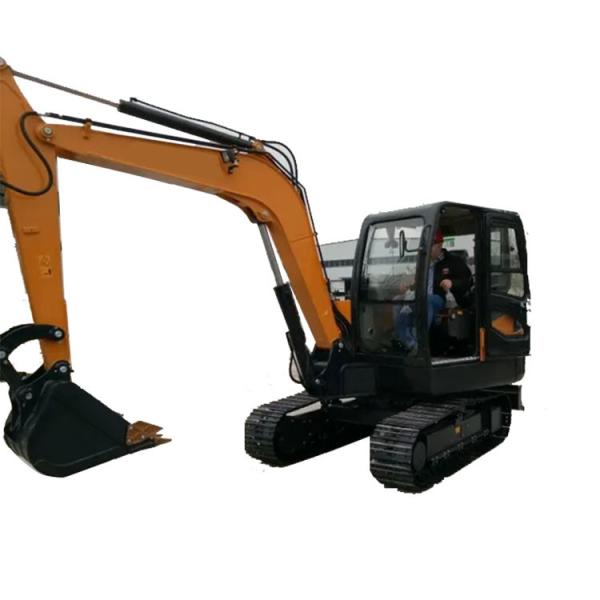

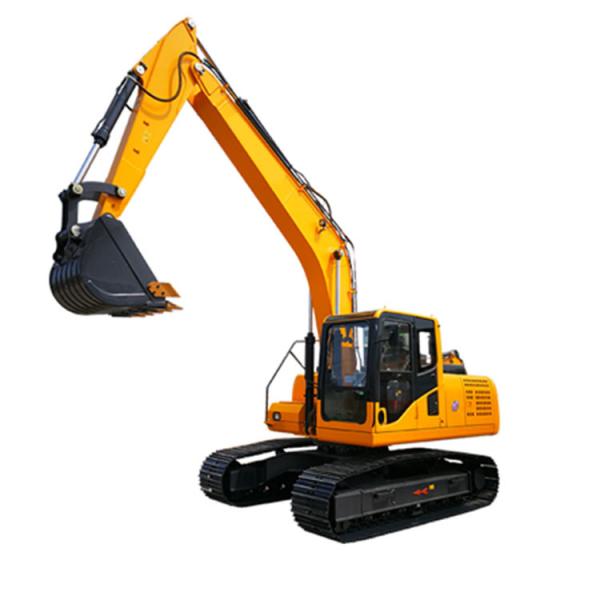

Detailed Photos

HI180 XCMG Hydraulic Excavator Crawler Construction Equipment
