XE55DA XCMG Hydraulic Crawler Excavator 5 Ton Mini Farm Garden Diesel Excavator
XE55DA XCMG Hydraulic Crawler Excavator 5 Ton Mini Farm Garden Diesel Excavator
XE55DA XCMG Hydraulic Crawler Excavator 5 Ton Mini Farm Garden Diesel Excavator
XE55DA XCMG Hydraulic Crawler Excavator 5 Ton Mini Farm Garden Diesel Excavator
XE55DA XCMG Hydraulic Crawler Excavator 5 Ton Mini Farm Garden Diesel Excavator
XE55DA XCMG Hydraulic Crawler Excavator 5 Ton Mini Farm Garden Diesel Excavator
XE55DA XCMG Hydraulic Crawler Excavator 5 Ton Mini Farm Garden Diesel Excavator
XE55DA XCMG Hydraulic Crawler Excavator 5 Ton Mini Farm Garden Diesel Excavator
XE55DA XCMG Hydraulic Crawler Excavator 5 Ton Mini Farm Garden Diesel Excavator
XE55DA XCMG Hydraulic Crawler Excavator 5 Ton Mini Farm Garden Diesel Excavator
Specifications
Brand Name :
XCMG
Model Number :
XE55DA
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs/year
Delivery Time :
Full payment 7-15 work days
Packaging Details :
by Sea/by Bulk/by Frame/Container
Operating weight :
5700Kg
Engine Model :
4TNV94L-BVXG
Bucket capacity :
0.2m3
Rated power/speed :
36.2/2200kw/rpm
Displacement :
3.054L
Travel speed :
4.2/2.2km/h
Rotating speed :
10r/min
Hydraulic tank capacity :
77L
Engine oil capacity :
10L
Description

XCMG Hydraulic Crawler Excavator XE55DA 5 Ton Mini Farm Garden Diesel Excavator


Product Advantages

XCMG Official XE55DA 5 Ton Mini Hydraulic Crawler Excavator.

  • More energy efficient and envionmental potection
Adopt new type environmental protection Yanmar engine which has the features of low speed, large torque, low fuel consump­tion, high operating efficiency, reliability and durability.
  • More reliable and durable
Optimize the design of boom and arm and further strengthen the key positions to make them more wear resisting and secure. Bucket teeth are installed with cross pin, which can effectively prevent the toothed sleeve from falling off and thus can improve the service life.
  • More comfortable and safe
Cab has concise, smooth and elegant appearance, and the rear part of field vision is broader. New type silicon absorber is adopted to greatly reduce the operator' s fatigue due to a long time work and thus improve the working efficiency. Sliding window is added on the right side cab, wind convection will be formed after opening the left and right sliding window, which will also facilitate the communication between the operator and people around both sides of machine.


Product Parameter

Model

Unit

XE55DA

Operating weight(without dozer blade)

Kg

5700

Bucket capacity

m³

0.2

Engine

Engine Model

/

4TNV94L-BVXG

No. of cylinders

/

4

Rated power/speed

kw/rpm

36.2/2200

Maximum torque/speed

N.m

210.6/1260

Displacement

L

3.054

Main performance

Travel speed(H/L)

km/h

4.2/2.2

Rotating speed

r/min

10

Gradeability

°

≤35

Ground pressure

kPa

31

Bucket digging force

kN

48.3

Arm digging force

kN

32.5

Maximum tractive force

kN

50.5

Rated flow of main pump

L/min

149.1

Main safety valve pressure

MPa

24

Travel system pressure

MPa

24

Swing system pressure

MPa

21

Pilot system pressure

MPa

3.5

Oil Capacity

Fuel tank capacity

L

110

Hydraulic tank capacity

L

77

Engine oil capacity

L

10

Appearance size

Overall length

mm

5860

Overall width

mm

1950

Overall height

mm

2585

Width of platform

mm

1780

Track length

mm

1920

Total width of chassis

mm

400

Track gauge

mm

1500

Counterweight clearance

mm

700

ground clearance

mm

385

Working range

Max. digging height

mm

5630

Max. dumping height

mm

3945

Max. digging depth

mm

3830

Max. vertical wall digging depth

mm

2680

Max. digging reach

mm

6130

Min. swing radius

mm

2460

Standard

Length of boom

mm

3000

Length of arm

mm

1600

Bucket capacity

m³

0.2

Detailed Photos

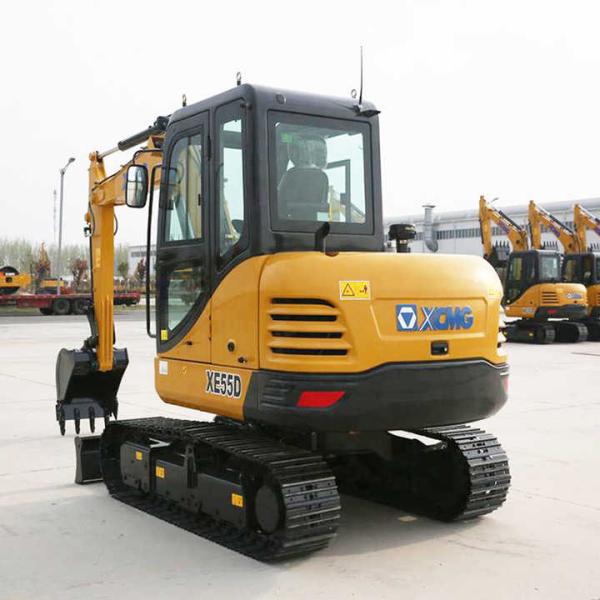

XE55DA XCMG Hydraulic Crawler Excavator 5 Ton Mini Farm Garden Diesel Excavator

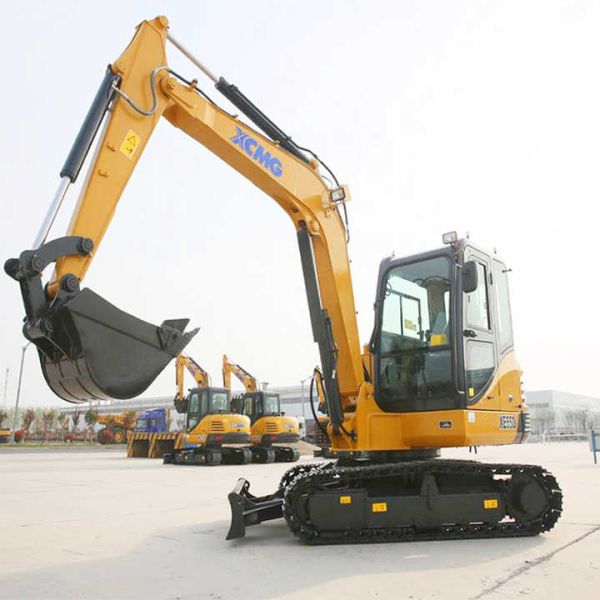

XE55DA XCMG Hydraulic Crawler Excavator 5 Ton Mini Farm Garden Diesel Excavator
