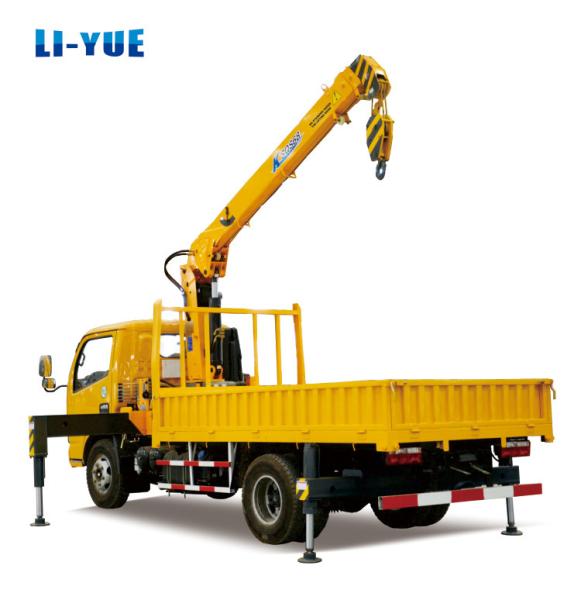

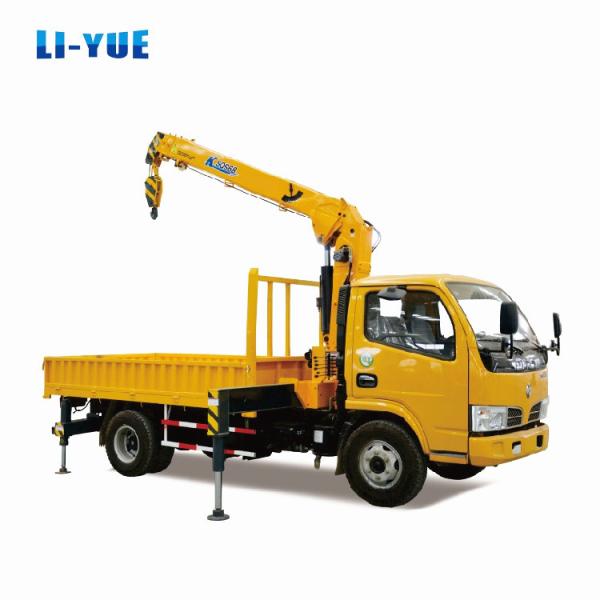

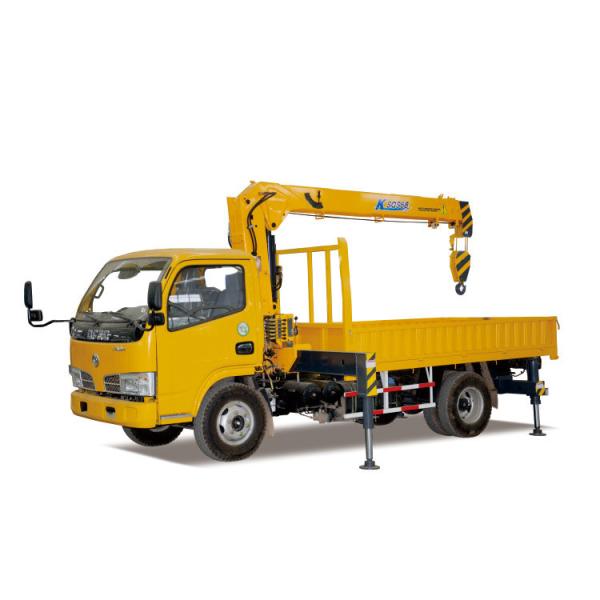

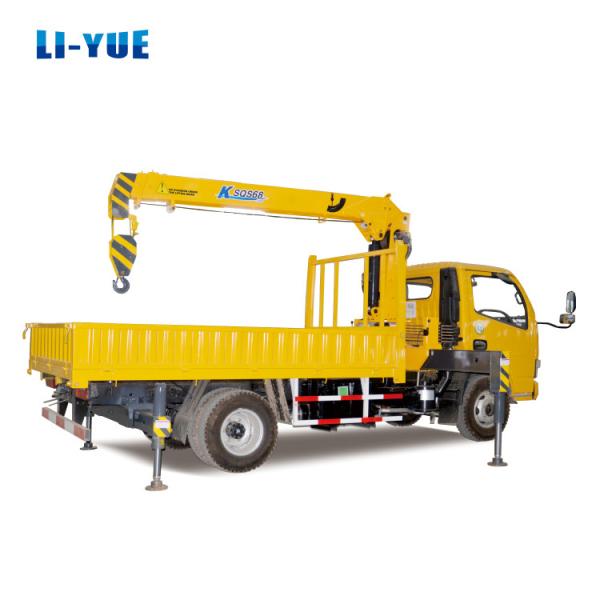

5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump
5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump
5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump
5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump
5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump
5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump
5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump
5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump
5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump
5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump
5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump
5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump
Specifications
Feature :
TRUCK CRANE
Showroom Location :
Indonesia
Condition :
New
Application :
Construction
Rated Loading Capacity :
5 ton
Rated Lifting Moment :
12.5 T.M
Max. Lifting Height :
11.5 m
Span :
2280-5100 mm
Place of Origin :
Henan, China
Brand Name :
LIYUE
Warranty :
1 Year
Hydraulic Cylinder Brand :
MOOG
Hydraulic Pump Brand :
Changjiang
Hydraulic Valve Brand :
Liyuan
Engine Brand :
YUNNEI
UNIQUE SELLING POINT :
High operating efficiency
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
Bearing, Pump
Weight (KG) :
2260 kg
Product name :
Truck Mounted Crane
Crane type :
Truck Crane Mobile Crane Hydraulic Crane
Hydraulic parts :
Famous Brand Hydraulic Parts
Capacity :
5 Ton Truck Crane
Boom type :
Hydraulic Straight Arm
Color :
Customer Requirements
Usage :
Construction Lifting
Rotation Angle :
360 Degree
Installation space :
900 mm
High quality :
Mobile Crane Lifting Capacity
Packaging Details :
Nude packing
Supply Ability :
3000 Unit/Units per Year
Price :
$9,300.00/units 1-2 units
Description

5 Tons Dongfeng Hydraulic Telescopic Boom Truck Mounted Crane Cargo Crane

Product Description

NOTE: The price is for crane part only!

5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump

Project

Unit

Value

Crane Dimension

Crane Model

---

SQ 5T

Max. Lifting Capacity

kg

5000

Max. Lifting Height

m

8.7

Working Radius/ Span

m

2.2-11

Rotation Angle

º

360

Boom Raising Angle Scope

º

0-75

Chassis Truck Data and Weight

Chassis Brand

---

Dongfeng

Overall Dimensions (L*W*H)

mm

9000*2500*3850

Cargo Body Dimensions (L*W*H)

mm

6000*2300*550

Total Mass

kg

15800

Rated Loading

kg

4225

Front and Rear Axle Load

kg

5600/ 10200

Engine Model

---

Cummins

ISD185 50

Engine Powder/ Engine Displacement

HP/ml

185/ 4500

Working Parameter

Gearbox

---

6 Forwards& 1 Reverse

Service Brake

---

Automatically Air-Cut Brake

Power Steering Model

---

Hydraulic sSteering with Power Assistance

The Basic Boom Length

m

3.8-8.7

Diameter of Wire Rope

mm

8

Length of Wire Rope

m

55

Speed of Sing Rope (No Load)

m/min

45

Max. Lines of the Hook

Times

4

Travelling Parameter

Max. Travel Speed

Km/ h

90

Max. Gradeability

%

30

Min. Turning Diameter

m

14.5

Product Description

Product Process

Famous Brand Hydraulic Parts for our Truck Crane

5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump

Prodution Progress

5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump

Packing & Shipping

5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump

Client Visit

5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump

5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump

Certifications

5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump

Optional Device

5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump

Foreign Cases

5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump

Related Products

5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump

customer evaluation

5 Ton Hydraulic Mobile Lorry Crane on Dongfeng Truck with Changjiang Hydraulic Pump
