Specifications
Place of Origin :
Henan, China
Brand Name :
LIYUE
Certification :
ISO9001
Packaging Details :
Nude package.
Supply Ability :
2000 Unit/Units per Year
Price :
$91,000.00/units 1-4 units
Feature :
TRUCK CRANE
Showroom Location :
Thailand
Condition :
New
Application :
Construction
Rated Loading Capacity :
20000kg
Rated Lifting Moment :
520 KN.m
Max. Lifting Height :
34m
Span :
5230/ 6100mm
Warranty :
1 Year
Hydraulic Cylinder Brand :
Liyuan
Hydraulic Pump Brand :
Huade
Hydraulic Valve Brand :
HYDAC
Engine Brand :
FPT
UNIQUE SELLING POINT :
Short turning radius
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
New Product 2019
Warranty of core components :
3 months
Core Components :
Gearbox
Weight (KG) :
8900 kg
Hydraulic parts :
Telescopic Boom Mobile Crane Made
Crane type :
Truck Crane Mobile Crane Hydraulic Crane
Brand :
OEM Service
Tire :
10.00R20
Driving type :
6*4
Boom type :
Hydraulic Straight Arm
Chassis brand :
DongFeng.FAW.Foton.Sino.JAC.IVECO.Shacman
Color :
Customer Requirements
Emission standard :
Euro 1/2/3/4/5
Port :
Qingdao Port/ Tianjin Port
Description
Product Specs

20 Ton Mini Hydraulic Truck Crane DongFeng Chassis Rated Loading Capacity 20000kg

20 Ton Mini Hydraulic Truck Crane Dongfeng Chassis Rated Loading Capacity 20000kg
SPECIFICATIONS FOR 20 TON CRANE TRUCK
Crane Dimension
Model
-
QY 20-5-34
Dimensions (L*W*H)
mm
12535*2500*3400
Outrigger Longitudinal/ Horizontal Span
mm
5230/ 6100
Outriggers Quantity
Pcs
5
Basic Boom Lifting Length
m
10.4-43.2
Main Boom Elevation
º
3-80
Working Parameter
Boom Quantity
Sections
5
Max. Total Lifting Capacity
KG
20000
The Basic Boom Lifting Torque (Max.)
KN.m
520
Max. Lifting Height
m
34
Working Radius
m
3-28
Max. Slewing Speed
r/ min
≤3
T-King/ Dongfeng Chassis Parameter
Total Mass
9805kg
25500
Drive Type
-
6x4
Emission Standard
-
Euro 3/ Euro 5
Engine Power
HP
240
Wheel Base
mm
4425+1350
Travelling Parameter
Max. Travel Speed
Km/ h
75
Min. Turning Diameter
m
20
Approach Angle/ Departure Angle
º
19/12, 13
Fuel Consumption of 100km
L
30
Product Show
20 Ton Mini Hydraulic Truck Crane Dongfeng Chassis Rated Loading Capacity 20000kg
20 Ton Mini Hydraulic Truck Crane Dongfeng Chassis Rated Loading Capacity 20000kg
20 Ton Mini Hydraulic Truck Crane Dongfeng Chassis Rated Loading Capacity 20000kg

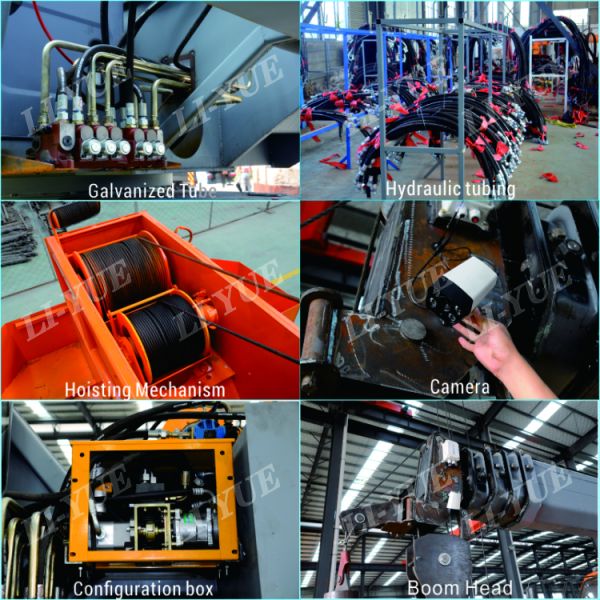

More Details

We use high quality sprare parts to ensure our product quality to meet your requirment.

20 Ton Mini Hydraulic Truck Crane Dongfeng Chassis Rated Loading Capacity 20000kg
Advanced Equipment

Our Advantage:

1- U shaped Boom, using BS700 high-strength plate, lighter weight, stronger stiffness, actively improve lifting performance.

2- Double-winch lifting mechanism, which can operate independently and work simultaneously, and can realize infinitely variable speed change.

3- Streamline upper and lower operation room, spacious, bright, wide field of view, built-in adjustable seat, safe and comfortable.

4- Anti-winding does not rotate wire rope.

5- Hydraulic system uses integrated network, imported raw materials, complete function, better performance.

6- Grilled paint after shot blasting treatment on the surface of structural member, the appearance is bright and beautiful.

7- Plate using laser cutting machine blanking, streamlined appearance, quite beautiful.

8- Equipped with motor, air conditioning, camera users with a variety of options.

20 Ton Mini Hydraulic Truck Crane Dongfeng Chassis Rated Loading Capacity 20000kg

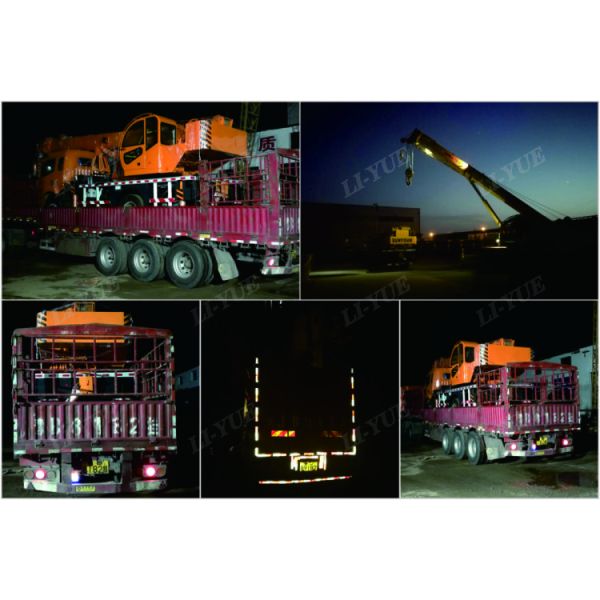

Packing & Delivery

---------------------------------------------Loading in Qingdao Factory---------------------------------------------

The goods are packaged and reinforced by the professional team in port, to make sure the safety during the long journey.

20 Ton Mini Hydraulic Truck Crane Dongfeng Chassis Rated Loading Capacity 20000kg
Customer Visiting

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

20 Ton Mini Hydraulic Truck Crane Dongfeng Chassis Rated Loading Capacity 20000kg
FAQ

A: Are you the manufacturer?
Q: Yes, we are the manufacturer.

A: What kind of truck cranes do you produce?
Q: Truck crane and truck mounted crane from 2.5T to 25T.

A: What kind of truck chassis do you use?
Q: Dongfeng, T-King truck and so on.

A: What are your payment methods?
Q: T/ T, L/ C, West Union, Paypal, Money Gram, Alipay and so on.

A: What is the delivery time?
Q: Within 20 days after we receive the deposit.

A: What's the mode of transportation?
Q: Normally by 40 feet open top containers, flat rack container or bulk vessel.

A: How long is the warranty?
Q: 1 Years warranty service.

A: How long is the history of your factory?
Q: LIYUE has been in producing truck cranes since 1980.
