Air Compressor Vacuum Pump Seal FKM TG Oil Seal 100*120*12mm
Air Compressor Vacuum Pump Seal FKM TG Oil Seal 100*120*12mm
Air Compressor Vacuum Pump Seal FKM TG Oil Seal 100*120*12mm
Air Compressor Vacuum Pump Seal FKM TG Oil Seal 100*120*12mm
Air Compressor Vacuum Pump Seal FKM TG Oil Seal 100*120*12mm
Air Compressor Vacuum Pump Seal FKM TG Oil Seal 100*120*12mm
Air Compressor Vacuum Pump Seal FKM TG Oil Seal 100*120*12mm
Air Compressor Vacuum Pump Seal FKM TG Oil Seal 100*120*12mm
Specifications
Delivery Time :
7day
Price :
negotiable
MOQ :
3
Material :
High-grade steel
Color :
Metallic silver or black coated
Usage :
Suitable for commercial trucks and buses
Function :
Replacement parts for maintenance and repair
Supply Ability :
1000 units per month
Compatibility :
Universal for most truck and bus models
Packaging Details :
Wooden pallet
Place of Origin :
China
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Installation :
Easy to install with standard tools
Durability :
Corrosion-resistant and wear-resistant
Brand Name :
Jechance
Weight :
Varies by part, typically between 0.5kg to 15kg
Description

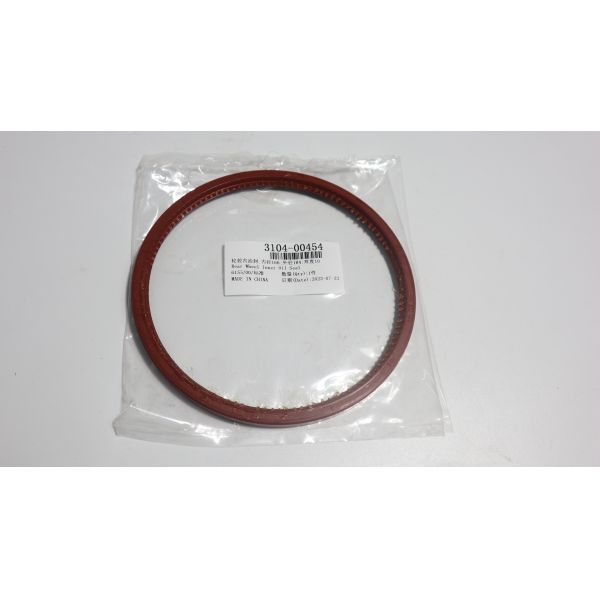

Air Compressor Vacuum Pump Sealing TG Oil Seal 100×120×12mm
This professional TG oil seal is specifically engineered for air compressors and vacuum pumps, featuring a precise 100×120×12mm specification (inner diameter × outer diameter × thickness). As a core sealing component, it ensures reliable performance in demanding industrial applications.
Product Overview
Designed for rotating shaft interfaces in air compressors and vacuum pumps, this oil seal prevents lubricating oil leakage while isolating air, dust, moisture, and corrosive substances from entering the pump body. Its robust construction ensures extended equipment lifespan and reduced maintenance costs.
Key Features
  • Precision Dimensions: TG model with 100×120×12mm standard size
  • Premium Materials: High-quality fluorine rubber (FKM) with metal skeleton
  • Exceptional Performance: High temperature resistance (-40°C to +120°C)
  • Reliable Protection: IP65 dustproof and waterproof rating
  • Easy Installation: Direct replacement without modifications
  • Wide Compatibility: Suitable for King Long, Higer, Zhongtong, Golden Dragon buses and commercial vehicles
Technical Specifications
Attribute Specification
Product Model TG Oil Seal
Dimensions 100×120×12mm (Inner×Outer×Thickness)
Material Fluorine Rubber (FKM) with Metal Skeleton
Temperature Range -40°C to +120°C
Protection Rating IP65 Dustproof/Waterproof
Application Air Compressors & Vacuum Pumps
Compatible Brands King Long, Higer, Zhongtong, Golden Dragon
Installation Guidelines
Step-by-Step Installation:
  1. Turn off equipment power and disconnect relevant parts
  2. Clean rotating shaft and installation interface thoroughly
  3. Apply lubricating oil to seal lip to prevent dry friction
  4. Align new TG oil seal with installation position
  5. Press evenly into place using appropriate tools
  6. Test equipment operation and check for leaks
Important Notes: Ensure correct orientation (seal lip facing oil side), check for damage before installation, and maintain smooth shaft surface (Ra 0.2~0.8μm).
Quality Assurance
Each unit undergoes rigorous factory testing including dimensional accuracy, sealing performance, high-temperature resistance, wear resistance, and oil resistance tests. All products are 100% brand new with complete components and reliable performance.
